CYBERPOWER

CYBERPOWER CP1500PFCLCD UPS CYBERPOWER CP1500PFCLCD PFC UPS

SKU: 9GM314VPN: CP1500PFCLCD

CYBERPOWER CP1500PFCLCD UPS CYBERPOWER CP1500PFCLCD PFC UPS

Key Features

  • Capacity: 1500VA / 1000W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 12 × NEMA 5-15R
  • USB charge ports: 2
  • Communication: USB, Relay, SNMP
  • Data line protection: Network
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

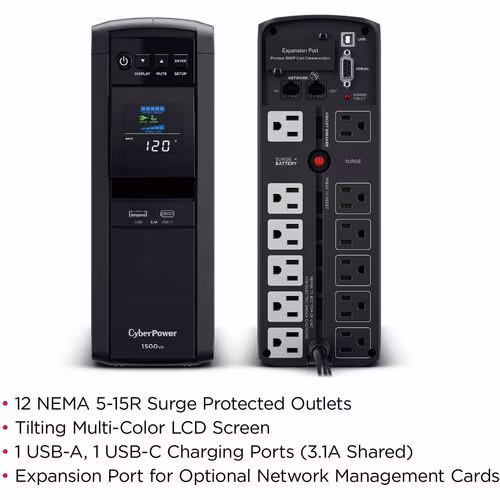

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Tech Specs

CYBERPOWER CP1500PFCLCD UPS CYBERPOWER CP1500PFCLCD PFC UPS specifications
AVRYes
USBYes
AlarmOn Battery
Depth14"
Width3.9"
Height11"
DisplayLCD
EPO PortNo
FeaturesAudible Alarm
Brand NameCyberPower
Cord Length5 ft
Energy StarYes
Show all 70 specs
Form FactorMini-tower
Serial PortYes
Battery Size12V
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCP1500PFCLCD PFC Sinewave UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Technology
Hot SwappableNo
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1500PFCLCD
Transfer Time4 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilyPFC Sinewave UPS
Product SeriesPFC Sinewave UPS
Circuit BreakerYes
Input Frequency50 Hz
Receptacle TypeUSB Type A
Battery Capacity9000 mAh
Output Frequency60 Hz
Package Contents<ul> <li>CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave</li> <li>PowerPanel Personal Edition Software</li> <li>USB Cable</li> <li>User Manual</li> <li>Registration Card</li> <li>Coax Cable</li> </ul>
Battery ChemistryLead Acid
Country of OriginPhilippines
DC System Voltage12 V DC
Receptacle Detail12 x NEMA 5-15R
Software IncludedPowerPanel® Business
Status Indicators<ul> <li>Power On</li> <li>Wiring Fault</li> </ul>
Load Capacity (VA)1500 VA
Network ManagementDry Contact
Dataline ProtectionRJ-45
Input Voltage Range88 V AC - 144 V AC
Number of Batteries2
Output Power Factor0.7
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1445 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)1000 W
Weight (Approximate)24.90 lb
Additional Information<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : No</li><li>Replacement Battery Cartridge : RB1290X2 (for serial numbers beginning with CXX)</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 2.5 min</li><li>Runtime at Half Load : 10 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.9 x 11.0 x 14.0 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)</li><li>Weight (kg) : 11.29</li><li>Weight (lb) : 24.9</li><li>Shipping Dimensions - (WxHxD) (cm) : 19.69 x 36.83 x 44.45 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 7.75 x 14.5 x 17.5 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 196.85 x 368.3 x 444.5 (mm)</li><li>Shipping - Weight (kg) : 12.7</li><li>Shipping - Weight (lb) : 28.0</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 5 ft (1.5 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 6</li><li>Outlets - Surge-Only Protected : 6</li><li>Outlets - Total : 12</li><li>Outlets - Widely Spaced : 2</li><li>Outlet Type COMPUTED : 12 - NEMA 5-15R</li><li>Output Power Factor : 0.7</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +11.5%</li><li>USB Charge Port : Yes</li><li>USB Charge Port Amperage : 3.1 Amps (Shared)</li><li>USB Charge Port Quantity : 2</li><li>USB Charge Port Standard : Type A</li><li>USB Charge Port Type COMPUTED : 1 Type A</li><li>VA : 1500 VA</li><li>Watts : 1000 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1445 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1445 J</li><li>Audible Alarms : Battery Mode</li><li>Emergency Power Off (EPO) Port : No</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $500000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1500PFCLCD
USB (HID Compliant) PortYes
Certifications & Standards<ul><li>UL1778</li><li>cUL 107.3</li><li>FCC DOC Class B</li></ul>
Backup/Run Time (Full Load)2.50 Minute
Backup/Run Time (Half Load)10 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets6
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets6
