CYBERPOWER

STANDBY UPS 625VA/360W COMPACT 120V 8OUT 5FT CORD 3YR WARRANTY

SKU: 9GM065VPN: ST625U

STANDBY UPS 625VA/360W COMPACT 120V 8OUT 5FT CORD 3YR WARRANTY

Key Features

  • Capacity: 625 VA / 360 W
  • Topology: Standby
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 8 × NEMA 5-15R
  • Communication ports: USB
  • Management software: PowerPanel® Personal
  • ENERGY STAR® qualified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $100,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The CyberPower ST625U uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to power connected electronics through utility power failure and enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable electronics during longer outages.

The ST625U has two USB charging ports with 2.1 amp shared total output which gives you a faster charging time. This unit is designed to minimize noise for a quieter work environment and to run efficiently to reduce power consumption. Including a sleek design, this UPS is perfect for all your home office and entertainment needs, including computers, gaming consoles, and broadband routers.

With a $100,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of this Battery Backup with Surge Protection.

Tech Specs

STANDBY UPS 625VA/360W COMPACT 120V 8OUT 5FT CORD 3YR WARRANTY specifications
USBYes
AlarmBattery Mode

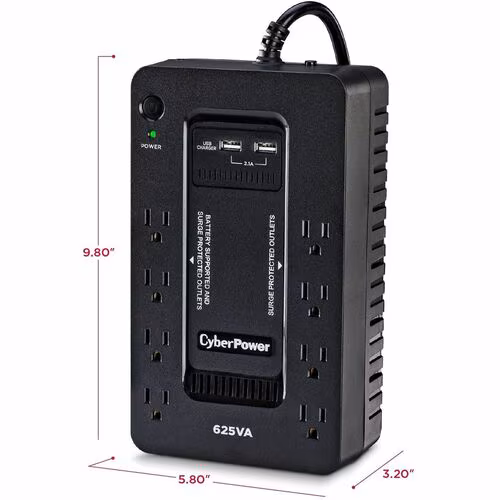

Depth3.2"
Width9.8"
Height5.8"
FeaturesAudible Alarm
Brand NameCyberPower
Cord Length5 ft
Energy StarYes
Form FactorCompact
Battery Size12V
Color FamilyBlack
Show all 65 specs
ManufacturerCyberPower Systems, Inc
Product NameST625U Standby UPS Systems
Product TypeStandby UPS
Energy SavingGreenPower UPS™ High-Efficiency
Hot SwappableNo
Input Voltage120 V AC
Product ColorBlack
Product ModelST625U
Transfer Time8 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilyStandby UPS
Product SeriesStandby UPS
Circuit BreakerYes
Input Frequency60 Hz
Receptacle TypeUSB Type A
Battery Capacity5500 mAh
Output Frequency50 Hz
Package Contents<ul> <li>Standby ST900U 900VA Compact UPS</li> <li>User Manual</li> <li>USB A+B Type Cable</li> </ul>
Application/UsageRouter
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail8 x NEMA 5-15R
Status IndicatorsLED Indicators: Power On
Surge SuppressionYes
Load Capacity (VA)625 VA
Input Voltage Range96 V AC - 140 V AC
Number of Batteries1
Output Power Factor0.6
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryNo
Surge Energy Rating890 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)360 W
Weight (Approximate)5 lb
Additional Information<li>Energy Saving : GreenPower UPS™ High-Efficiency</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Standby</li><li>Battery Quantity : 1</li><li>Battery Size : 12 V / 5.5 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Field-serviceable Battery : Replaceable by qualified technician</li><li>Hot Swappable : No</li><li>Runtime at Full Load : 2 min</li><li>Runtime at Half Load : 9 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : No</li><li>Physical Dimensions - (WxHxD) (cm) : 24.89 x 14.73 x 8.13 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 9.8 x 5.8 x 3.2 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 249 x 147 x 81 (mm)</li><li>Weight (kg) : 2.27</li><li>Weight (lb) : 5</li><li>Shipping Dimensions - (WxHxD) (cm) : 36.2 x 11.43 x 20.32 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 14.25 x 4.5 x 8.0 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 361.95 x 114.3 x 203.2 (mm)</li><li>Shipping - Weight (kg) : 6.82</li><li>Shipping - Weight (lb) : 15.04</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 5 ft (1.5 m)</li><li>Input Frequency Range : 47 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Nominal Input Voltage : 120 VAC</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 50/60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 4</li><li>Outlets - Surge-Only Protected : 4</li><li>Outlets - Total : 8</li><li>Outlets - Widely Spaced : 4</li><li>Outlet Type COMPUTED : 8 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 8 ms</li><li>USB Charge Port : Yes</li><li>USB Charge Port Amperage : 2.1 Amps (Shared)</li><li>USB Charge Port Quantity : 2</li><li>USB Charge Port Standard : Type A</li><li>USB Charge Port Type COMPUTED : 2 Type A</li><li>USB Charge Port Voltage COMPUTED : 5 VDC</li><li>VA : 625 VA</li><li>Watts : 360 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 890 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 890 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Compact</li><li>Keyhole Mounting Slots : Yes</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $100000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U1A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberST625U
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & StandardsUL1778
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)9 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets4
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets4
