CYBERPOWER

CYBERPOWER CP1350PFCLCD UPS CYBERPOWER CP1350PFCLCD PFC UPS

SKU: 9GM283VPN: CP1350PFCLCD

CYBERPOWER CP1350PFCLCD UPS CYBERPOWER CP1350PFCLCD PFC UPS

Key Features

  • Capacity: 1350VA / 880W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 12 × NEMA 5-15R
  • Communication: USB, Relay
  • Data line protection: Network
  • Management software: PowerPanel® Personal
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $425,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP135PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

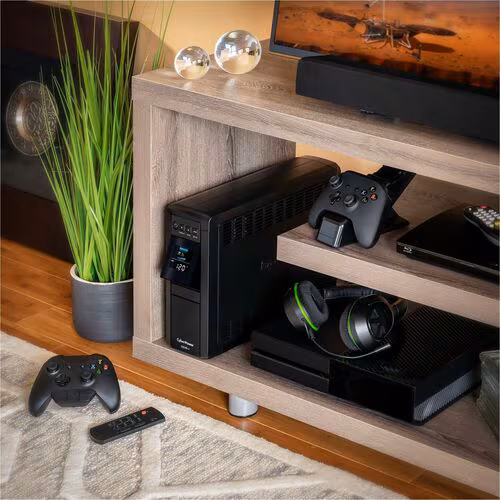

The CP1350PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.

The CP1350PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350PFCLCD comes with a three-year warranty (including coverage of batteries) and a $425,000 Connected Equipment Guarantee.

Tech Specs

CYBERPOWER CP1350PFCLCD UPS CYBERPOWER CP1350PFCLCD PFC UPS specifications
AVRYes
USBYes
AlarmBattery Mode
Depth14"
Width3.9"
Height11"
DisplayLCD
FeaturesAudible Alarm
Brand NameCyberPower
Cord Length5 ft
Energy StarYes
Form FactorMini-tower
Show all 73 specs
Serial PortYes
Battery Size12V
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCP1350PFCLCD PFC Sinewave UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Technology
Hot SwappableNo
Input Voltage120 V AC
Modem (RJ-11)Yes
Product ColorBlack
Product ModelCP1350PFCLCD
Transfer Time4 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilyPFC Sinewave UPS
Product SeriesPFC Sinewave UPS
Circuit BreakerYes
Input Frequency50 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 5-15R
Battery Capacity7000 mAh
Output Frequency60 Hz
Package Contents<ul><li>PFC Sinewave CP1350PFCLCD 1350VA Mini-Tower UPS</li><li>PowerPanel Personal Edition Software CD</li><li>Phone/Network Cable</li><li>Coax Cable</li></ul>
Application/UsageNetwork Device
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail12 x NEMA 5-15R
Software IncludedPowerPanel® Personal
Status Indicators<b>LED Indicators:</b><br><ul><li>Power On</li><li>Wiring Fault</li></ul>
Surge SuppressionYes
Load Capacity (VA)1350 VA
Network ManagementSNMP/HTTP Remote Monitoring
Dataline ProtectionRJ-45
Emergency Power OFFNo
Input Voltage Range88 V AC - 144 V AC
Number of Batteries2
Output Power Factor0.7
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1445 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)880 W
Weight (Approximate)22.71 lb
Additional Information<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 7 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : No</li><li>Replacement Battery Cartridge : RB1270X2C (for serial numbers beginning with CXY)</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 2 min</li><li>Runtime at Half Load : 8 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.9 x 11.0 x 14.0 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)</li><li>Weight (kg) : 10.3</li><li>Weight (lb) : 22.7</li><li>Shipping Dimensions - (WxHxD) (cm) : 19.69 x 36.83 x 45.09 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 7.75 x 14.5 x 17.75 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 196.85 x 368.3 x 450.85 (mm)</li><li>Shipping - Weight (kg) : 11.16</li><li>Shipping - Weight (lb) : 24.6</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 5 ft (1.5 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 6</li><li>Outlets - Surge-Only Protected : 6</li><li>Outlets - Total : 12</li><li>Outlets - Widely Spaced : 2</li><li>Outlet Type COMPUTED : 12 - NEMA 5-15R</li><li>Output Power Factor : 0.7</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +11.5%</li><li>USB Charge Port : No</li><li>VA : 1350 VA</li><li>Watts : 880 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1445 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1445 J</li><li>Audible Alarms : Battery Mode</li><li>Dry Contacts : Yes</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $425000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1350PFCLCD
USB (HID Compliant) PortYes
Certifications & Standards<ul><li>UL1778</li><li>cUL 107.3</li><li>FCC DOC Class B</li></ul>
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)8 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets6
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets6
