CYBERPOWER

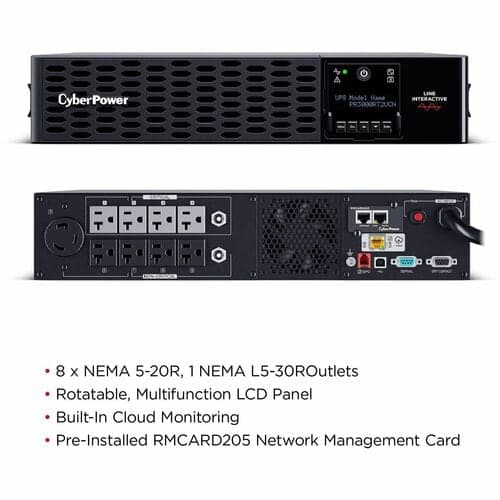

3000VA/3000W SINE WAVE UPS 2U 8XNEMA 5-20R + 1XNEMA L5-30R

SKU: JG7946VPN: PR3000RT2UCN

3000VA/3000W SINE WAVE UPS 2U 8XNEMA 5-20R + 1XNEMA L5-30R

Key Features

  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-120 VAC ± 5%
  • Runtime (half/full): 5.5 minutes / 1.5 minutes
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlets: 9 surge + battery backup

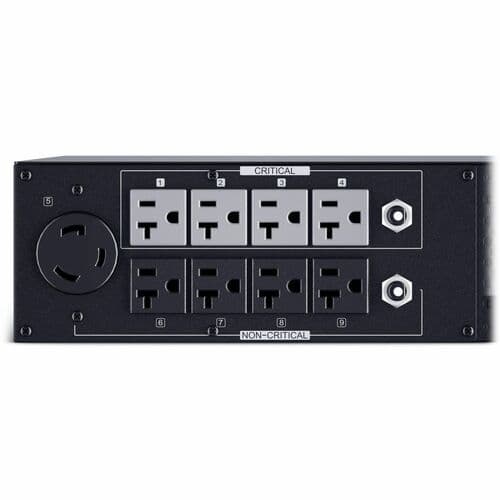

  • Outlet types: 8 × NEMA 5-20R; 1 x NEMA L5-30R

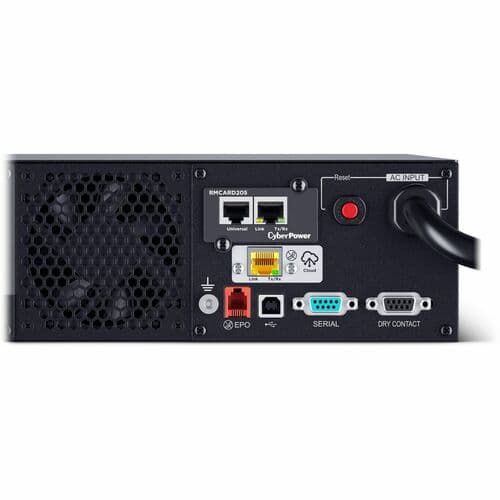

  • Communication: USB, Serial, SNMP, Relay, EPO
  • Management software: PowerPanel® Business
  • Remote management: Yes, pre-installed RMCARD205 and built-in cloud monitoring
  • Warranty: 3 year
  • Connected Equipment Guarantee: $400,000
  • ENERGY STAR® certified: Yes
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The PR3000RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

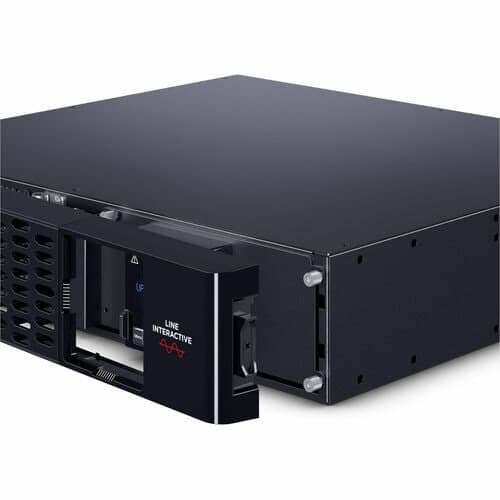

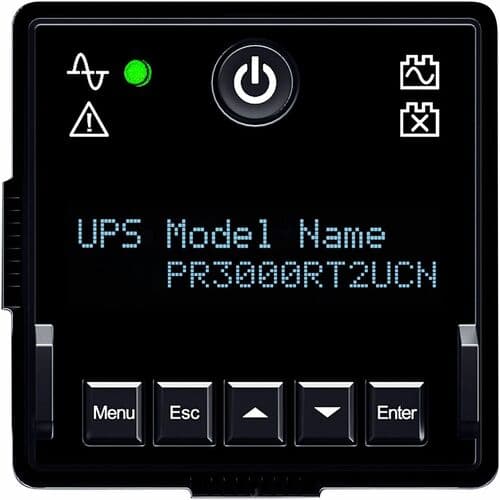

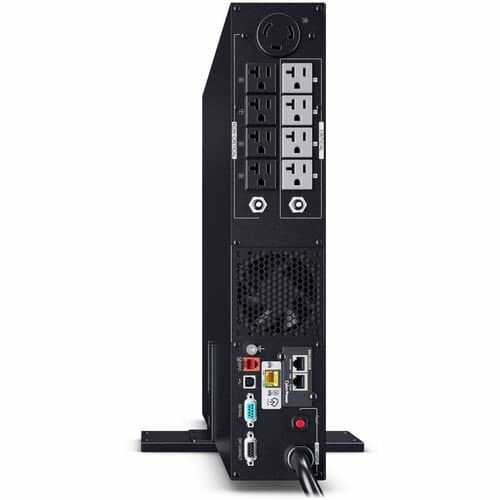

The Smart App Sinewave PR3000RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RT2UCN.

Tech Specs

3000VA/3000W SINE WAVE UPS 2U 8XNEMA 5-20R + 1XNEMA L5-30R specifications
AVRYes
USBYes
AlarmBattery Mode
Depth19.7"
Width22"
Height10.8"
Length24.5"
DisplayLCD
EPO PortYes
Brand NameCyberPower
Cord Length10 ft
Energy StarYes
Show all 68 specs

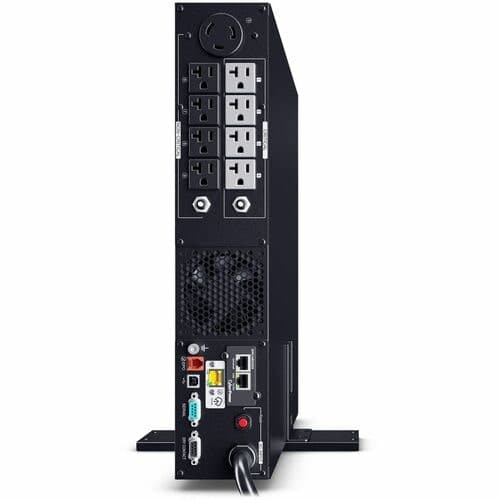

Form FactorTower/Rack Convertible
Rack Height2U
Serial PortYes
Battery Size12V
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product LineSmart App Sinewave
Product NamePR3000RT2UCN Smart App Sinewave UPS Systems
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelPR3000RT2UCN
Transfer Time4 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilySmart App Sinewave
Circuit BreakerYes
Input Frequency63 Hz
Receptacle TypeNEMA 5-20R
Battery Capacity9000 mAh
Output Frequency60 Hz
Battery ChemistryLead Acid
Receptacle Detail1 x NEMA L5-30R
Status Indicators<p><b>LED Indicators:</b> </p><ul><li> Power On</li></ul>
Load Capacity (VA)3000 VA
Network ManagementNetwork Card
Input Voltage Range70 V AC - 155 V AC
Number of Batteries4
Output Power Factor1
Overload ProtectionYes
Plug/Connector TypeNEMA L5-30P
Replaceable BatteryYes
Surge Energy Rating2430 J
Thermal Dissipation56.42 W
EMI/RFI Noise FilterYes
Load Capacity (Watt)3000 W
Weight (Approximate)84.20 lb
Additional Information<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 4</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X4J</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 1.5 min</li><li>Runtime at Half Load : 5.5 min</li><li>Typical Recharge Time : 3 Hours (0% to 90% charged)</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm)</li><li>Weight (kg) : 34.7</li><li>Weight (lb) : 76.5</li><li>Shipping Dimensions - (WxHxD) (cm) : 55.88 x 27.31 x 62.23 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 22 x 10.75 x 24.5 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 558.8 x 273.05 x 622.3 (mm)</li><li>Shipping - Weight (kg) : 38.19</li><li>Shipping - Weight (lb) : 84.2</li><li>Adjustable Voltage Range : 70 - 155 VAC</li><li>Circuit Breaker : 30 A</li><li>Cord Length : 10 ft (3.0 m)</li><li>Input Frequency Range : 47 Hz - 63 Hz</li><li>Input Plug Type : NEMA L5-30P</li><li>Input Voltage : 100 - 120 VAC</li><li>Input Voltage Range : 75 VAC - 149 VAC</li><li>Nominal Input Voltage : 100 - 120 VAC</li><li>Plug Style : Straight (Twist Lock)</li><li>Automatic Voltage Regulation : Double Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 50/60 Hz ± 1%</li><li>On Battery Voltage : 100/110/120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 9</li><li>Outlets - Critical Load : 4</li><li>Outlets - Total : 9</li><li>Outlet Type COMPUTED : 8 - NEMA 5-20R</li><li>Output Power Factor : 1</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 6ms; Max 13ms at normal sensitivity</li><li>USB Charge Port : No</li><li>VA : 3000 VA</li><li>Watts : 3000 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 2430 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 2430 J</li><li>Audible Alarms : Battery Mode</li><li>Emergency Power Off (EPO) Port : Yes</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Serial</li><li>SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Rack / Tower</li><li>Material of Construction : Metal</li><li>Rack Height : 2U</li><li>Audible noise at 1m from surface of unit : 57.5 dBA</li><li>Online Thermal Dissipation : 192.5 BTU/hr</li><li>Operating Elevation : 0 - 9843 ft (0 - 3000 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 49213 ft (0 - 14999 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $400000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U4B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberPR3000RT2UCN
USB (HID Compliant) PortYes
Maximum Storage Elevation49209.32 ft
Backup/Run Time (Full Load)1.50 Minute
Backup/Run Time (Half Load)5.50 Minute
Maximum Operating Elevation9842.52 ft
Sound Emission (A-Weighted)57.5 dB(A)
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time3 Hour
Additional Warranty Information<ul><li> Connected Equipment Guarantee: Lifetime</li><li> Connected Equipment Guarantee: $400,000</li></ul>
Number of Critical Load Outlets4
Number of Battery & Surge Outlets9
