2070VA UPS SMART APP LCD AVR SINEWAVE 7 OUT 20A TOWER 3YR WARR

SKU: 9GM307VPN: PR2200LCDSL

Out of Stock

$1,100.00$928.07

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Capacity: 2070 VA / 1980 W
Topology: Line Interactive
Waveform: Sine Wave
Output: 120 VAC ± 5%
Plug type & cord: NEMA 5-20P (straight), 10 ft

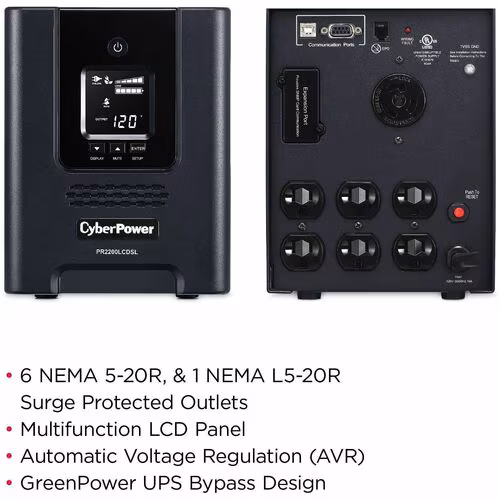

Outlet types: 6 × NEMA 5-20R, 1 × NEMA L5-20R
Communication: USB, Serial, SNMP, Relay, EPO
Management software: PowerPanel® Business
ENERGY STAR® certified: Yes
Remote management: Yes, with optional RMCARD205
Warranty: 3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

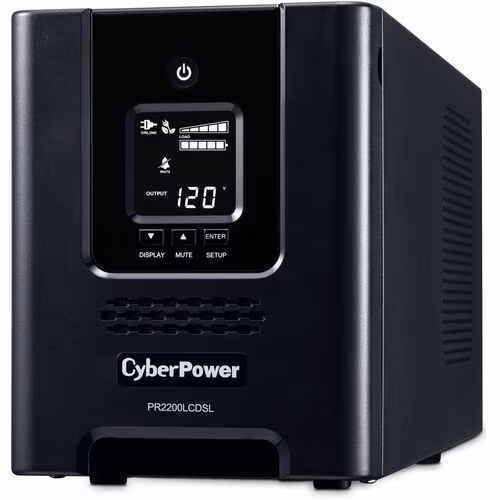

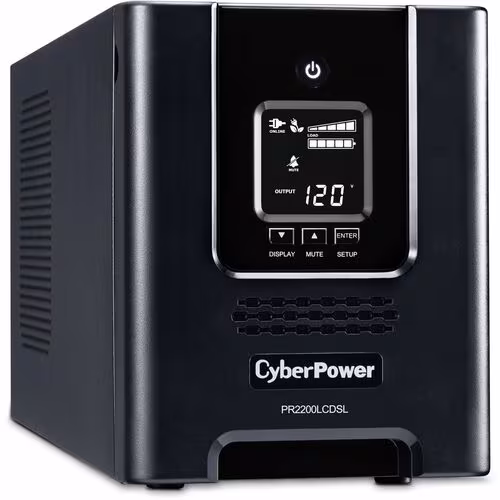

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR2200LCDSL provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR2200LCDSL uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently The PR2200LCDSL comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.

Tech Specs

2070VA UPS SMART APP LCD AVR SINEWAVE 7 OUT 20A TOWER 3YR WARR specifications
AVR	Yes
USB	Yes
Alarm	Low Battery

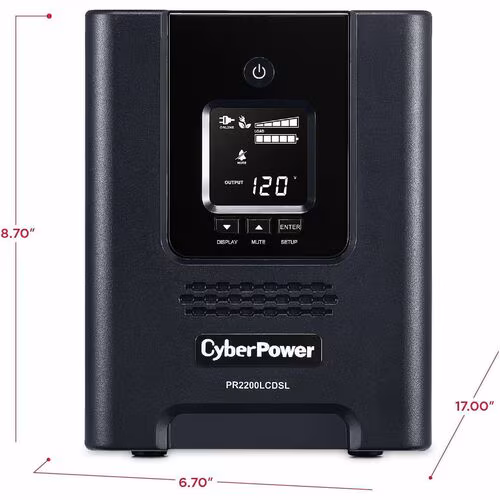

Depth	17"
Width	6.7"
Height	8.7"
Brand Name	CyberPower
Energy Star	Yes
Form Factor	Tower
Serial Port	Yes
Manufacturer	CyberPower Systems, Inc
Product Name	PR2200LCDSL Smart App Sinewave UPS Systems

Show all 41 specs

Product Type	Line-interactive UPS
Input Voltage	120 V AC
Product Model	PR2200LCDSL
Waveform Type	Sine Wave
Output Voltage	120 V AC
Product Family	Smart App Sinewave UPS
Product Series	Smart App Sinewave UPS
Receptacle Type	NEMA 5-20R
Package Contents	<ul><li>Smart App Sinewave PR2200LCDSL 2070VA Pure Sine Wave Tower LCD UPS</li><li>PowerPanel Business Edition Software CD</li><li>User Manual</li><li>Functional Setup Guide</li><li>USB Cable</li><li>Serial Cable</li><li>Emergency Power Off (EPO) Cable</li><li>Registration Card</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	Philippines
Receptacle Detail	6 x NEMA 5-20R
Software Included	PowerPanel Business Edition Software
Status Indicators	Power On
Load Capacity (VA)	2070 VA
Network Management	SNMP/HTTP Remote Monitoring
Number of Batteries	4
Plug/Connector Type	NEMA 5-20P
Weight (Approximate)	51.90 lb
Additional Information	<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 4</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X4K</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 3.3 min</li><li>Runtime at Half Load : 10.2 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 17.02 x 22.1 x 43.18 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 6.7 x 8.7 x 17 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 170 x 221 x 432 (mm)</li><li>Weight (kg) : 23.54</li><li>Weight (lb) : 51.9</li><li>Shipping Dimensions - (WxHxD) (cm) : 31.75 x 35.56 x 57.79 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 12.5 x 14.0 x 22.75 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 317.5 x 355.6 x 577.85 (mm)</li><li>Shipping - Weight (kg) : 25.22</li><li>Shipping - Weight (lb) : 55.60</li><li>Circuit Breaker : 20 A</li><li>Cord Length : 10 ft (3.0 m)</li><li>Input Frequency Range : 47 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-20P</li><li>Input Voltage Range : 75 VAC - 154 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Straight</li><li>Automatic Voltage Regulation : Double Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 7</li><li>Outlets - Total : 7</li><li>Outlet Type COMPUTED : 1 - NEMA L5-20R</li><li>Output Power Factor : 1</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 10 ms</li><li>Under/Over-Voltage Correction : +30%</li><li>USB Charge Port : No</li><li>VA : 2070 VA</li><li>Watts : 1980 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 1030 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 1030 J</li><li>Audible Alarms : Battery Mode</li><li>Emergency Power Off (EPO) Port : Yes</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Serial</li><li>SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Metal</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778 4th Ed.</li><li>CEG Amount : $375000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U4B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery Characteristics	Maintenance-free
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PR2200LCDSL
Certifications & Standards	<ul><li>UL1778 4th</li><li>cUL</li><li>CSA C22.2 No 107.3-05</li><li>FCC DOC Class A</li></ul>
Backup/Run Time (Full Load)	3.30 Minute
Backup/Run Time (Half Load)	10.20 Minute
Manufacturer Website Address	https://www.cyberpowersystems.com/
Typical Battery Recharge Time	8 Hour
