2000VA PFC UPS PURE SINEWAVE 2U 8OUT 20A LCD AVR RJ11/45/COAX 3YR

SKU: 9GM083VPN: OR2200PFCRT2U

In Stock

$740.08

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Capacity: 2000 VA / 1540 W
Topology: Line Interactive
Waveform: Sine Wave
Plug type & cord: NEMA 5-20P, 10 ft. cord
Outlet types: 2 × NEMA 5-20R, 6 × NEMA 5-15R
Communication: USB, Serial, EPO
Data line protection: Telephone, Ethernet
Management software: PowerPanel® Business Edition
Warranty: 3 year
Connected Equipment Guarantee: $300,000

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

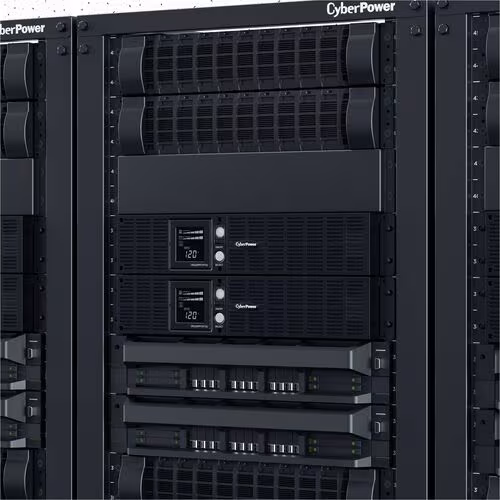

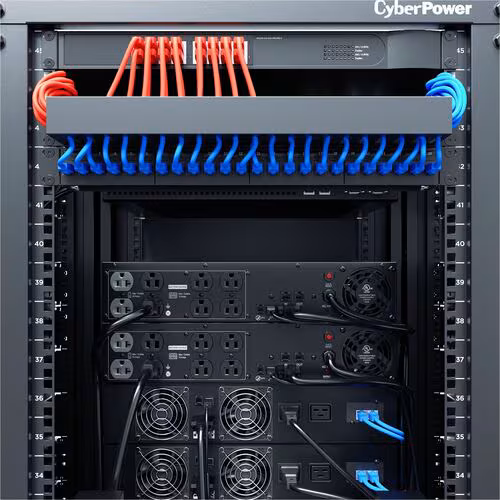

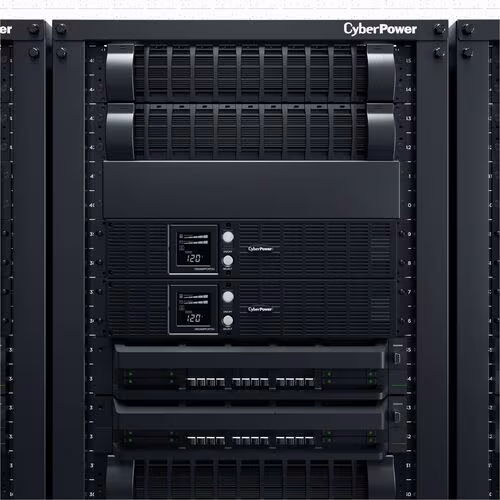

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Tech Specs

2000VA PFC UPS PURE SINEWAVE 2U 8OUT 20A LCD AVR RJ11/45/COAX 3YR specifications
USB	Yes
Depth	15.3"
Width	17"
Height	3.5"
Brand Name	CyberPower
Energy Star	No
Form Factor	Rack/Tower
Rack Height	2U
Serial Port	Yes
Manufacturer	CyberPower Systems, Inc
Product Name	OR2200PFCRT2U PFC Sinewave UPS Systems
Product Type	Line-interactive UPS

Show all 46 specs

Hot Swappable	Yes
Input Voltage	110 V AC
Product Model	OR2200PFCRT2U
Transfer Time	4 ms
Waveform Type	Sine Wave
Output Voltage	120 V AC
Product Family	PFC Sinewave UPS
Product Series	PFC Sinewave UPS
Protection Type	Over Loading
Receptacle Type	NEMA 5-20R
Package Contents	<ul> <li>Intelligent LCD PFC Sinewave OR2200PFCRT2U Line-interactive UPS</li> <li>USB A-B Cable</li> <li>User's Manual</li> <li>Software Download Card</li> <li>Registration Info Card</li> </ul>
Battery Chemistry	Lead Acid
Country of Origin	China
Receptacle Detail	6 x NEMA 5-15R
Software Included	PowerPanel Business Edition Software
Status Indicators	<ul> <li>Power On</li> <li>Wiring Fault</li> </ul>
Load Capacity (VA)	2000 VA
Dataline Protection	RJ-45
Emergency Power OFF	Yes
Number of Batteries	4
Plug/Connector Type	NEMA 5-20P
EMI/RFI Noise Filter	Yes
Load Capacity (Watt)	1540 W
Weight (Approximate)	57.20 lb
Additional Information	<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 4</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Battery Voltage : 24 VDC</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X4H (With serial numbers beginning with 'GX9')</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 4.5 min</li><li>Runtime at Half Load : 15.5 min</li><li>Typical Recharge Time : 10 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 43.21 x 8.89 x 38.91 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.01 x 3.5 x 15.32 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 432 x 89 x 389 (mm)</li><li>Weight (kg) : 25.95</li><li>Weight (lb) : 57.2</li><li>Shipping Dimensions - (WxHxD) (cm) : 52.07 x 30.48 x 53.98 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 20.5 x 12.0 x 21.25 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 520.7 x 304.8 x 539.75 (mm)</li><li>Shipping - Weight (kg) : 9.64</li><li>Shipping - Weight (lb) : 21.25</li><li>Adjustable Voltage Range : 86 - 142 VAC</li><li>Circuit Breaker : 20 A</li><li>Cord Length : 10 ft (3.0 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-20P</li><li>Input Voltage Range : 88 VAC - 139 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 8</li><li>Outlets - Total : 8</li><li>Outlet Type COMPUTED : 2 - NEMA 5-20R</li><li>Output Power Factor : 0.8</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +14%</li><li>USB Charge Port : No</li><li>VA : 2000 VA</li><li>Watts : 1540 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)</li><li>Surge Suppression (Joules) : 1470 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)</li><li>Surge Suppression (Joules) : 1470 J</li><li>Audible Alarms : Battery Mode</li><li>Emergency Power Off (EPO) Port : Yes</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Remote Management Card : None</li><li>Serial Port : 1 Serial</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Rack / Tower</li><li>Material of Construction : Metal</li><li>Rack Height : 2U</li><li>Audible noise at 1.5M from surface of unit : 48.5 dBA</li><li>On Battery Thermal Dissipation : 1278 BTU/hr</li><li>Online Thermal Dissipation : 177.5 BTU/hr</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778 5th Ed.</li><li>CEG Amount : $300000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U4B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery Characteristics	Maintenance-free
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	OR2200PFCRT2U
Certifications & Standards	<ul> <li>UL 1778 5th Ed</li> <li>cUL</li> <li>FCC Class A</li> </ul>

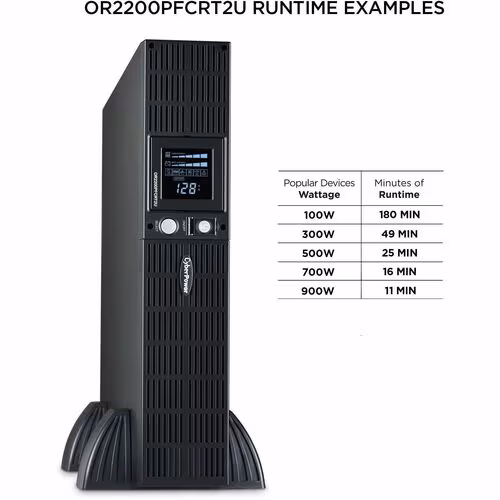

Backup/Run Time (Full Load)	4.50 Minute
Backup/Run Time (Half Load)	19.80 Minute
Manufacturer Website Address	https://www.cyberpowersystems.com/
Typical Battery Recharge Time	10 Hour
