1KVA ONLINE UPS 2U SINE LCD 5-15P 100-125V RMCARD205 RT 3YR WTY

SKU: 9GM231VPN: OL1000RTXL2UN

Out of Stock

$1,198.40

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Capacity: 1000 VA / 900 W
Power Factor (PF): 0.9
Topology: Double-Conversion
Waveform: Sine Wave
Output: 100, 110, 115, 120, 125 V ± 2% (configurable)
Plug type & cord: NEMA 5-15P, 10 ft. cord
Outlet types: 8 × NEMA 5-15R
Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
Data line surge protection: Telephone, Network
Management software: PowerPanel® Business Edition
Warranty: 3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

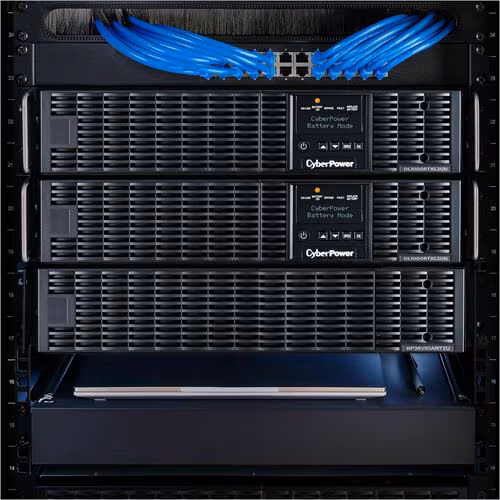

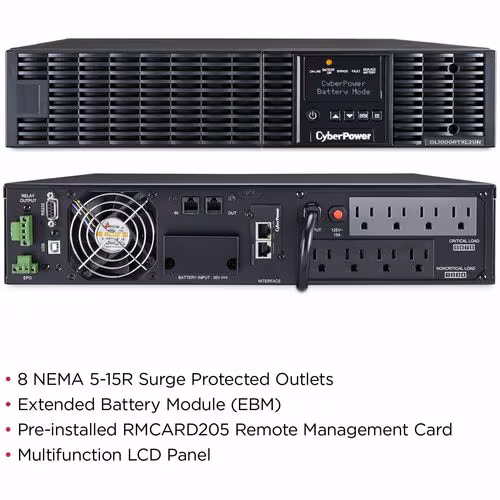

The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Tech Specs

1KVA ONLINE UPS 2U SINE LCD 5-15P 100-125V RMCARD205 RT 3YR WTY specifications
USB	Yes
Alarm	Battery Mode
Depth	16.9"
Width	17"
Height	3.5"
Display	LCD
EPO Port	Yes
Brand Name	CyberPower
Cord Length	10 ft
Energy Star	Yes
Form Factor	Rack/Tower
Rack Height	2U

Show all 72 specs

Serial Port	Yes
Battery Size	12V
Color Family	Black
Crest Factor	3:1
Manufacturer	CyberPower Systems, Inc
Product Name	OL1000RTXL2UN Smart App Online UPS Systems
Product Type	Double Conversion Online UPS
Energy Saving	ECO Mode Efficiency >94%
Input Voltage	230 V AC
Product Color	Black
Product Model	OL1000RTXL2UN
Transfer Time	0 ns
Waveform Type	Sine Wave
Output Voltage	100 V AC
Product Family	Smart App Online UPS
Product Series	Smart App Online UPS
Input Frequency	40 Hz
Network (RJ-45)	Yes
Protection Type	Short Circuit
Receptacle Type	NEMA 5-15R
Battery Capacity	9000 mAh
Output Frequency	60 Hz
Package Contents	<ul> <li>Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual</li> <li>Registration Card</li> <li>2 x Rackmount Rails</li> <li>2 x Rackmount Ears</li> <li>2 x Hanging Brackets</li> <li>Phone Line</li> <li>Usb Communication Cable</li> <li>Serial Interface Cable (RS-232)</li> <li>8 x M5x7l Black Flat Head Screws</li> <li>12 x M5x12l Black Pan Head Screws</li> <li>6 x M5x6l Silver Pan Head Screws</li> <li>8 x Plastic Washers</li> <li>12 x Screw Hole Dust Covers</li> <li>12 x Rubber Pads</li> <li>And A Software Download Card</li> </ul>
Application/Usage	Generator
Battery Chemistry	Lead Acid
Country of Origin	Taiwan
Receptacle Detail	8 x NEMA 5-15R
Software Included	PowerPanel® Business
Status Indicators	<p><b>LED Indicators:</b></p> <ul> <li>Power On (White)</li> <li>Line Mode (Green)</li> <li>Battery Mode (Yellow)</li> <li>Bypass Mode (Yellow)</li> <li>Fault (Red)</li> <li>Replace Battery (Red)</li> </ul>
Input Power Factor	0.99
Load Capacity (VA)	1000 VA
Network Management	Dry Contact
Dataline Protection	RJ-45
Input Voltage Range	100 V AC - 125 V AC
Number of Batteries	3
Output Power Factor	0.9
Overload Protection	Yes
Plug/Connector Type	NEMA 5-15P
Replaceable Battery	Yes
Surge Energy Rating	1780 J
Thermal Dissipation	80.30 W
EMI/RFI Noise Filter	Yes
Load Capacity (Watt)	900 W
Weight (Approximate)	39.60 lb
Additional Information	<ul> <li>Replacement Battery Cartridge Quantity: 1</li> <li>Smart Battery Management (SBM) Mode: Yes</li> <li>Circuit Breaker: 15A</li> <li>Cold Start: Yes</li> <li>Input Power Factor: 0.99</li> <li>Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load</li> <li>Crest Factor: 3:1</li> <li>ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)</li> <li>Harmonic Distortion: < 3% at Linear Load</li> <li>On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)</li> <li>Output Power Factor: 0.9</li> <li>Overload Protection: Line Mode: 105% ~ 125% Load - 1 min</li> <li>Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection</li> <li>Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)</li> <li>Dry Contacts: Yes</li> <li>Expansion Slot: Yes - RMCARD205 pre-installed</li> <li>LCD: Multifunction LCD</li> <li>Management Cable: USB Cable</li> <li>Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)</li> <li>Rotatable LCD Control Panel Option: Yes</li> <li>Serial Port: 1 Serial</li> <li>Upgradeable firmware: Yes</li> <li>Material of Construction: Metal</li> <li>Mounting Hardware: Yes</li> <li>ECO Mode Thermal Dissipation: 108 BTU/hr</li> <li>Operating Relative Humidity: 0 - 90 % (non-condensing)</li> <li>Operating Temperature: 32 - 104 °F (0 - 40 °C)</li> </ul>
Battery Characteristics	Sealed
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	OL1000RTXL2UN
USB (HID Compliant) Port	Yes
Maximum Storage Elevation	50000 ft
Certifications & Standards	UL 1778
Backup/Run Time (Full Load)	8 Minute
Backup/Run Time (Half Load)	21 Minute
Maximum Operating Elevation	10000 ft
Sound Emission (A-Weighted)	55 dB(A)
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Operating Temperature	104°F (40°C)
Typical Battery Recharge Time	4 Hour
Circuit Breaker Current Rating	15 A
