CYBERPOWER

1500VA/900W UPS RACKMOUNT AVR LINE-INTERACTIVE 8 OL 3YR WTY

SKU: 9GM277VPN: CPS1500AVR

1500VA/900W UPS RACKMOUNT AVR LINE-INTERACTIVE 8 OL 3YR WTY

Key Features

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 10%
  • Runtime (half/full): 18 minutes / 7 minutes
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlets: 8 surge + battery backup
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, Serial, SNMP
  • Data line protection: Telephone, Network, Coaxial
  • Remote management: Yes
  • Environmental sensor: Yes, with optional RMCARD205
  • Warranty: 3 year
  • Connected Equipment Guarantee: $300,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

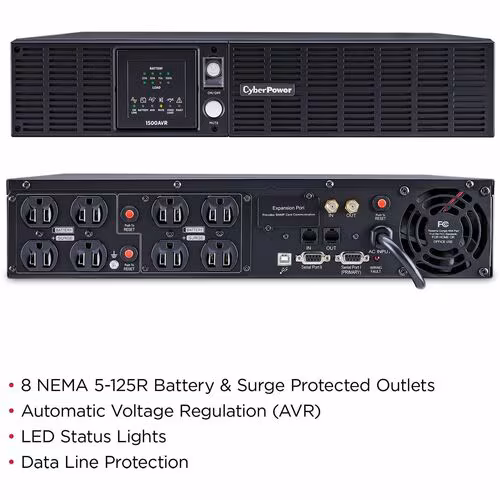

A rack/tower UPS with line interactive topology, the CyberPower Intelligent LCD CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Tech Specs

1500VA/900W UPS RACKMOUNT AVR LINE-INTERACTIVE 8 OL 3YR WTY specifications
AVRYes
USBYes
AlarmBattery Mode
Depth15.7"
Width17.3"
Height3.5"
Brand NameCyberPower
Cord Length10 ft
Energy StarNo
Form FactorRack/Tower
Rack Height2U
Serial PortYes
Show all 69 specs
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCPS1500AVR Smart App LCD UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Technology
Input Voltage120 V AC
Modem (RJ-11)Yes
Product ColorBlack
Product ModelCPS1500AVR
Transfer Time4 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilySmart App LCD UPS
Product SeriesSmart App LCD UPS
Input Frequency47 Hz
Network (RJ-45)Yes
Protection TypeSurge
Receptacle TypeNEMA 5-15R
Battery Capacity7000 mAh
Output Frequency50 Hz
Package Contents<ul><li>Smart App AVR CPS1500AVR 1500VA UPS</li><li>Rack Mount Kit</li><li>User Manual</li><li>Power Management Software</li><li>Warranty Card</li><li>Serial Cable</li><li>Serial-to-USB Adapter</li></ul>
Application/UsageNetwork Device
Battery ChemistryLead Acid
Country of OriginChina
DC System Voltage12 V DC
Receptacle Detail8 x NEMA 5-15R
Software IncludedPowerPanel Business Edition
Status Indicators<ul> <li>Load Level</li> <li>Battery Level</li> <li>Power On</li> <li>Online</li> <li>Using Battery</li> <li>Replace Battery</li> <li>AVR</li> <li>Mute</li> <li>Overload</li> <li>Fault</li> <li>Wiring Fault</li> </ul>
Load Capacity (VA)1500 VA
Network ManagementSNMP/HTTP Remote Monitoring
Dataline ProtectionCoax
Input Voltage Range90 V AC - 140 V AC
Number of Batteries4
Output Power Factor0.6
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1840 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)900 W
Weight (Approximate)50.50 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>UPS Topology : Line Interactive</li><li>Battery Capacity : 7 Ah</li><li>Battery Quantity : 4</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Battery Voltage : 12 VDC</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1270X4E</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 7 min</li><li>Runtime at Half Load : 18 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 43.82 x 8.89 x 40.01 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.25 x 3.5 x 15.75 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 438 x 89 x 400 (mm)</li><li>Weight (kg) : 22.91</li><li>Weight (lb) : 50.5</li><li>Shipping Dimensions - (WxHxD) (cm) : 52.07 x 30.48 x 53.98 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 20.5 x 12.0 x 21.25 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 520.7 x 304.8 x 539.75 (mm)</li><li>Shipping - Weight (kg) : 25.63</li><li>Shipping - Weight (lb) : 56.50</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 10 ft (3.0 m)</li><li>Input Frequency Range : 47 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 90 VAC - 140 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 50/60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 10%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 8</li><li>Outlets - Total : 8</li><li>Outlet Type COMPUTED : 8 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +11.5%</li><li>USB Charge Port : No</li><li>VA : 1500 VA</li><li>Watts : 900 W</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)</li><li>Surge Suppression (Joules) : 1840 J</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Phone / Network Protection RJ11/RJ45 : 1-In / 1-Out (Combo)</li><li>Surge Suppression (Joules) : 1840 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LED Indicators : Load Level</li><li>Management Cable : Serial Cable</li><li>Serial Port : 1 Serial</li><li>SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Rack / Tower</li><li>Material of Construction : Metal</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Safety : UL1778</li><li>CEG Amount : $300000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U4A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmentally FriendlyYes
Manufacturer Part NumberCPS1500AVR
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & Standards<ul><li>FCC Class B certified</li><li>cUL</li><li>UL 1778</li></ul>
Backup/Run Time (Full Load)7 Minute
Backup/Run Time (Half Load)18 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time8 Hour
Circuit Breaker Current Rating15 A
Additional Warranty Information<li>CyberPower stands behind its products by offering an industry leading 3-year warranty</li> <li>CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge</li> <li>Connected Equipment Guarantee of $300,000</li>
Number of Battery & Surge Outlets8
