CYBERPOWER

1500VA/900W UPS 10X NEMA 5-15R AVR RJ45 3YR WTY

SKU: 9GM129VPN: CP1500AVRT

1500VA/900W UPS 10X NEMA 5-15R AVR RJ45 3YR WTY

Key Features

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120Vac ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord

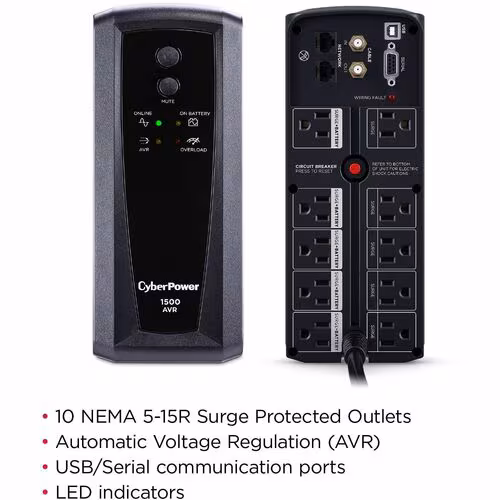

  • Outlets: 10 (5 surge, 5 surge + battery backup)
  • Data line protection: Network, Coaxial
  • Management software: PowerPanel® Personal
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
  • ENERGY STAR® certified: Yes
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1500AVRT provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1500AVRT delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRT comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Tech Specs

1500VA/900W UPS 10X NEMA 5-15R AVR RJ45 3YR WTY specifications
AVRYes
AlarmBattery Mode

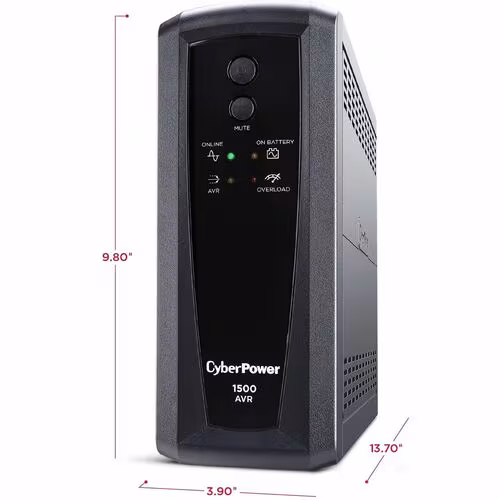

Depth13.7"
Width3.9"
Height9.8"
Brand NameCyberPower
Cord Length6 ft
Energy StarYes
Form FactorMini-tower
Serial PortYes
Battery Life6 Year
Battery Size12V
Show all 66 specs
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCP1500AVRT AVR UPS Systems
Product TypeLine-interactive UPS
Bypass SwitchNot Provided
Energy SavingGreenPower UPS™ Bypass Technology
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1500AVRT
Transfer Time8 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilyAVR UPS
Product SeriesAVR UPS
Circuit BreakerYes
Input Frequency63 Hz
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Package Contents<ul><li>AVR CP1500AVRT 1500VA UPS</li><li>User Manual</li><li>Power Management Software</li><li>Warranty Card</li><li>Coaxial Cable</li><li>Phone Cable</li><li>USB Cable</li></ul>
Battery ChemistryLead Acid
Country of OriginChina

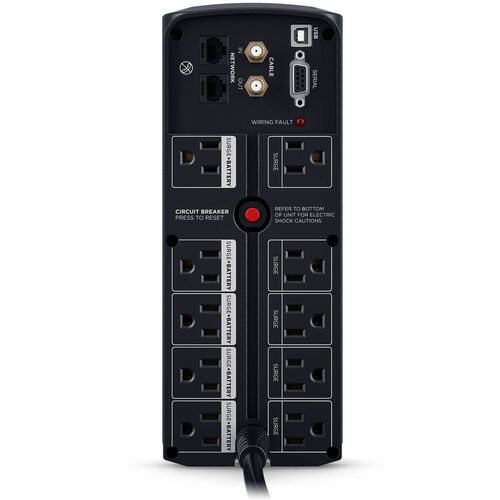

Receptacle Detail10 x NEMA 5-15R
Software IncludedPowerPanel PE
Status Indicators<ul> <li>Power On</li> </ul>
Load Capacity (VA)1500 VA
Dataline ProtectionRG-6
Emergency Power OFFNo
Input Voltage Range88 V AC - 144 V AC
Number of Batteries2
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1500 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)900 W
Weight (Approximate)24.10 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X2 (for serial numbers that begin with "BHG")</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 3 min</li><li>Runtime at Half Load : 11 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 9.91 x 24.89 x 34.8 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.9 x 9.8 x 13.7 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 99 x 249 x 348 (mm)</li><li>Weight (kg) : 10.93</li><li>Weight (lb) : 24.1</li><li>Shipping Dimensions - (WxHxD) (cm) : 19.63 x 36.83 x 43.18 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 7.73 x 14.5 x 17.0 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 196.34 x 368.3 x 431.8 (mm)</li><li>Shipping - Weight (kg) : 12.02</li><li>Shipping - Weight (lb) : 26.5</li><li>Adjustable Voltage Range : 135 - 144 VAC</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 5</li><li>Outlets - Surge-Only Protected : 5</li><li>Outlets - Total : 10</li><li>Outlets - Widely Spaced : 2</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Typical Transfer Time : 8 ms</li><li>USB Charge Port : No</li><li>VA : 1500 VA</li><li>Watts : 900 W</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778|cUL 107 5th|FCC DOC Class B</li><li>CEG Amount : $500000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsMaintenance-free
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1500AVRT
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & Standards<ul><li>FCC Class B certified</li><li>cUL</li><li>UL 1778</li></ul>
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)11 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets5
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time8 Hour
Additional Warranty Information<ul><li>CyberPower stands behind its products by offering an industry leading 3-year warranty</li><li>CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge</li><li>Connected Equipment Guarantee of $500,000</li></ul>
Number of Battery & Surge Outlets5
