CYBERPOWER

1500VA/900W 1U RACKMOUNT UPS 6 NEMA 5-15R/ NEMA 5-15P/3YR WARR

SKU: 9GM167VPN: OR1500LCDRM1U

1500VA/900W 1U RACKMOUNT UPS 6 NEMA 5-15R/ NEMA 5-15P/3YR WARR

Key Features

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Relay, SNMP
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • Warranty: 3 year
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Tech Specs

1500VA/900W 1U RACKMOUNT UPS 6 NEMA 5-15R/ NEMA 5-15P/3YR WARR specifications
AVRYes
USBYes
AlarmBattery Mode
Width17.1"
Height1.8"
Length15.3"
Brand NameCyberPower
Energy StarYes
Form FactorRack-mountable
Rack Height1U
Serial PortYes
Battery Size6V
Show all 58 specs
ManufacturerCyberPower Systems, Inc
Product NameOR1500LCDRM1U Smart App LCD UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Design
Input Voltage120 V AC
Product ModelOR1500LCDRM1U
Transfer Time8 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilySmart App LCD UPS
Product SeriesSmart App LCD UPS
Input Frequency63 Hz
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Battery ChemistryLead Acid
DC System Voltage6 V DC
Receptacle Detail6 x NEMA 5-15R
Software IncludedPowerPanel® Business
Status Indicators<ul> <li>Power On</li> <li>Multifunction LCD</li> </ul>
Load Capacity (VA)1500 VA
Network ManagementSNMP Manageable
Dataline ProtectionRJ-45
Input Voltage Range90 V AC - 140 V AC
Number of Batteries4
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1150 J
EMI/RFI Noise FilterYes
Weight (Approximate)33 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 4</li><li>Battery Size : 6 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB0690X4</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 2 min</li><li>Runtime at Half Load : 11 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 38.86 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 15.3 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 389 (mm)</li><li>Weight (kg) : 14.97</li><li>Weight (lb) : 33</li><li>Shipping Dimensions - (WxHxD) (cm) : 54.61 x 15.88 x 60.33 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 21.5 x 6.25 x 23.75 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 546.1 x 158.75 x 603.25 (mm)</li><li>Shipping - Weight (kg) : 16.6</li><li>Shipping - Weight (lb) : 36.6</li><li>Adjustable Voltage Range : 88 - 144 VAC</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 10 ft (3.0 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 90 VAC - 140 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 10%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 4</li><li>Outlets - Surge-Only Protected : 2</li><li>Outlets - Total : 6</li><li>Outlet Type COMPUTED : 6 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 8 ms</li><li>USB Charge Port : No</li><li>VA : 1500 VA</li><li>Watts : 900 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1150 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1150 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Rackmount</li><li>Material of Construction : Metal</li><li>Rack Height : 1U</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $300000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberOR1500LCDRM1U
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & Standards<ul><li>UL1778</li><li>cUL 107.1</li><li>FCC DOC Class B</li></ul>

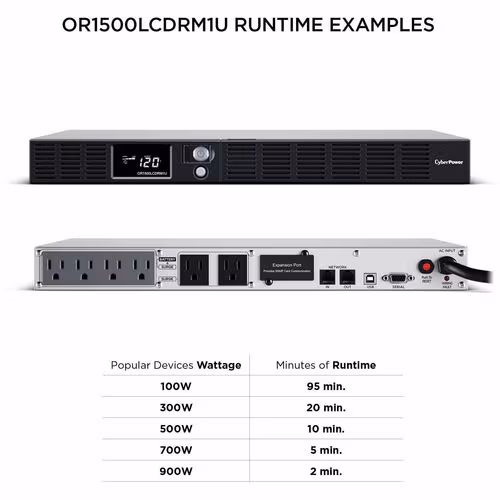

Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)11 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets2
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets4
