CYBERPOWER

1500VA/100W 2U UPS SINEWAVE RACKMOUNT 3-YR WTY

SKU: 04PW04VPN: CP1500PFCRM2U

1500VA/100W 2U UPS SINEWAVE RACKMOUNT 3-YR WTY

Key Features

  • Capacity: 1500VA / 1000W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac ± 5%
  • Runtime (half/full): 10.2 minutes / 3.1 minutes
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlets: 8 surge + battery backup
  • Outlet types: 8 × NEMA 5-15R
  • Communication: USB, SNMP
  • Data line protection: Network
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $500,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

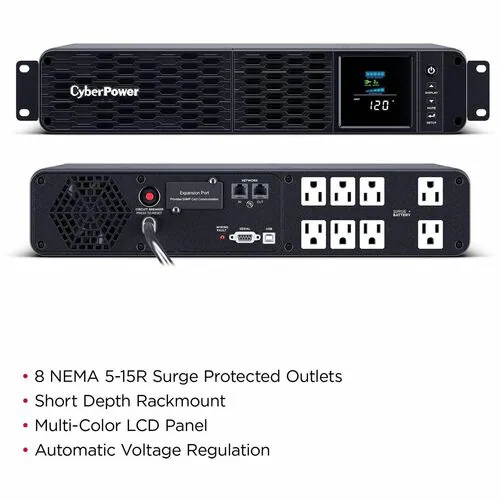

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

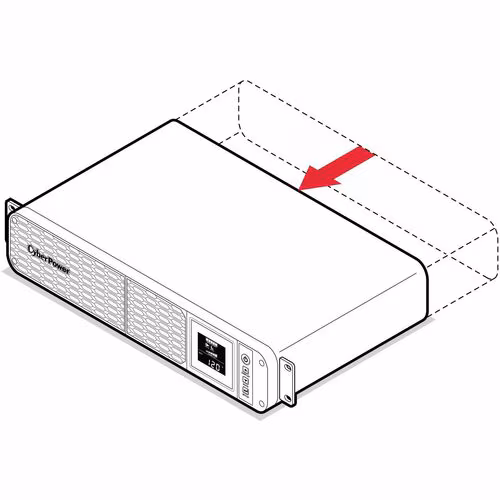

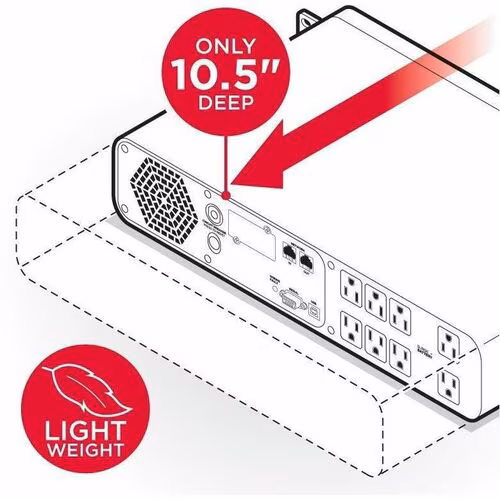

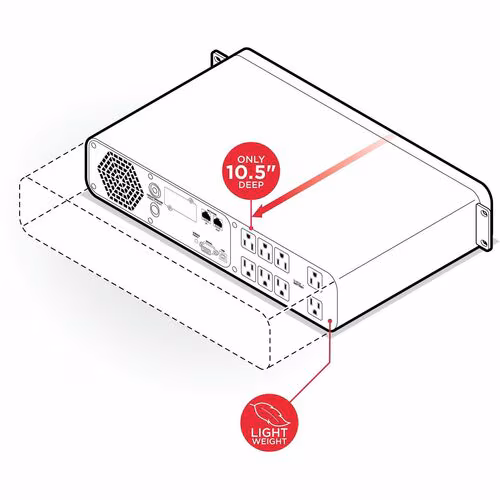

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.

The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Tech Specs

1500VA/100W 2U UPS SINEWAVE RACKMOUNT 3-YR WTY specifications
AVRYes
USBYes
AlarmBattery Mode
Depth10.5"
Width17"
Height3.4"
DisplayLCD
Brand NameCyberPower
Cord Length6 ft
Energy StarYes
Form FactorRack-mountable
Rack Height2U
Show all 72 specs
Serial PortYes
Battery Size12V
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product LinePFC Sinewave
Product NameCP1500PFCRM2U PFC Sinewave UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Technology
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1500PFCRM2U
Transfer Time8 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilyPFC Sinewave PFC Sinewave UPS
Product SeriesPFC Sinewave UPS
Circuit BreakerYes
Input Frequency60 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Application/UsagePOS
Battery ChemistryLead Acid
Country of OriginChina
DC System Voltage12 V DC
Receptacle Detail8 x NEMA 5-15R
Status IndicatorsWiring Fault
Surge SuppressionYes
Load Capacity (VA)1500 VA
Network ManagementSNMP/HTTP Remote Monitoring
Dataline ProtectionRJ-45
Input Voltage Range82 V AC - 144 V AC
Number of Batteries2
Output Power Factor0.7
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1500 J
Thermal Dissipation7.71 W
EMI/RFI Noise FilterYes
Load Capacity (Watt)1000 W
Weight (Approximate)26.80 lb
Additional Information<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X2D</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 3.1 min</li><li>Runtime at Half Load : 10.2 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 26.67 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 10.5 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 267 (mm)</li><li>Weight (kg) : 12.16</li><li>Weight (lb) : 26.8</li><li>Shipping Dimensions - (WxHxD) (cm) : 37.34 x 16.26 x 52.32 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 14.7 x 6.4 x 20.6 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 373.38 x 162.56 x 523.24 (mm)</li><li>Shipping - Weight (kg) : 13.43</li><li>Shipping - Weight (lb) : 29.6</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 8</li><li>Outlets - Total : 8</li><li>Outlets - Widely Spaced : 2</li><li>Outlet Type COMPUTED : 8 - NEMA 5-15R</li><li>Output Power Factor : 0.7</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +11%</li><li>VA : 1500 VA</li><li>Watts : 1000 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Wiring Fault</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Rackmount</li><li>Material of Construction : Plastic</li><li>Rack Height : 2U</li><li>AC Mode Thermal Dissipation : 26.3 BTU/hr</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $500000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1500PFCRM2U
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & StandardsUL1778
Backup/Run Time (Full Load)3.10 Minute
Backup/Run Time (Half Load)10.20 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets8
