CYBERPOWER

1200VA CP AVR UPS LINE-INT TWR 8OUT 5-15R USB/DB9 RJ11-45/COAX 3YR

SKU: 9GM274VPN: CP1200AVR

1200VA CP AVR UPS LINE-INT TWR 8OUT 5-15R USB/DB9 RJ11-45/COAX 3YR

Key Features

  • Capacity: 1200 VA / 720 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 6 ft. cord
  • Outlets: 10 (5 surge, 5 surge + battery backup)
  • Data line protection: Ethernet, Coaxial
  • Management software: PowerPanel® Personal
  • Warranty: 3 year
  • Connected Equipment Guarantee: $375,000
  • ENERGY STAR® qualified: Yes
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

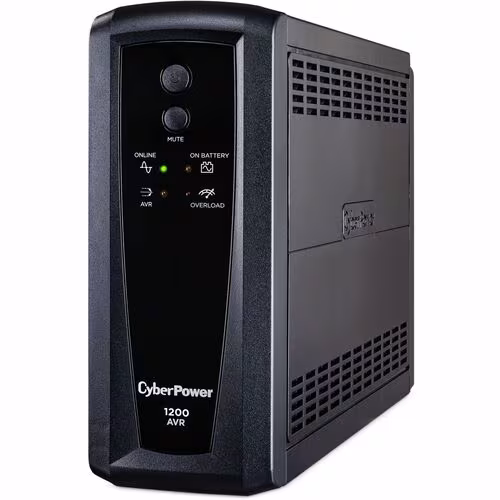

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1200AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1200AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1200AVR comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.

Tech Specs

1200VA CP AVR UPS LINE-INT TWR 8OUT 5-15R USB/DB9 RJ11-45/COAX 3YR specifications
USBYes
AlarmOverload

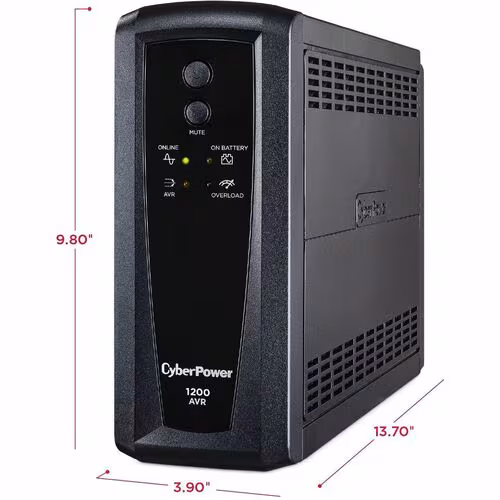

Depth13.2"
Width4"
Height9.8"
Brand NameCyberPower
Cord Length6 ft
Energy StarYes
Form FactorTower
Serial PortYes
Battery Life6 Year
Color FamilyBlack
Show all 52 specs
ManufacturerCyberPower Systems, Inc
Product NameCP1200AVR AVR UPS Systems
Product TypeLine-interactive UPS
Bypass SwitchNot Provided
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1200AVR
Transfer Time4 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilyAVR UPS
Product SeriesAVR UPS
Circuit BreakerYes
Receptacle TypeNEMA 5-15R
Package Contents<ul><li>AVR CP1200AVR 1200VA UPS</li><li>User Manual</li><li>Power Management Software</li><li>Warranty Card</li><li>Coaxial Cable</li><li>Phone Cable</li><li>USB Cable</li></ul>
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail8 x NEMA 5-15R
Software IncludedPowerPanel PE
Status Indicators<ul><li>Power On</li><li>Wiring Fault</li></ul>
Load Capacity (VA)1200 VA
Dataline ProtectionRJ-45
Emergency Power OFFNo
Number of Batteries2
Plug/Connector TypeNEMA 5-15P
Surge Energy Rating1080 J
Load Capacity (Watt)720 W
Weight (Approximate)24.30 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 7 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1270X2C (for serial numbers that begin with "CT6" or "CDM")</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 3 min</li><li>Runtime at Half Load : 12 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 34.8 x 24.89 x 9.91 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 13.7 x 9.8 x 3.9 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 348 x 249 x 99 (mm)</li><li>Weight (kg) : 9.9</li><li>Weight (lb) : 21.83</li><li>Shipping Dimensions - (WxHxD) (cm) : 19.3 x 36.53 x 43.82 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 7.6 x 14.38 x 17.25 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 193.04 x 365.25 x 438.15 (mm)</li><li>Shipping - Weight (kg) : 6.46</li><li>Shipping - Weight (lb) : 14.25</li><li>Adjustable Voltage Range : 135 - 144 VAC</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 5</li><li>Outlets - Surge-Only Protected : 5</li><li>Outlets - Total : 10</li><li>Outlets - Widely Spaced : 2</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 8 ms</li><li>USB Charge Port : No</li><li>VA : 1200 VA</li><li>Watts : 720 W</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1500 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $375000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsMaintenance-free
Environmentally FriendlyYes
Manufacturer Part NumberCP1200AVR
Certifications & Standards<ul><li>FCC Class B certified</li><li>cUL</li><li>UL 1778</li></ul>
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)12 Minute
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Maximum Operating Temperature113°F (45°C)
Typical Battery Recharge Time8 Hour
Additional Warranty Information<ul><li>CyberPower stands behind its products by offering an industry leading 3-year warranty</li><li>CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge</li><li>Connected Equipment Guarantee of $375,000</li></ul>
