1000VA 700W UPS PFC LCD AVR SINE WAVE 8 OUT 15A TOWER 3YR WTY

SKU: 9GM204VPN: OR1000PFCLCD

Out of Stock

$399.19

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Capacity: 1000 VA / 700 W
Topology: Line Interactive
Waveform: Sine Wave
Output: 120 VAC ± 5%
Plug type & cord: NEMA 5-15P, 6 ft. cord

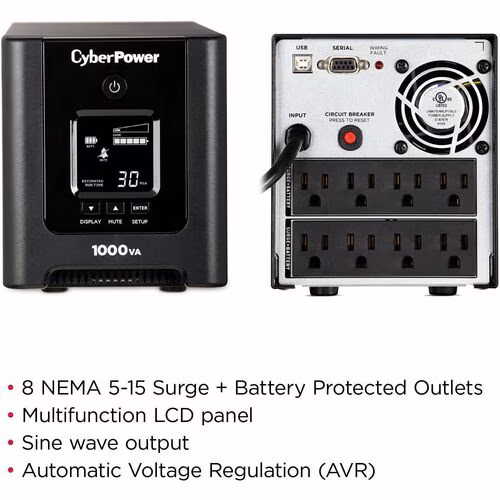

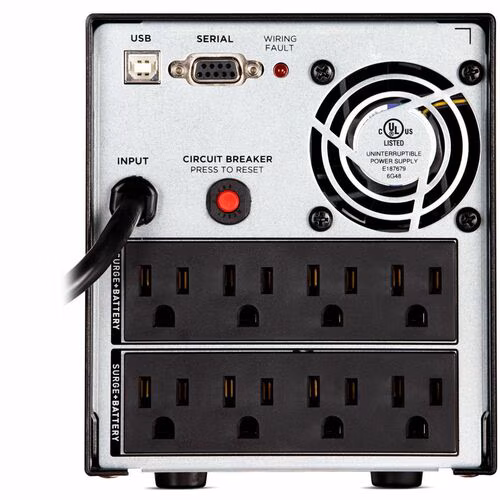

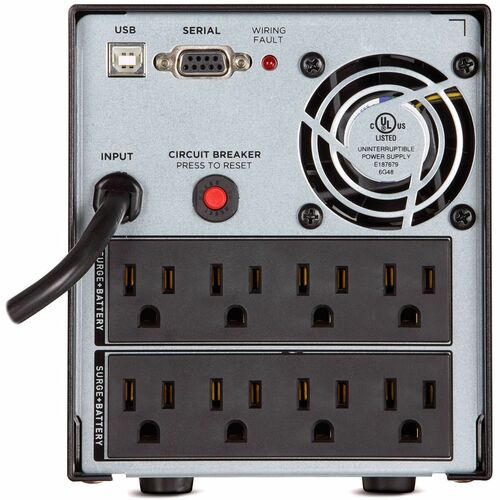

Outlet types: 8 x NEMA 5-15R
Communication: USB, Serial
Management software: PowerPanel Business Edition
Warranty: 3 year
Connected Equipment Guarantee: $200,000

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

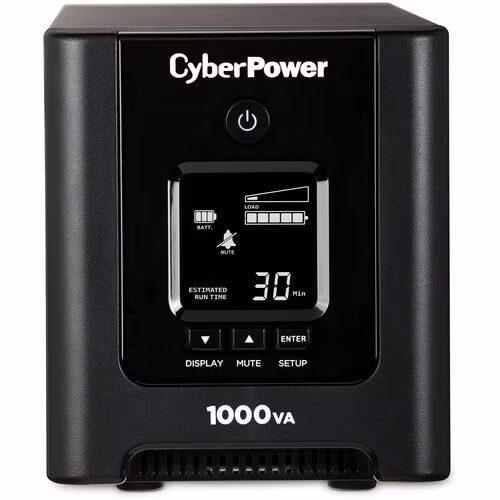

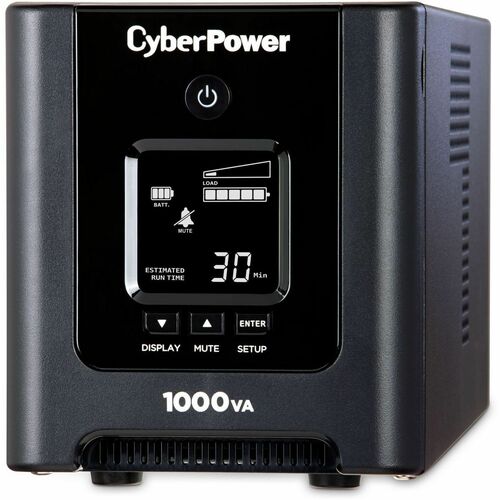

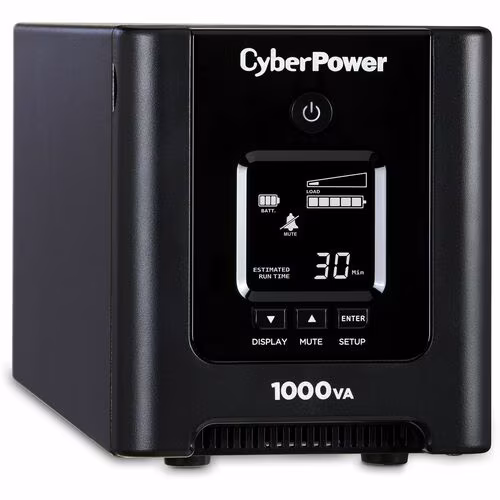

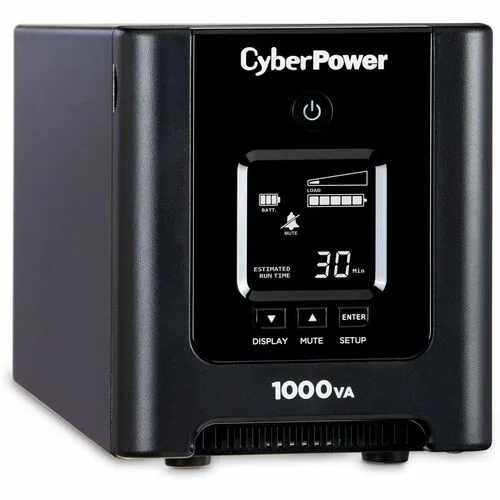

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1000PFCLCD provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring PFC power source compatibility. The OR1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1000PFCLCD comes with a three-year warranty and a $200,000 Connected Equipment Guarantee.

Tech Specs

1000VA 700W UPS PFC LCD AVR SINE WAVE 8 OUT 15A TOWER 3YR WTY specifications

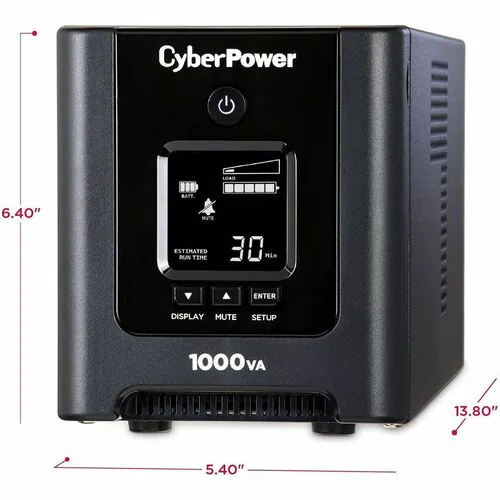

Depth	13.8"
Width	5.4"
Height	6.4"
Brand Name	CyberPower
Cord Length	6 ft
Energy Star	No
Form Factor	Mini-tower
Manufacturer	CyberPower Systems, Inc
Product Name	OR1000PFCLCD PFC Sinewave UPS Systems
Product Type	Line-interactive UPS
Hot Swappable	Yes
Input Voltage	120 V AC

Show all 30 specs

Product Model	OR1000PFCLCD
Output Voltage	120 V AC
Product Family	PFC Sinewave UPS
Product Series	PFC Sinewave UPS
Receptacle Type	NEMA 5-15R
Package Contents	<ul> <li>PFC Sine Wave OR1000PFCLCD mini-tower 1000VA 700W</li> <li>User Manual</li> <li>USB Cable </li> <li>PowerPanel Business Edition Software Download Card</li> </ul>
Country of Origin	China
Receptacle Detail	8 x NEMA 5-15R
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	700 W
Weight (Approximate)	24.70 lb
Additional Information	<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 2</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : Yes</li><li>Replacement Battery Cartridge : RB1290X2A</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 6 min</li><li>Runtime at Half Load : 16 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 13.72 x 16.26 x 35.05 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 5.4 x 6.4 x 13.8 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 137 x 163 x 351 (mm)</li><li>Weight (kg) : 11.2</li><li>Weight (lb) : 24.7</li><li>Shipping Dimensions - (WxHxD) (cm) : 25.91 x 28.19 x 47.63 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 10.2 x 11.1 x 18.75 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 259.08 x 281.94 x 476.25 (mm)</li><li>Shipping - Weight (kg) : 8.5</li><li>Shipping - Weight (lb) : 18.75</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 47 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 78 VAC - 142 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Straight</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 50/60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 8</li><li>Outlets - Total : 8</li><li>Outlet Type COMPUTED : 8 - NEMA 5-15R</li><li>Output Power Factor : 0.7</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +18%</li><li>USB Charge Port : No</li><li>VA : 1000 VA</li><li>Watts : 700 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 1030 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Surge Suppression (Joules) : 1030 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Serial</li><li>Software (Free Download) : PowerPanel® Business</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Metal</li><li>Operating Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 9843 ft (0 - 3000 m)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778 4th Ed.</li><li>CEG Amount : $200000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U2A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	OR1000PFCLCD
Backup/Run Time (Full Load)	6 Minute
Manufacturer Website Address	https://www.cyberpowersystems.com/
Typical Battery Recharge Time	8 Hour
