CYBERPOWER

1000VA/600W UPS MINITOWER LCD LINE-INTERACTIVE AVR 9 OL 3YR WTY

SKU: 9GM086VPN: CP1000AVRLCD

1000VA/600W UPS MINITOWER LCD LINE-INTERACTIVE AVR 9 OL 3YR WTY

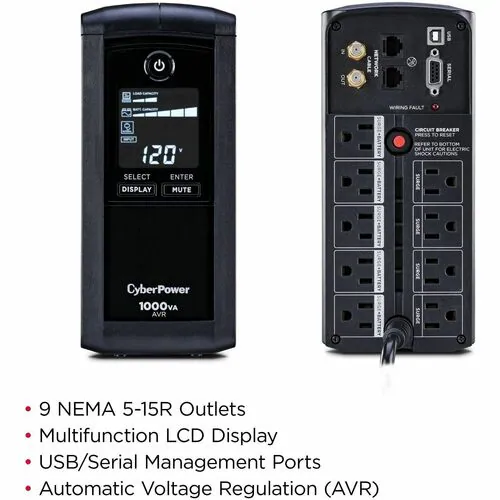

Key Features

  • Capacity:
  • 1000 VA / 600 W
  • Topology:
  • Line Interactive
  • Waveform:
  • Simulated Sine Wave
  • Output:
  • 120 VAC ± 5%
  • Plug type & cord:
  • NEMA 5-15P, 6 ft. cord
  • Outlet types:
  • 9 × NEMA 5-15R
  • Communication:
  • USB, Serial
  • Data line protection:
  • Ethernet, Coaxial
  • Management software:
  • PowerPanel® Personal
  • ENERGY STAR® certified:
  • Yes
  • Warranty:
  • 3 year
  • Connected Equipment Guarantee:
  • $350,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

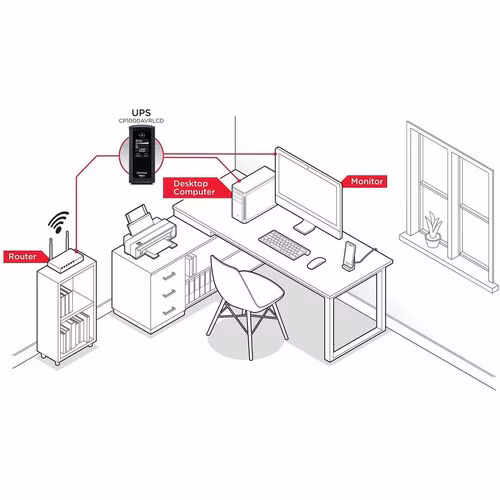

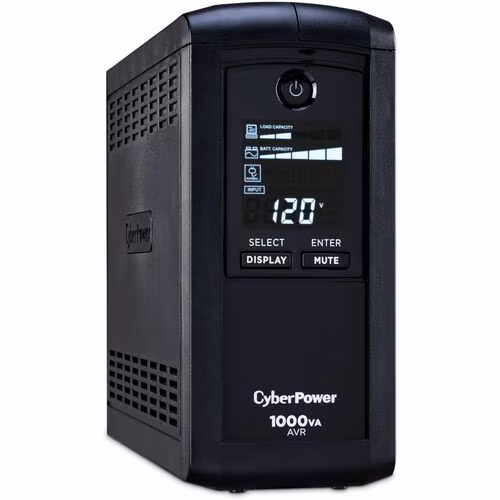

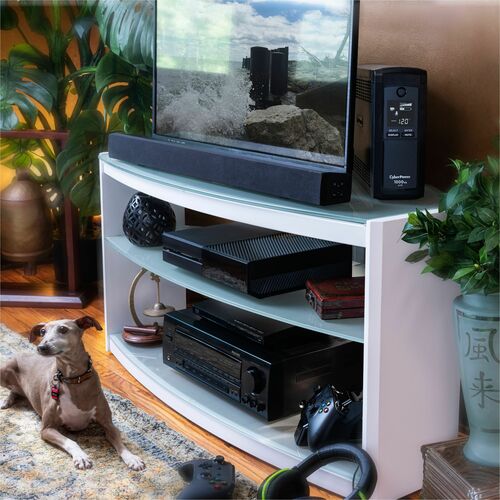

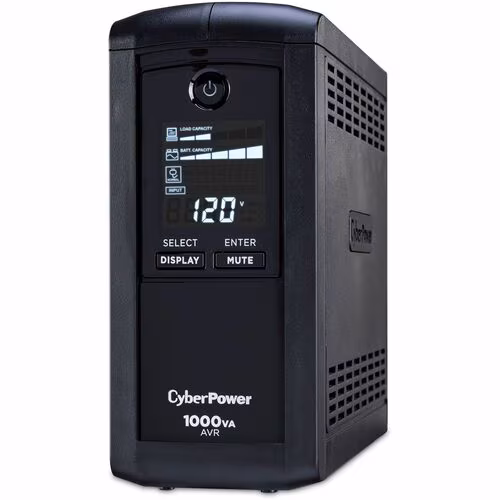

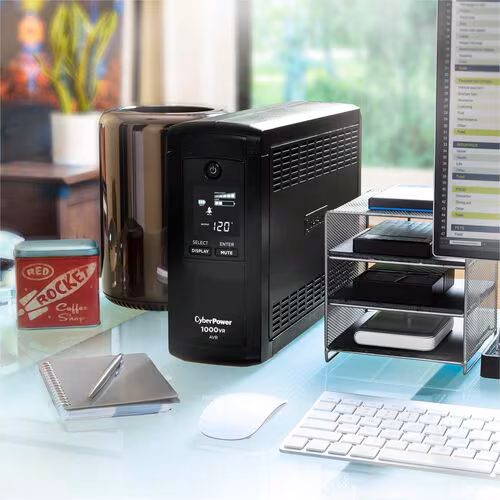

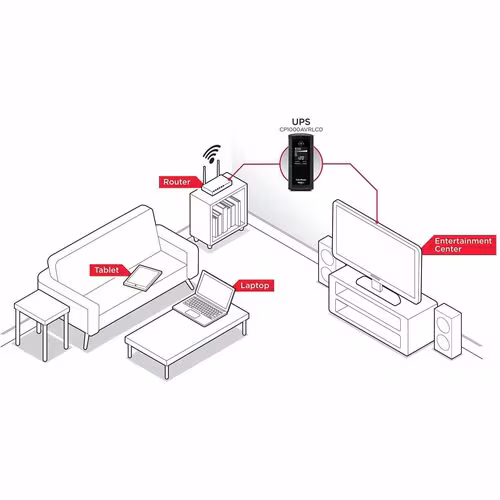

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

Tech Specs

1000VA/600W UPS MINITOWER LCD LINE-INTERACTIVE AVR 9 OL 3YR WTY specifications
AVRYes
AlarmBattery Mode

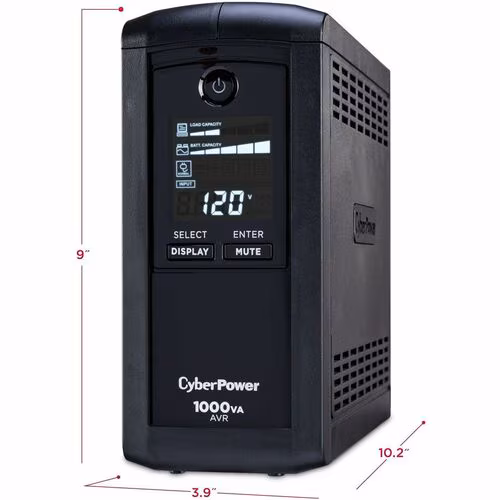

Depth14"
Width3.9"
Height11"
DisplayLCD
Brand NameCyberPower
Cord Length6 ft
Energy StarYes
Form FactorMini-tower
Serial PortYes
Battery Size12V
Show all 65 specs
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCP1000AVRLCD Intelligent LCD UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS™ Bypass Technology
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1000AVRLCD
Transfer Time4 ms
Waveform TypeSimulated Sine Wave
Output Voltage120 V AC
Product FamilyIntelligent LCD UPS
Product SeriesIntelligent LCD UPS
Circuit BreakerYes
Input Frequency50 Hz
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Package Contents<ul> <li>Intelligent LCD CP1000AVRLCD 1000VA Tower UPS</li> <li>User's Manual</li> <li>USB Cable</li> <li>Software Download Card</li> <li>Registration Information Card</li> </ul>
Battery ChemistryLead Acid
Country of OriginChina

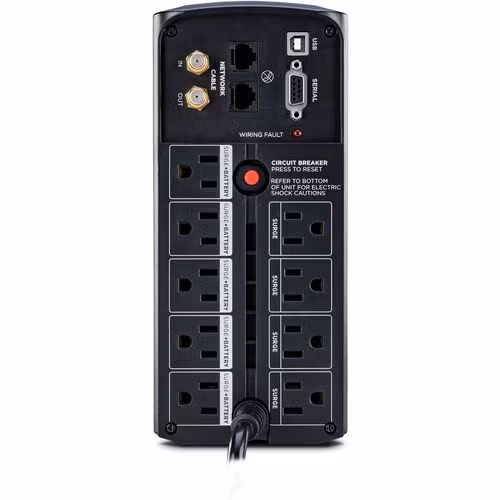

Receptacle Detail9 x NEMA 5-15R
Software IncludedPowerPanel Personal Edition Software
Status IndicatorsPower on
Load Capacity (VA)1000 VA
Dataline ProtectionRG-6
Input Voltage Range90 V AC - 142 V AC
Number of Batteries1
Output Power Factor0.6
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1080 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)600 W
Weight (Approximate)15 lb
Additional Information<li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 1</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Replacement Battery Cartridge : RB1290</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 2 min</li><li>Runtime at Half Load : 9 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.9 x 11 x 14 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)</li><li>Weight (kg) : 6.8</li><li>Weight (lb) : 15</li><li>Shipping Dimensions - (WxHxD) (cm) : 16.84 x 30.48 x 35.89 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 6.63 x 12.0 x 14.13 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 168.4 x 304.8 x 358.9 (mm)</li><li>Shipping - Weight (kg) : 7.48</li><li>Shipping - Weight (lb) : 16.5</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 6 ft (1.8 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 90 VAC - 142 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Simulated Sine Wave</li><li>Outlets - Battery & Surge Protected : 5</li><li>Outlets - Surge-Only Protected : 4</li><li>Outlets - Total : 9</li><li>Outlet Type COMPUTED : 9 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +10%</li><li>USB Charge Port : No</li><li>VA : 1000 VA</li><li>Watts : 600 W</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1080 J</li><li>Coax Protection RG6 COMPUTED : 1 in</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000)</li><li>Surge Suppression (Joules) : 1080 J</li><li>Audible Alarms : Battery Mode</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 90 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $350000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U1B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1000AVRLCD
USB (HID Compliant) PortYes
Maximum Storage Elevation50000 ft
Certifications & Standards<ul> <li>UL1778</li> <li>cUL 107 5th</li> <li>FCC Class B</li> </ul>
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)9 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets4
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Number of Battery & Surge Outlets5
