CYBERPOWER

1000VA/600W SINE WAVE AVR UPS 10 OUTLET LCD SERIAL/USB 3YR WTY

SKU: 9GM044VPN: CP1000PFCLCD

1000VA/600W SINE WAVE AVR UPS 10 OUTLET LCD SERIAL/USB 3YR WTY

Key Features

  • Capacity: 1000VA/600W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlet types: 10 × NEMA 5-15R
  • Communication: USB, Relay
  • Data line protection: Network
  • Management software: PowerPanel® Personal
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year
  • Connected Equipment Guarantee: $350,000
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

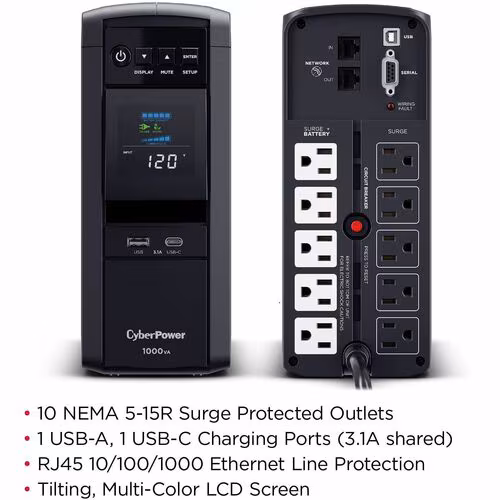

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1000PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

Tech Specs

1000VA/600W SINE WAVE AVR UPS 10 OUTLET LCD SERIAL/USB 3YR WTY specifications
AVRYes
USBYes
AlarmBattery Mode
Depth10.2"
Width3.9"
Height9.7"
DisplayLCD
EPO PortNo
FeaturesAudible Alarm
Brand NameCyberPower
Cord Length5 ft
Energy StarYes
Show all 72 specs
Form FactorMini-tower
Serial PortYes
Battery Size12V
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NameCP1000PFCLCD PFC Sinewave UPS Systems
Product TypeLine-interactive UPS
Energy SavingGreenPower UPS Bypass Technology
Hot SwappableNo
Input Voltage120 V AC
Product ColorBlack
Product ModelCP1000PFCLCD
Transfer Time4 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilyPFC Sinewave UPS
Product SeriesPFC Sinewave UPS
Circuit BreakerYes
Input Frequency57 Hz
Receptacle TypeNEMA 5-15R
Battery Capacity9000 mAh
Output Frequency60 Hz
Package Contents<ul> <li>PFC Sinewave CP1000PFCLCD 1000VA Mini-Tower UPS</li> <li>User Manual</li> <li>Telephone Cable</li> <li>PowerPanel Personal Edition Software CD</li> <li>Coaxial Cable</li> <li>USB A+B Type Cable</li> <li>Warranty Registration Card</li> <li>Function Setup Guide</li> </ul>
Application/UsageDesktop Computer
Battery ChemistryLead Acid
Receptacle Detail10 x NEMA 5-15R
Software IncludedPowerPanel Personal Edition Software
Status Indicators<ul> <li>Power On</li> <li>Wiring Fault</li> </ul>
Surge SuppressionYes
Load Capacity (VA)1000 VA
Network ManagementDry Contact
Dataline ProtectionRJ-45
Input Voltage Range88 V AC - 144 V AC
Number of Batteries1
Number of USB Ports2
Output Power Factor0.6
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating1150 J
EMI/RFI Noise FilterYes
Load Capacity (Watt)600 W
Weight (Approximate)15.39 lb
Additional Information<li>Active PFC Compatible : Yes</li><li>Energy Saving : GreenPower UPS™ Bypass Technology</li><li>Energy Star Certified : Yes</li><li>UPS Topology : Line Interactive</li><li>Battery Quantity : 1</li><li>Battery Size : 12 V / 9 Ah</li><li>Battery Type : Sealed Lead-Acid Battery</li><li>Hot Swappable : No</li><li>Replacement Battery Cartridge : RB1290</li><li>Replacement Battery Cartridge Quantity : 1</li><li>Runtime at Full Load : 2 min</li><li>Runtime at Half Load : 6 min</li><li>Typical Recharge Time : 8 Hours</li><li>User Replaceable Battery : Yes</li><li>Physical Dimensions - (WxHxD) (cm) : 10.01 x 24.64 x 26.01 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 3.94 x 9.7 x 10.24 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 100 x 246 x 260 (mm)</li><li>Weight (kg) : 6.98</li><li>Weight (lb) : 15.39</li><li>Shipping Dimensions - (WxHxD) (cm) : 16.99 x 32.99 x 34.01 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 6.69 x 12.99 x 13.39 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 169.93 x 329.95 x 340.11 (mm)</li><li>Shipping - Weight (kg) : 7.5</li><li>Shipping - Weight (lb) : 16.53</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 5 ft (1.5 m)</li><li>Input Frequency Range : 57 Hz - 63 Hz</li><li>Input Plug Type : NEMA 5-15P</li><li>Input Voltage Range : 88 VAC - 144 VAC</li><li>Nominal Input Voltage : 120 VAC</li><li>Plug Style : Right Angle - 45° Offset</li><li>Automatic Voltage Regulation : Single Boost</li><li>On AC WaveForm : Sine Wave</li><li>On Battery Frequency : 60 Hz ± 1%</li><li>On Battery Voltage : 120 VAC ± 5%</li><li>On Battery Waveform : Sine Wave</li><li>Outlets - Battery & Surge Protected : 5</li><li>Outlets - Surge-Only Protected : 5</li><li>Outlets - Total : 10</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Output Power Factor : 0.6</li><li>Overload Protection : Internal Circuitry Limiting</li><li>Typical Transfer Time : 4 ms</li><li>Under/Over-Voltage Correction : +11.5%</li><li>USB Charge Port : Yes</li><li>USB Charge Port Amperage : 3.1 Amps (Shared)</li><li>USB Charge Port Quantity : 2</li><li>USB Charge Port Standard : Type A</li><li>USB Charge Port Type COMPUTED : 1 Type A</li><li>USB Charge Port Voltage COMPUTED : 5 VDC</li><li>VA : 1000 VA</li><li>Watts : 600 W</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1150 J</li><li>EMI/RFI Filtration COMPUTED : Yes</li><li>Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible</li><li>Surge Suppression (Joules) : 1150 J</li><li>Audible Alarms : Battery Mode</li><li>Emergency Power Off (EPO) Port : No</li><li>HID Compliant USB Port : Yes</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Power On</li><li>Management Cable : USB Cable</li><li>Serial Port : 1 Dry Contact</li><li>Software (Free Download) : PowerPanel® Personal</li><li>Color : Black</li><li>Form Factor : Mini-Tower</li><li>Material of Construction : Plastic</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL1778</li><li>CEG Amount : $350000</li><li>Connected Equipment Guarantee : Lifetime</li><li>Extended Warranty Option : WEXT5YR-U1B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Battery CharacteristicsSealed
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCP1000PFCLCD
USB (HID Compliant) PortYes
Certifications & Standards<ul><li>UL1778</li><li>cUL 107.3</li><li>FCC DOC Class B</li></ul>
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)6 Minute
Maximum Operating Elevation10000 ft
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Number of Surge-only Outlets5
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
Typical Battery Recharge Time8 Hour
Additional Warranty InformationThree-year warranty (including coverage of batteries)
Number of Battery & Surge Outlets5
