WALLMOUNT RACK ENCLOSURE W LOCK INDUSTRIAL 6U 16.5IN DEEP NEMA 4
WALLMOUNT RACK ENCLOSURE W LOCK INDUSTRIAL 6U 16.5IN DEEP NEMA 4
Key Features
- Enclosed, sealed metal housing protects 6U of rack equipment up to 16.5 in. deep
- NEMA 4 enclosure provides protection against water, ice, snow and other moisture
- Door locks securely with included keys to help prevent damage, tampering or theft
- Ships fully assembled for immediate wall-mounting with user-supplied hardware
- 5-year limited warranty
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

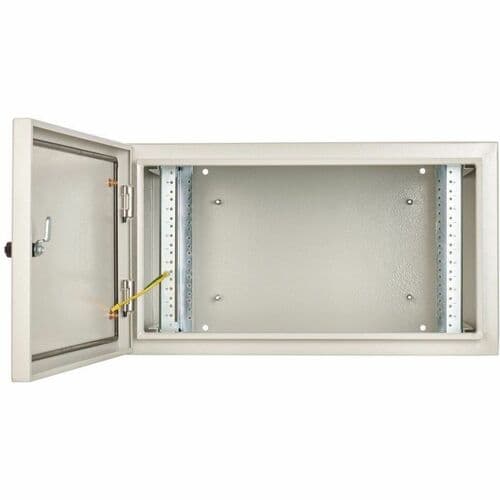

Locking metal enclosure protects your rack-mount equipment against theft, damage, tampering, and excess moisture and debris.
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 16.5 in. Deep
This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from heavy-duty steel with a durable gray powder-coated finish, the SRN4G6U has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G6U protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door swings away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 16.5 inches deep. Hardware for mounting equipment inside the enclosure is included.
Tech Specs
| Depth | 18.7" |
|---|---|
| Width | 24" |
| Height | 13.6" |
| Features | Swing Door |
| Rack Type | Enclosed Cabinet |
| Brand Name | Tripp Lite series |
| Rack Depth | 16.50" |
| Form Factor | Wall Mountable |
| Rack Height | 6U |
| Color Family | Gray |
| Manufacturer | Eaton Corporation |
| Product Line | SmartRack |
Show all 28 specsShow fewer
| Product Name | SRN4G6U Industrial Enclosure |
|---|---|
| Product Type | Rack Mount Enclosure |
| Product Color | Gray |
| Product Model | SRN4G6U |
| Product Family | SmartRack |
| Package Contents | <ul> <li>SRN4G6U Industrial Enclosure</li> <li>24 x 10-32 Screws</li> <li>24 x M6 Washers</li> <li>4 x LDPE Sheet Metal Plugs</li> <li>4 x M10 Foam Washers</li> <li>2 x Keys</li> <li>Owner's Manual</li> </ul> |
| Product Material | Steel |
| Application/Usage | Patch Panel |
| Assembly Required | No |
| Country of Origin | China |
| Weight (Approximate) | 57.60 lb |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SRN4G6U |
| Manufacturer Website Address | http://www.eaton.com |
| Static/Stationary Weight Capacity | 200 lb |
