ATEN TECHNOLOGIES

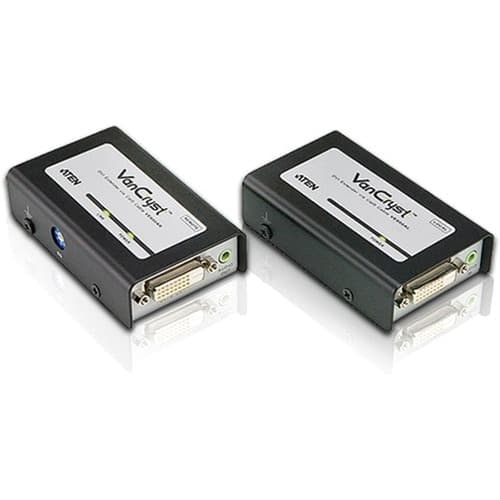

VE600A DVI AUDIO VIDEO EXTENDER 1920X1200 CAT 5 200FT 1080P 5.3VDC
SKU: LB3855VPN: VE600A
VE600A DVI AUDIO VIDEO EXTENDER 1920X1200 CAT 5 200FT 1080P 5.3VDC
Key Features
- Extends the distance between DVI source and DVI display device
- Long distance transmission - up to 60 m
- Uses Cat 5e cable to connect the local and remote units
- Superior video quality - up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
- Audio enabled
- Adjustable EQ compensation control
- Supports widescreen formats
- Rack mountable
- HDCP Compatible
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p.

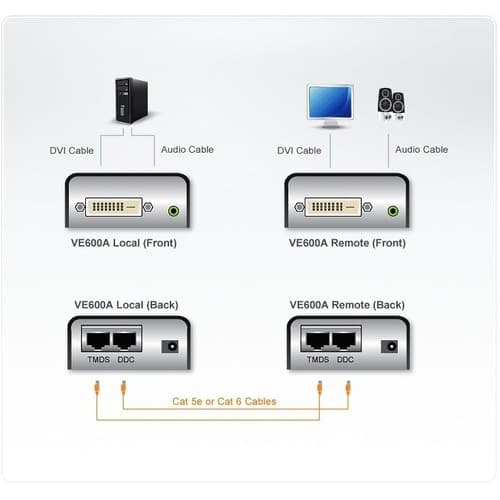

The VE 600A uses two Cat5e cables to connect the local and remote units. It will pass video and audio with one cable [TDMS], but the second cable [DDC] must be used if your installation requires EDID information.
There are no drivers or other software to install, simply connect the units to your video source and destination.
Tech Specs
| DVI In | Yes |
|---|---|
| Length | 3.6" |
| DVI Out | Yes |
| Brand Name | ATEN |
| Manufacturer | ATEN Technology, Inc |
| Product Name | Video Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Input Voltage | 5.3 V DC |
| Product Model | VE600A |
| Graphics Modes | WUXGA |
| Network (RJ-45) | Yes |
| Package Contents | <ul><li>Video Extender</li><li>2 x Power Adapters</li><li>1 x Rack Mount Kit</li><li>1 x User Guide</li><li>2 x Grounding Wire</li></ul> |
Show all 28 specsShow fewer
| Product Material | Metal |
|---|---|
| Transmitter Width | 2.20" |
| Transmitter Height | 1" |
| Media Type Supported | Twisted Pair |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| Connectivity Technology | Wired |
| Manufacturer Part Number | VE600A |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 200 ft |
| Twisted Pair Cable Standard | Category 5e |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 1 lb |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 3 |
