USB2 CAT5 EXTENDER W/4PORT HUB USB2.0 CAT5 EXTENDER WITH 4PORT HUB

SKU: 8DA079VPN: UCE32100

In Stock

$497.00$374.10

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
Supports all USB 2.0 devices up to 480Mbps
USB Lossless - Higher compatibility of remote USB devices

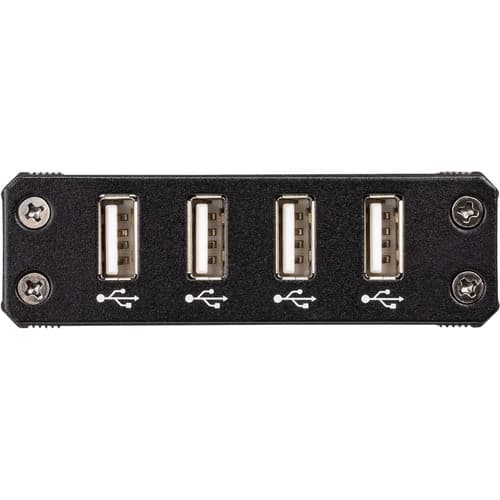

An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
Power supply for remote unit to ensure power delivery to multiple devices at once
Compact size with wall mounting and din rail included for flexible installation
DC jack lock kit included to ensure durable power adapter connection
Supports Windows®, OS X®, and Linux®
Plug-and-play

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

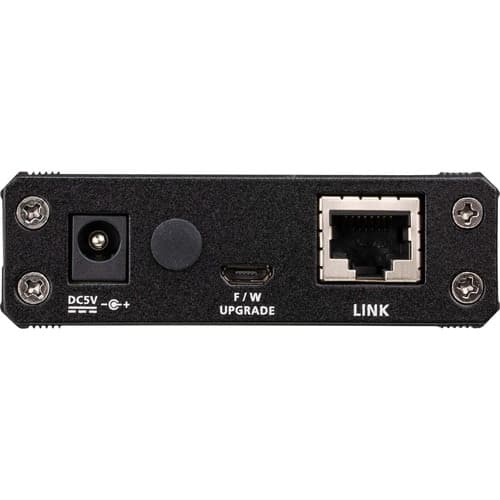

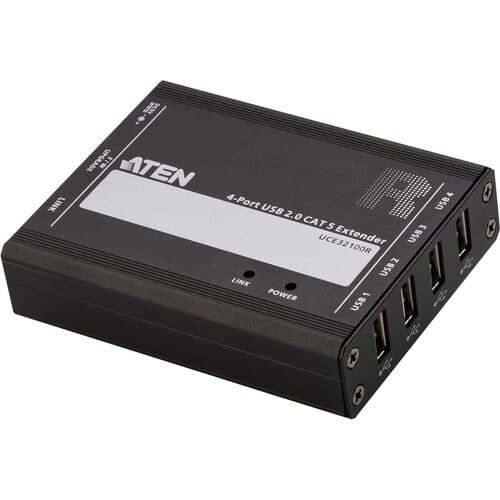

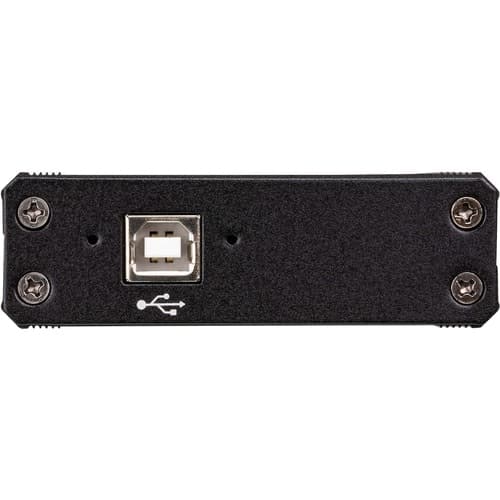

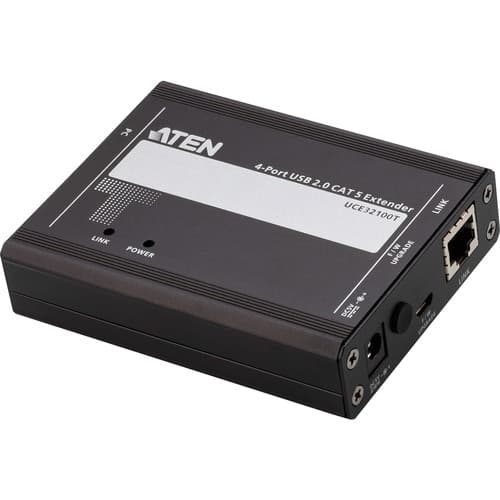

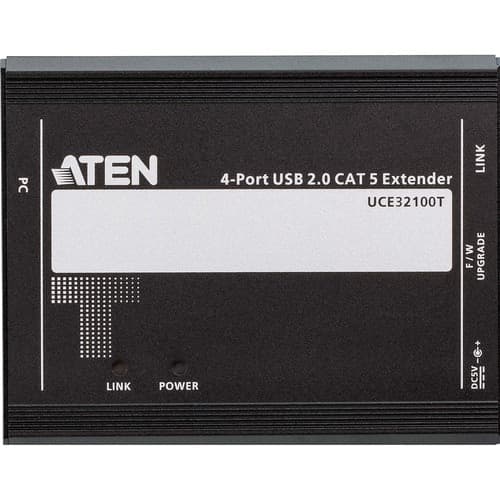

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Tech Specs

USB2 CAT5 EXTENDER W/4PORT HUB USB2.0 CAT5 EXTENDER WITH 4PORT HUB specifications
USB	Yes
Brand Name	ATEN
Form Factor	Wall Mountable
Manufacturer	ATEN Technology, Inc
Product Name	4-port USB 2.0 CAT 5 Extender (100m)
Product Type	Video Extender Transmitter/Receiver
Product Model	UCE32100
Receiver Depth	3.11"
Receiver Width	4"
Network (RJ-45)	Yes
Receiver Height	0.96"
Package Contents	<ul> <li>1 x UCE32100T USB 2.0 CAT 5 Transmitter</li> <li>1 x UCE32100R USB 2.0 CAT 5 Receiver</li> <li>1 x USB 2.0 Type-A Male to Type-B Male Cable</li> <li>1 x Power Adapter</li> <li>1 x Power Cord</li> <li>4 x Mounting Kit</li> <li>2 x Din Rail</li> <li>2 x DC Jack Lock Kit</li> <li>2 x Rubber Feet Sets</li> <li>1 x User Instructions</li> </ul>

Show all 27 specs

Transmitter Depth	3.11"
Transmitter Width	4"
Transmitter Height	0.96"
Number of USB Ports	7
Media Type Supported	Twisted Pair
Connectivity Technology	Wired
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	UCE32100
Maximum Operating Distance	3.94"
Twisted Pair Cable Standard	Category 5
Manufacturer Website Address	http://www.aten.com/us/en/
Receiver Weight (Approximate)	7.41 oz
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	7.41 oz
