ATEN TECHNOLOGIES

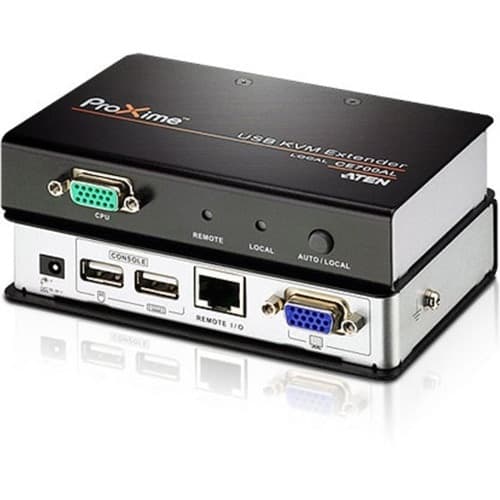

USB CAT5 CONSOLE EXTENDER UP TO 500FT
SKU: CN6875VPN: CE700A
USB CAT5 CONSOLE EXTENDER UP TO 500FT
Key Features

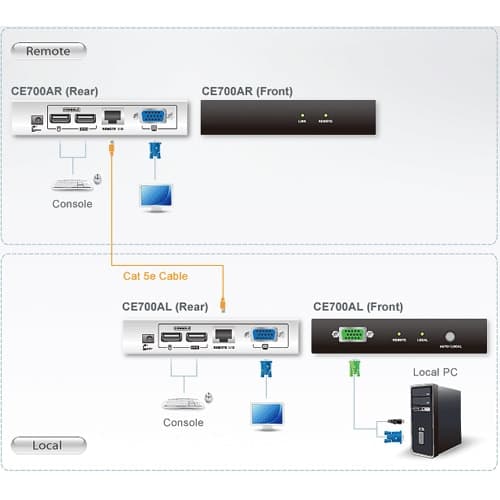

- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Automatic gain control - adjusts signal strength to compensate for distance
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
Tech Specs
| USB | Yes |
|---|---|
| VGA | Yes |
| Brand Name | ATEN |
| Form Factor | Rack-mountable |
| Graphic Mode | WUXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Line | ProXime |
| Product Name | Proxime CE700A KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Input Voltage | 5.3 V DC |
| Product Model | CE700A |
| KVM Technology | Analog |
Show all 32 specsShow fewer
| Product Family | ProXime |
|---|---|
| Network (RJ-45) | Yes |
| Package Contents | <ul><li>Proxime CE700A KVM Console/Extender</li><li>2 x Power Adapters</li><li>1 x USB KVM Cable</li><li>2 x Grounding Wires</li><li>1 x Rack Mount Kit</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li></ul> |
| Country of Origin | China |
| Packaged Quantity | 1 |
| Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Proprietary Interface | Yes |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE700A |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 492.13 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 1 |
| Receiver Weight (Approximate) | 10.93 oz |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Remote Users Supported | 1 |
| Transmitter Weight (Approximate) | 11.29 oz |
