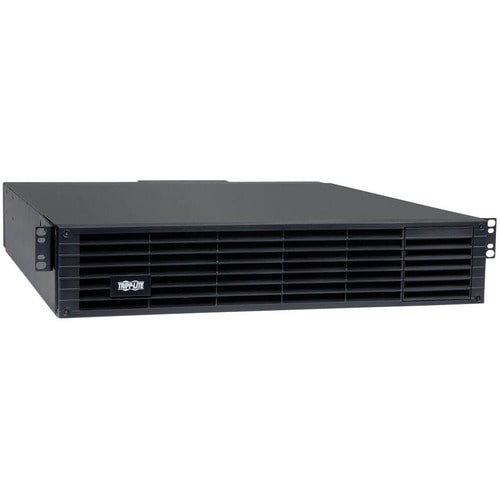

UPS EXTERNAL BATTERY PACK 36V 2URM SMARTS ONLINES 1000-1500VA

SKU: UN2873VPN: BP36V27-2US

In Stock

$1,464.92$842.50

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends the runtime of expandable 36V DC Tripp Lite UPS Systems
Included daisychain connector supports the addition of multiple compatible external battery packs
Supports 2U rackmount installation; 4 post installation accessories included
Options for 2 post rackmount, tower and wallmount installation available

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

External Battery Pack Gives Your Compatible Tripp Lite UPS System Extended Runtime
The BP36V27-2US is compatible only with select 36V DC Tripp Lite UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current two-point DC connector is included for simple installation. Optional-use rear-panel battery detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs.

Versatile Installation Options Allow You to Place the Battery Where Most Needed
The steel housing supports mounting in 2U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP36V27-2US is also compatible with Tripp Lite's 2-9USTAND for upright tower configuration, 2POSTRMKITWM for 2-post racks or wall installation and UPDHDEARKIT for 2-point front-rail rack installation without rear supports (all accessories sold separately).

2-Year Warranty
The BP36V27-2US is backed by a 2-year warranty, ensuring reliability and performance.

Tech Specs

UPS EXTERNAL BATTERY PACK 36V 2URM SMARTS ONLINES 1000-1500VA specifications
Depth	22.6"
Width	17.3"
Height	3.4"
Brand Name	Tripp Lite series
Form Factor	Tower/Rack Mountable
Rack Height	2U
Manufacturer	Eaton Corporation
Product Name	BP36V27-2US - 2U External 36V Rack/Tower Battery Pack for Select UPS Systems
Product Type	UPS Battery Pack
Compatibility	<b>Tripp Lite UPS:</b><br><ul><li>SMART1000RMXL2U</li><li>SMART1200XLHG</li><li>SMART1500RMXL2UA</li><li>SMART1500RMXLN</li><li>SMART1500XL</li><li>SMX1200XLHG</li><li>SMX1500XLRT2U</li></ul>
Product Model	BP36V27-2US
TAA Compliant	Yes

Show all 23 specs

Output Voltage	36 V DC
Package Contents	<ul><li>BP36V27-2US - 2U External 36V Rack/Tower Battery Pack for Select UPS Systems</li><li>4 Post Compatible Mounting Hardware</li><li>Owner's Manual</li></ul>
Battery Chemistry	Lead Acid
Country of Origin	Taiwan
Maximum Battery Life	6 Year
Minimum Battery Life	4 Year
Weight (Approximate)	68.90 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	BP36V27-2US
Manufacturer Website Address	http://www.eaton.com
