CYBERPOWER

SWITCHED ATS PDU 15A 120V 1U 10 OUTLETS

SKU: 01FL30VPN: PDU44001

SWITCHED ATS PDU 15A 120V 1U 10 OUTLETS

Key Features

  • Automated notifications: Email, SMS Text, and SNMP Trap
  • Phase: Single
  • Amps: 15A (Derated to 12A)
  • Volts: 100-120V
  • Frequency: 50/60Hz
  • Plug type: 2 x NEMA 5-15P
  • Outlets: 10 x NEMA 5-15R
  • Size: 1U Rackmount
  • Warranty: 3 year
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

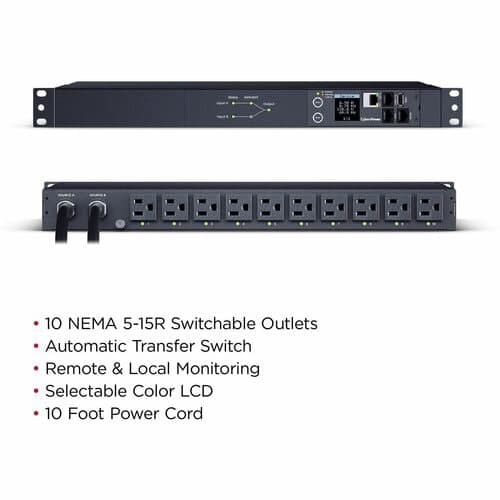

Ensure continued operation of critical devices with the CyberPower PDU44001 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001 is protected by a three-year limited warranty.

Tech Specs

SWITCHED ATS PDU 15A 120V 1U 10 OUTLETS specifications
Depth8.5"
PhaseSingle Phase
Width17.1"
DesignModular
Height1.8"
FeaturesLED Status Indicator
PDU TypeSwitched
UL ListedYes
Brand NameCyberPower
Management<b>Protocols:</b><ul><li>IPv4</li><li>TCP</li><li>IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP<li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS<li>Syslog</li><li>CLI</li><li>Windows AD</li><li>SNMP</li></ul>
Mount TypeRack-mountable
Cord Length10 ft
Show all 50 specs
Form FactorRack
Rack Height1U
Color FamilyBlack
ManufacturerCyberPower Systems, Inc
Product NamePDU44001
Product TypePDU
Input Current15 A
Input Voltage120 V AC
Product ColorBlack
Product ModelPDU44001
Output Voltage100 V AC
Product FamilySwitched ATS PDU
Product SeriesSwitched ATS PDU
Input Frequency60 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 5-15R
Product MaterialMetal
Application/UsageNetwork Device
Country of OriginChina
Receptacle Detail10 x NEMA 5-15R
Input Voltage Range100 V AC - 120 V AC
Locking ReceptaclesCord Retention Tray
Plug/Connector TypeNEMA 5-15P
Mounting OrientationHorizontal
Output Voltage Range100 V AC - 120 V AC
Weight (Approximate)10.01 lb
Plug/Connector Detail2 x NEMA 5-15P
Additional Information<li>Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)</li><li>Weight (kg) : 4.54</li><li>Weight (lb) : 10</li><li>Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm)</li><li>Shipping - Weight (kg) : 6.03</li><li>Shipping - Weight (lb) : 13.3</li><li>Cord Length : 10 ft (3.0 m)</li><li>Derated Input Current : 12 A</li><li>Input Frequency Range : 50 Hz - 60 Hz</li><li>Input Plug Type : 2 x NEMA 5-15P</li><li>Maximum Input Current : 15A</li><li>Nominal Input Voltage : 100 - 120 VAC</li><li>Phase : Single Phase</li><li>Plug Style : Straight</li><li>Nominal Output Voltage : 100 - 120 VAC</li><li>Outlet Banks : 1</li><li>Outlets - Total : 10</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Overload Protection : None</li><li>Power Source Transfer Time : 2-7 ms</li><li>Source Failure Detection Time : 2-3 ms</li><li>Total Transfer Time : <10 ms</li><li>Environmental Sensor : Optional, via RJ45</li><li>Hardware Connection Port : Ethernet (RJ45)</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Source Status</li><li>Modular Expandability (Cascading) : Yes, via RJ45</li><li>Outlet switching : Yes</li><li>SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD</li><li>Upgradeable firmware : Yes</li><li>Color : Black</li><li>Cord Retention Tray/Cord Organizers : Yes</li><li>External Site Ground Pin : Yes</li><li>Form Factors Supported : 1U Rackmount</li><li>Material of Construction : Metal</li><li>Rack Height : 1U</li><li>Style : Rackmount</li><li>Operating Elevation : 0 - 13123 ft (0 - 4000 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 113 °F (0 - 45 °C)</li><li>Storage Elevation : 0 - 49213 ft (0 - 14999 m)</li><li>Storage Temperature : 5 - 131 °F (-15 - 55 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL62368 via cTUVus</li><li>Extended Warranty Option : WEXT5YR-PDU1B</li><li>Product Warranty : 3 Year Limited Warranty</li>
Remote Outlet SwitchingYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberPDU44001
Certifications & Standards<ul><li>UL62368 via cTUVus</li><li>FCC Class A</li><li>ICES-003: Issue 7</li></ul>
Maximum Storage Temperature131°F (55°C)
Minimum Storage Temperature5°F (-15°C)
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Maximum Operating Temperature113°F (45°C)
Minimum Operating Temperature32°F (0°C)
