15A PDU RM 1U 10OUT 5-15R 120V 15 CORD 3YR-WTY

SKU: 9GM169VPN: CPS1215RM

In Stock

$63.40

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Phase:
Single
Amps:
15A
Volts:
100-125V
Frequency:
60Hz
Plug type:
NEMA 5-15P
Outlets:
10 NEMA 5-15R
Size:
1U Rackmount
Dimensions (in.):
17.25W x 1.75H x 4.75D
Cord length (ft.):
15
Warranty:
3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

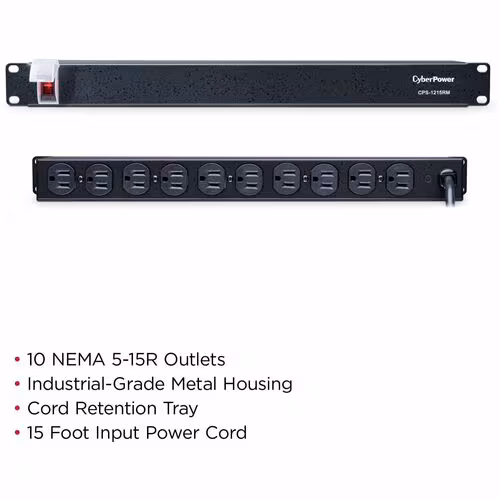

The CyberPower CPS1215RM, a 10-outlet (rear) rackmount power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1215RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is UL Recognized. The CPS1215RM comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Tech Specs

15A PDU RM 1U 10OUT 5-15R 120V 15 CORD 3YR-WTY specifications
Depth	4.8"
Phase	Single Phase
Width	17.3"
Height	1.8"
PDU Type	Basic
UL Listed	Yes
Brand Name	CyberPower
Mount Type	Rack-mountable
Cord Length	15 ft
Form Factor	Rack
Rack Height	1U
Color Family	Black

Show all 45 specs

Manufacturer	CyberPower Systems, Inc
Product Name	CPS1215RM Single Phase 100 - 120 VAC 15A Basic
Product Type	PDU
Input Current	15 A
Input Voltage	120 V AC
Product Color	Black
Product Model	CPS-1215RM
Circuit Breaker	Yes
Protection Type	Overload Protection
Receptacle Type	NEMA 5-15R
Package Contents	<ul><li>CPS1215RM</li><li>Warranty Card/Manual</li></ul>
Application/Usage	Data Center
Country of Origin	China
Power Rating (VA)	1800 VA
Product Condition	New
Receptacle Detail	10 x NEMA 5-15R
Input Voltage Range	100 V AC - 125 V AC
Locking Receptacles	Cord Retention Tray
Plug/Connector Type	NEMA 5-15P
Mounting Orientation	Horizontal
Number of Cord/Cable	1
Output Voltage Range	100 V AC - 120 V AC
Parts Warranty/Labor	3 Year Parts & Labor
Weight (Approximate)	5 lb
Additional Information	<li>Physical Dimensions - (WxHxD) (cm) : 43.82 x 4.45 x 12.07 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.25 x 1.75 x 4.75 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 438 x 44 x 121 (mm)</li><li>Weight (kg) : 2.27</li><li>Weight (lb) : 5</li><li>Shipping Dimensions - (WxHxD) (cm) : 5.84 x 25.15 x 51.74 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 2.3 x 9.9 x 20.37 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 58.42 x 251.46 x 517.4 (mm)</li><li>Shipping - Weight (kg) : 2.64</li><li>Shipping - Weight (lb) : 5.83</li><li>Circuit Breaker : 15 A</li><li>Cord Length : 15 ft (4.6 m)</li><li>Input Plug Type : NEMA 5-15P</li><li>Maximum Input Current : 15A</li><li>Nominal Input Voltage : 100 - 125 VAC</li><li>Phase : Single Phase</li><li>Plug Style : Straight</li><li>Switch : Lighted On/Off</li><li>Nominal Output Voltage : 100 - 120 VAC</li><li>Outlets - Front : 0</li><li>Outlets - # of Banks : 1</li><li>Outlets - Rear : 10</li><li>Outlets - Total : 10</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Overload Protection : 15A</li><li>USB Charge Port : No</li><li>Clamping Voltage : 800V (H-N)</li><li>Clamping Voltage : 800V (H-N)</li><li>Color : Black</li><li>Cord Retention Tray/Cord Organizers : Yes</li><li>Form Factors Supported : 1U Rackmount</li><li>Material of Construction : Metal</li><li>Rack Height : 1U</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Storage Elevation : 0 - 50000 ft (0 - 15239 m)</li><li>Storage Temperature : 5 - 113 °F (-15 - 45 °C)</li><li>Safety : UL Recognized</li><li>Product Warranty : 3 Year Limited Warranty</li>
Manufacturer Part Number	CPS-1215RM
Certifications & Standards	<ul><li>UL Recognized</li></ul>
Maximum Storage Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Additional Warranty Information	CyberPower stands behind its products with an industry-leading 3 year warranty. CyberPower also offers a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of Charge.
