CYBERPOWER

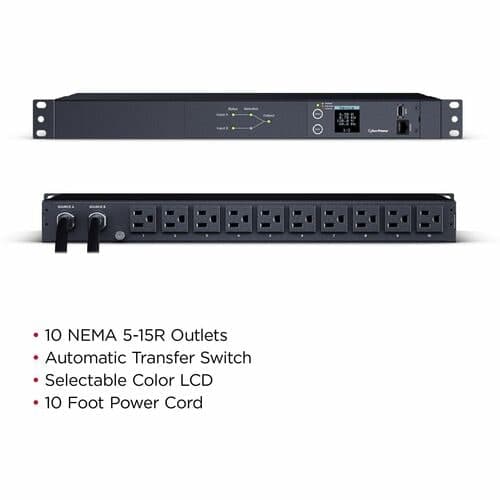

METERED ATS PDU 15A 120V 1U 10 OUTLETS

SKU: 01FL35VPN: PDU24001

Limited Stock

$449.60

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Phase: Single
Amps: 15A (Derated to 12A)
Volts: 100-120V
Frequency: 50/60Hz
Plug type: 2 x NEMA 5-15P
Outlets: 10 x NEMA 5-15R
Size: 1U Rackmount
Warranty: 3 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.

Tech Specs

METERED ATS PDU 15A 120V 1U 10 OUTLETS specifications
Depth	8.5"
Phase	Single Phase
Width	17.1"
Design	Modular
Height	1.8"
Features	LCD Display
PDU Type	Metered
Brand Name	CyberPower
Management	<b>Protocols:</b><ul><li>IPv4</li><li>TCP</li><li>IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP<li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS<li>Syslog</li><li>CLI</li><li>Windows AD</li><li>SNMP</li></ul>
Mount Type	Rack-mountable
Cord Length	10 ft
Form Factor	Rack

Show all 48 specs

Rack Height	1U
Color Family	Black
Manufacturer	CyberPower Systems, Inc
Product Name	PDU24001
Product Type	PDU
Input Current	15 A
Input Voltage	120 V AC
Product Color	Black
Product Model	PDU24001
Output Voltage	120 V AC
Product Family	Metered ATS PDU
Product Series	Metered ATS PDU
Input Frequency	60 Hz
Network (RJ-45)	Yes
Receptacle Type	NEMA 5-15R
Product Material	Metal
Application/Usage	Network Closet
Country of Origin	China
Receptacle Detail	10 x NEMA 5-15R
Input Voltage Range	100 V AC - 120 V AC
Locking Receptacles	Cord Retention Tray
Plug/Connector Type	NEMA 5-15P
Mounting Orientation	Horizontal
Output Voltage Range	100 V AC - 120 V AC
Weight (Approximate)	9.59 lb
Plug/Connector Detail	2 x NEMA 5-15P
Additional Information	<li>Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)</li><li>Weight (kg) : 4.35</li><li>Weight (lb) : 9.6</li><li>Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm)</li><li>Shipping - Weight (kg) : 5.76</li><li>Shipping - Weight (lb) : 12.7</li><li>Cord Length : 10 ft (3.0 m)</li><li>Derated Input Current : 12 A</li><li>Input Frequency Range : 50 Hz - 60 Hz</li><li>Input Plug Type : 2 x NEMA 5-15P</li><li>Maximum Input Current : 15A</li><li>Nominal Input Voltage : 100 - 120 VAC</li><li>Phase : Single Phase</li><li>Plug Style : Straight</li><li>Nominal Output Voltage : 100 - 120 VAC</li><li>Outlet Banks : 1</li><li>Outlets - Total : 10</li><li>Outlet Type COMPUTED : 10 - NEMA 5-15R</li><li>Overload Protection : None</li><li>Power Source Transfer Time : 2-7 ms</li><li>Source Failure Detection Time : 2-3 ms</li><li>Total Transfer Time : <10 ms</li><li>Hardware Connection Port : Serial (RJ45)</li><li>LCD : Multifunction LCD</li><li>LED Indicators : Source Status</li><li>Upgradeable firmware : Yes</li><li>Color : Black</li><li>Cord Retention Tray/Cord Organizers : Yes</li><li>External Site Ground Pin : Yes</li><li>Form Factors Supported : 1U Rackmount</li><li>Material of Construction : Metal</li><li>Rack Height : 1U</li><li>Style : Rackmount</li><li>Operating Elevation : 0 - 13123 ft (0 - 4000 m)</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 113 °F (0 - 45 °C)</li><li>Storage Elevation : 0 - 49213 ft (0 - 14999 m)</li><li>Storage Temperature : 5 - 131 °F (-15 - 55 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : UL62368 via cTUVus</li><li>Extended Warranty Option : WEXT5YR-PDU1A</li><li>Product Warranty : 3 Year Limited Warranty</li>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	PDU24001
Certifications & Standards	<ul><li>UL62368 via cTUVus</li><li>FCC Class A</li><li>ICES-003: Issue 7</li></ul>
Maximum Storage Temperature	131°F (55°C)
Minimum Storage Temperature	5°F (-15°C)
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Operating Temperature	113°F (45°C)
Minimum Operating Temperature	32°F (0°C)
