MAGNETIC STRIPE CARD READER

SKU: SR1096VPN: MSR-100

In Stock

$52.64

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Chip set: Magtek
Bi-directional card reader
Analog output of keyboard
Connectes easily and directly with computer or terminal
Good Anti-interference, and excellent accurate reading
Operation response combines a diode and buzzer for notification of successful reading

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

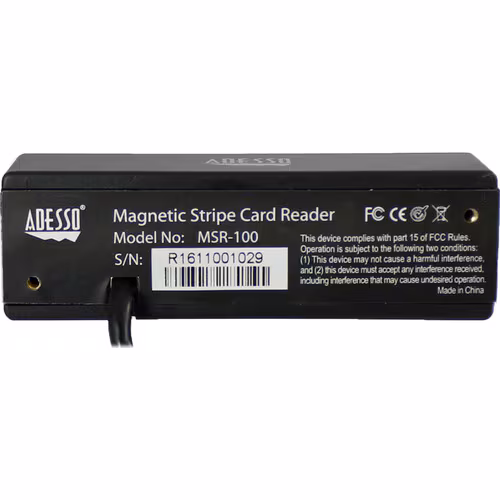

The Adesso MSR-100 magnetic stripe card reader is used to read and transmit data from any magnetic card that is swiped. It has an excellent Electro--Static discharge and electromagnetic compatible. It is widely used in all different areas such as POS terminals, poster terminals, access monitoring, attendance records etc...

Features:

Magnetic Stripe Reader (MSR)
The Magnetic Stripe Reader makes credit card transactions a breeze- a perfect Point Of Sale feature for any POS setup.

Bi-Directional
Swipe in any direction either from left to right or right to left with accuracy and convenience without any difference in readings or limitations.

Up to 500,000 passes with ISO-conforming cards
Long life span greater then 500,000 swipes of ISO cards. Never worry about a wearing head, or inaccurate readings because of it. The MSR-100 will last for years and years of accurate readings into your POS system.

Single, Dual, or Three Track Capability
The stripe card reader reads up to 3 tracks of data, e.g. decoding/encoding and verifies up to 3 tracks of data simultaneously. So in addition to reading the standard credit card and driver license formats, these readers will read custom formats such as 7-bit encoding on all 3 tracks.

Tech Specs

MAGNETIC STRIPE CARD READER specifications
USB	Yes
Width	0.9"
Height	1"
Length	3.6"
Brand Name	Adesso
Manufacturer	Adesso, Inc
Product Name	MSR-100 Magnetic Stripe Card Reader
Product Type	Magnetic Stripe Reader
Input Voltage	5 V DC
Product Model	MSR-100
Country of Origin	China
Maximum Swipe Speed	50 in/s

Show all 25 specs

Minimum Swipe Speed	3 in/s
Weight (Approximate)	4 oz
Additional Information	<br /> <ul> <li>Encode Mode: F2F</li> <li>Standard: ISO7810，ISO7811-1/2/3/4/5</li> <li>Compatible Operation systems: Windows® 2000 / XP / Vista / 7 / 8 / 10</li> <li>Data Format: according with the requirement of user</li> <li>Card Swipe Speed: 10-140cm/s</li> <li>Life circle of the Head: 》500000 times</li> <li>Coercive Force: 300-4000oe</li> <li>The Density of Magnetic Stripe:</li> </ul> <p> Track 1-210BPI with max 75 characters</p> <p> Track 2-210BPI with max 75 characters or 75BPI with 37 characters;</p> <p> Track 3-210BPI with max 75 characters</p> <p><b>Environment :</b></p> <ul> <li>Working Temperature: 0-40℃</li> <li>Working Humidity: 10%- 90%</li> <li>Working Voltage: DC+5V ±5%</li> <li>Working Current: ≤50mA</li> <li>Storage Temperature: -20 -50 ℃</li> </ul>
Bi-directional Reading	Yes
Magnetic Stripe Format	ISO 7811
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	MSR-100
Certifications & Standards	<ul> <li>FCC</li> <li>CE</li> </ul>
Magnetic Stripe Track Number	Track 2
Manufacturer Website Address	http://www.adesso.com
Number of Swipes (Head Life)	500000
Magnetic Stripe Track Configuration	Triple Track
