EATON TRIPP LITE SERIES MASTER-POWE

INDUSTRIAL RACK ENCLOSURE OUTDOOR W LOCK NEMA 4 10X10X6IN RED

SKU: 09TX96VPN: SRIN410106R

INDUSTRIAL RACK ENCLOSURE OUTDOOR W LOCK NEMA 4 10X10X6IN RED

Key Features

  • Red metal housing protects security, fire, law enforcement and other equipment
  • NEMA 4 enclosure provides protection against water, ice, snow and other moisture
  • Includes metal and plastic backplates to accommodate a wide range of equipment
  • Comes fully assembled and ready for wall mounting using included hardware
  • 5-year limited warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

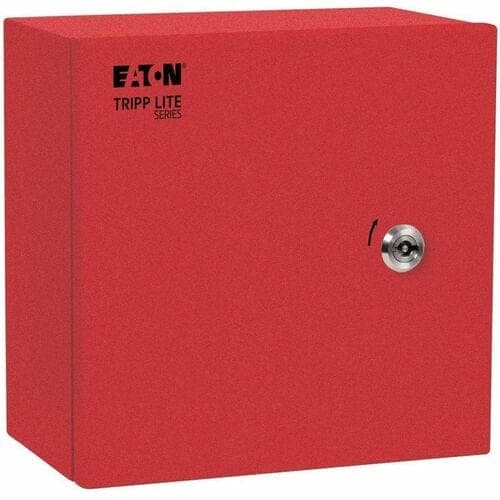

Surface-Mount Enclosure Secures and Organizes Valuable First-Responder Equipment
This SmartRack® industrial enclosure with a red metal housing is designed to protect expensive outdoor equipment, especially that used in security, fire, law enforcement and other first-responder applications. It accommodates industrial controls and computers, HMI, enterprise systems, remote networking equipment, distributed controls, production monitoring systems, wireless access points, building automation and HVAC, security, audio/video, and telecommunications applications. Included steel and plastic rear panels accommodate most equipment.

NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRIN410106R protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, processing plants, fabrication areas, retail locations and other areas where you need to keep sensitive equipment secure, organized and out of the way.

Locks Securely to Help Prevent Theft, Damage and Tampering

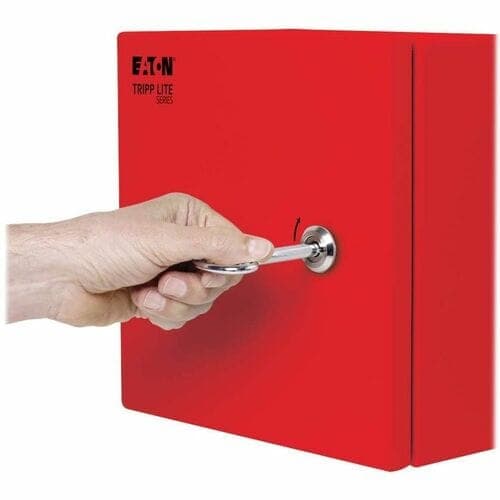

The rugged heavy-duty 14-gauge steel housing locks securely with the included key to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door allows easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy to Install
This steel enclosure comes fully assembled and ready for mounting on a wall using both the included and user-supplied hardware. It measures 10 inches high, 10 inches wide and 6 inches deep.

Tech Specs

INDUSTRIAL RACK ENCLOSURE OUTDOOR W LOCK NEMA 4 10X10X6IN RED specifications
Depth6"
Width10"
Height10"
FeaturesKey Lock
Rack TypeEnclosed Cabinet
Brand NameTripp Lite series
Form FactorWall Mountable
Rack Height5U
Color FamilyRed
ManufacturerEaton Corporation
Product LineSmartRack
Product NameSRIN410106R Outdoor Industrial Enclosure
Show all 27 specs
Product TypeRack Mount Enclosure
Product ColorRed
Product ModelSRIN410106R
Product FamilySmartRack

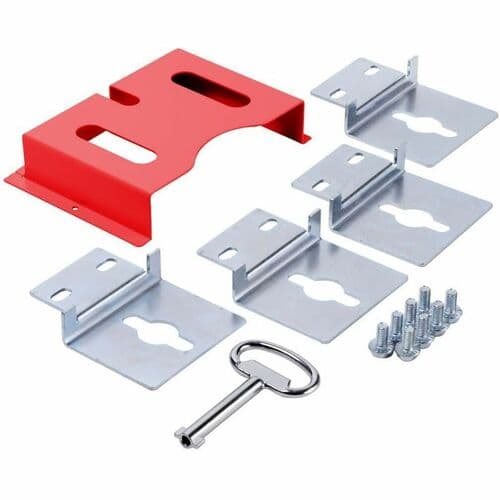

Package Contents<ul> <li>SRIN410106R Outdoor Industrial Enclosure</li> <li>4 x Mounting Brackets</li> <li>8 x M6 Screws</li> <li>Information/Data Filing Door Bracket</li> <li>Metal Backplate</li> <li>Plastic Backplate</li> <li>Gland Plate (Pre-Installed)</li> <li>Key</li> <li>Installation Guide</li> </ul>
Product MaterialPowder Coated Steel
Application/UsageWireless Access Point
Assembly RequiredNo
Country of OriginChina
Weight (Approximate)17.64 lb
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberSRIN410106R
Manufacturer Website Addresshttp://www.eaton.com
Static/Stationary Weight Capacity200.62 lb
