INDUSTRIAL ETH 4PORT SWITCH - 22 F+176 DEG F GALVANIC ISOLATION

SKU: TE5921VPN: SW-504

Out of Stock

$79.09

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

4 Port Ethernet Switch

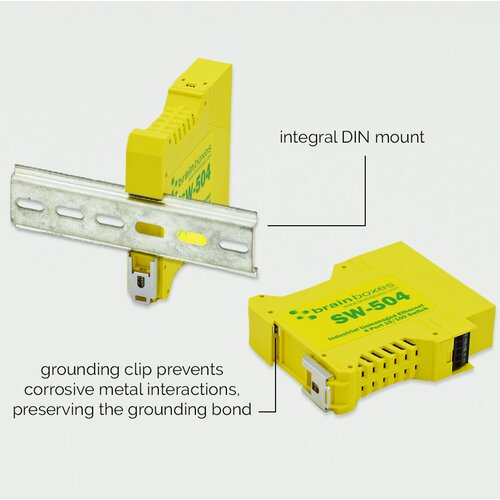

Integrated DIN Rail Mount with grounding

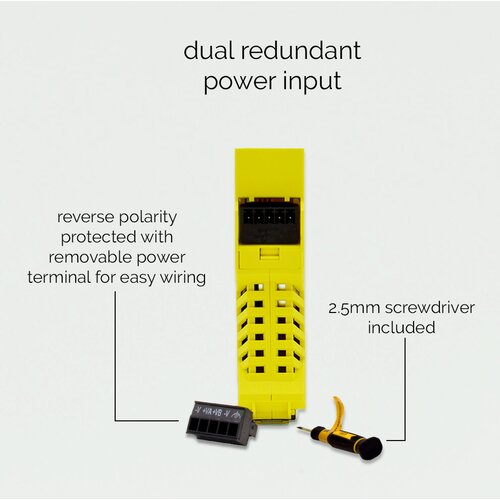

Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°F to +176°F

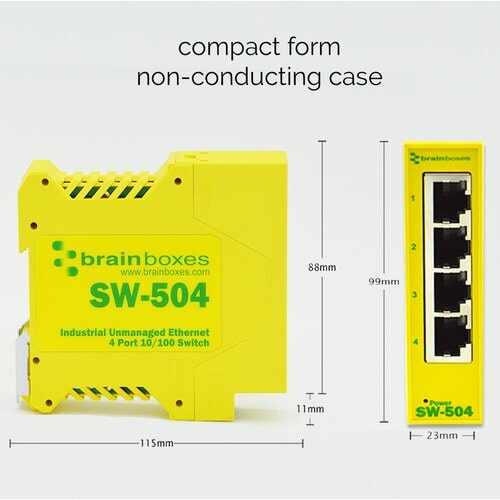

Slim Footprint Case, only 22.5mm wide

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°F to 176°F and dual input redundant power supply.

Tech Specs

INDUSTRIAL ETH 4PORT SWITCH - 22 F+176 DEG F GALVANIC ISOLATION specifications
Depth	3.9"
Width	4.6"
Height	0.9"
Modular	No
Brand Name	Brainboxes
Manageable	No
Stack Port	No
Form Factor	Rail-mountable
Uplink Port	No
Manufacturer	Brainboxes Limited
Power Source	USB
Product Name	Industrial Ethernet 4 Port Switch DIN Rail Mountable

Show all 30 specs

Product Type	Ethernet Switch
Product Model	SW-504
TAA Compliant	Yes
Layer Supported	2
Package Contents	<ul> <li>Industrial Ethernet 4 Port Switch DIN Rail Mountable</li> <li>Quick Start Guide</li> </ul>
PoE (RJ-45) Port	No
Country of Origin	United Kingdom
Network Technology	10/100Base-TX
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair
Weight (Approximate)	4.41 oz
Environmentally Friendly	Yes
Manufacturer Part Number	SW-504
Certifications & Standards	<ul><li>CE</li><li>CCC-Mark</li><li>C-Tick</li><li>Microsoft Certified Gold Partner</li><li>METL</li><li>AEO (C-TPAT)</li></ul>
Port/Expansion Slot Details	4 x Fast Ethernet Network
Manufacturer Website Address	http://www.brainboxes.com
Total Number of Network Ports	4
Number of Network (RJ-45) Ports	4
