ETHERNET TO 16 DIGITAL INPUTS TEMP RANGE - 22 DEG F TO+176 DEG F

SKU: TE5917VPN: ED-516

Limited Stock

$276.83

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

16 Digital Inputs and a RS485 Gateway Port
Monitor any input from TTL to high voltage high current industrial devices
Factory floor process control and automation, Integrated DIN rail mount
Supports simple ASCII or industry standard Modbus TCP
-30°C to +80°C Temperature range
Software APIs for Visual Basic, C# and more

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Ethernet to DIO device: 16 non-isolated digital input channels. Outputs each group of 4 lines has its own common rail. Powerful ARM 80 MHz, 32 Bit CPU.

The device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the device using Microsoft .NET framework Visual Basic, C#, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The device can be installed as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications.

Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'.

The ED product range is designed for harsh environments. The digital output port line are implemented as protected output circuits, providing current overload and short circuit protection, voltage surge, overload and open circuit protection and over temperature protection to allow the widest possible usage and range of devices.

Tech Specs

ETHERNET TO 16 DIGITAL INPUTS TEMP RANGE - 22 DEG F TO+176 DEG F specifications
Depth	4"
Width	5.1"
Height	0.9"
Brand Name	Brainboxes
Manufacturer	Brainboxes Limited

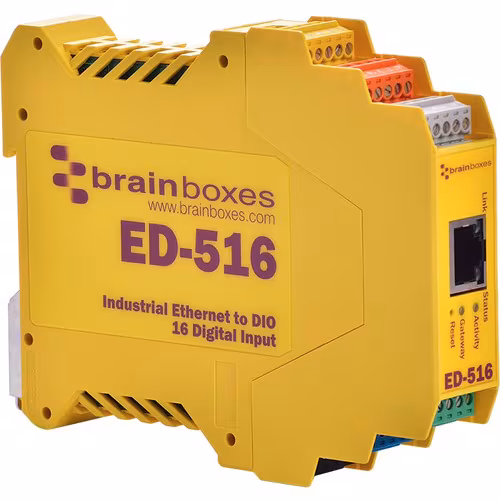

Product Name	Ethernet to 16 Digital Inputs + RS485 Gateway
Product Type	Ethernet To Digital IO Module
Product Model	ED-516
Package Contents	<ul> <li>Ethernet to 16 Digital Inputs + RS485 Gateway</li> <li>Installation CD (with Manual, Microsoft Signed Drivers & Utilities)</li> <li>Quick Start Guide</li> </ul>
Country of Origin	United Kingdom
Weight (Approximate)	4.73 oz
Additional Information	<p><b>IO Channels </b></p> <ul> <li>IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) </li> <li>Description 16 Digital Inputs </li> <li>Digital Inputs 16 </li> <li>Digital Outputs 0 </li> <li>Analog Inputs 0 </li> <li>Analog Outputs 0</li> </ul> <p><b>Digital IO </b></p> <ul> <li>Input Logic Level 0 -30.0V to +1.0V </li> <li>Input Logic Level 1 +2.0V to +30V </li> <li>Input Latches Triggered by user programmable positive or negative edges, stays true until acknowledged </li> <li>Input Counter User progammable- counts positive or negative transitions up to 200Hz </li> <li>Digital Output Type N/A </li> <li>Maximum Output Load Voltage N/A </li> <li>Maximum Output Current Sink 0.85A per channel, Max 6.8A per device </li> </ul> <p><b>Serial Port </b></p> <ul> <li>Serial Gateway RS485 NuDam/ADAM compatible expansion port </li> </ul> <p><b>Network </b></p> <ul> <li>Number of Ports 1 </li> <li>Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) </li> <li>Network Protocols ICMP, IP, TCP, DHCP, HTTP </li> <li>Protection 1500V Magnetic Isolation between ports and network </li> </ul> <p><b>Power </b></p> <ul> <li>Power Input 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected </li> <li>Power Supply 1 Description Global Power Supply - PW-600 </li> <li>Power Supply 2 Description Power supply PW-650 </li> <li>Max Input 35 Volts </li> </ul> <p><b>General </b></p> <ul> <li>Operating Temperature Range -30 °C to +80 °C / -22 °F to +176 °F </li> <li>Industrial Standard Yes </li> <li>Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F </li> <li>Galvanic Isolation No</li> </ul> <p><b>Operating Systems</b></p> <ul> <li>Microsoft Windows 10</li> <li>Microsoft Windows 8 32 bit & 64 bit Editions</li> <li>Microsoft Windows 7 32 bit & 64 bit Editions</li> <li>Windows Server 2008 32 bit & 64 bit Editions</li> <li>Windows Vista 32 bit & 64 bit Editions</li> <li>Windows XP 32 bit & 64 bit Editions</li> </ul>
