INDUSTRIAL ETHERNET 5PORT SW -22 TO+176 DEGF GALVANIC ISOLATION
$100.95$91.45
BRAINBOXES
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO +140F
SKU: 7WF617VPN: SW-015
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO +140F
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO... Key Features
- 5 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
- Bi-directional data flow at super-fast speed
- Small Footprint Case, only 23mm wide, 94mm deep
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO... Overview
Compact 5 port Gigabit Ethernet unmanaged switch.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
5 PORT GIGABIT ETHERNET SWITCH TEMPERATURE RANGE +14F TO... Tech Specs
| Depth | 4" |
|---|---|
| Width | 4.2" |
| Height | 1" |
| Brand Name | Brainboxes |
| Manageable | No |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Brainboxes Limited |
| Power Source | Power Supply |
| Product Name | Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| Product Model | SW-015 |
| Layer Supported | 2 |
Show all 26 specsShow fewer

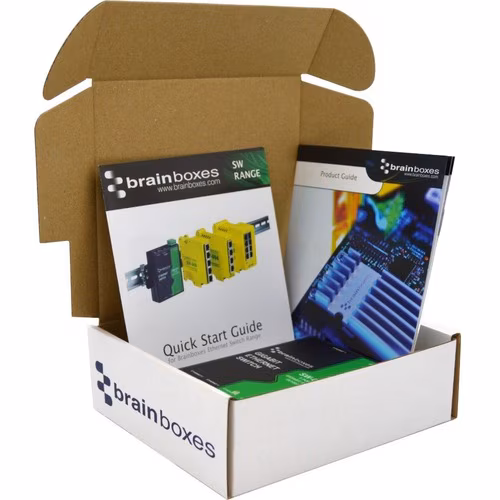

| Package Contents | <ul> <li>Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable</li> <li>Quick Start Guide</li> </ul> |
|---|---|
| Country of Origin | United Kingdom |
| Power Consumption | 3.60 W |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 4.55 oz |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SW-015 |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Manufacturer Website Address | http://www.brainboxes.com |
| Total Number of Network Ports | 5 |
| Redundant Power Supply Supported | Yes |
