HDMI OVER CAT5EXTENDER WALLPLATE
SKU: UN5069VPN: VE806

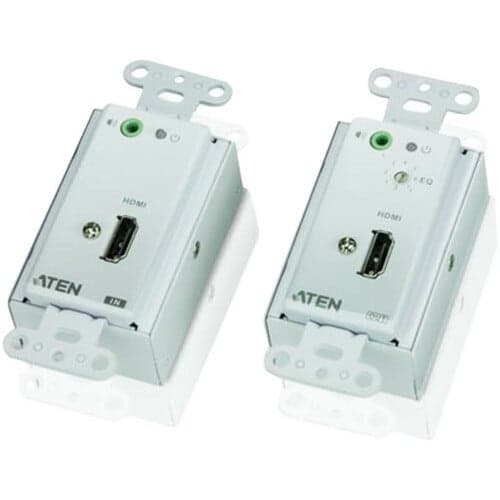

HDMI OVER CAT5EXTENDER WALLPLATE
Key Features
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- 1920 x 1080 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The VE806 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum feasibility and usage convenience
- 1 output devices supported for maximum productive usability
- 196.85 ft maximum operating distance for reliable coverage and maximum portability
- Full HD graphics mode for stunning, lively video quality
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The VE806 HDMI Over Cat 5 Extender Wall Plate extends HDMI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE806 combination can further extend the distance or multiply sources/displays.
The VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE806's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.
Tech Specs
| Length | 4.1" |
|---|---|
| HDMI In | Yes |
| HDMI Out | Yes |
| Brand Name | ATEN |
| Form Factor | Wall Mountable |
| Manufacturer | ATEN Technology, Inc |
| Product Name | HDMI Over Cat 5 Extender Wall Plate |
| Product Type | Video Extender Transmitter/Receiver |
| Input Voltage | 9 V DC |
| Product Model | VE806 |
| Graphics Modes | Full HD |
| Network (RJ-45) | Yes |
Show all 31 specsShow fewer
| Package Contents | <ul><li>1 x VE806T HDMI Over Cat 5 Extender Wall Plate</li><li>1 x VE806R HDMI Over Cat 5 Extender Wall Plate</li><li>1 x Terminal Block Connector</li><li>1 x Power Adapter</li><li>1 x User Instructions</li></ul> |
|---|---|
| Product Material | Metal |
| Country of Origin | Taiwan |
| Transmitter Width | 1.73" |
| Transmitter Height | 1.57" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | VE806 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Operating Distance | 196.85 ft |
| Twisted Pair Cable Standard | Category 5e |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Network (RJ-45) Ports | 4 |
| Transmitter Weight (Approximate) | 6 oz |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
