ATEN TECHNOLOGIES
HDMI HDBASET-LITE RECEIVER W/ SCALER
SKU: 3F1606VPN: VE805R
HDMI HDBASET-LITE RECEIVER W/ SCALER
Key Features
- Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The VE805R video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 output devices supported for maximum feasibility and usage convenience
- 196.85 ft maximum operating distance for feasible operation and optimal coverage
- Rack-mountable video extender transmitter/receiver allows maximum space utilization with easy and convenient access to the equipment
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

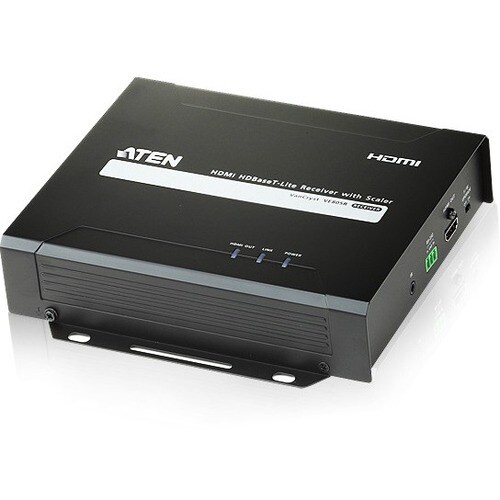

VE805R
HDMI HDBaseT-Lite Receiver with Scaler(HDBaseT Class B)
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
Tech Specs
| HDMI Out | Yes |
|---|---|
| Brand Name | ATEN |
| Form Factor | Rack-mountable |
| Serial Port | Yes |
| Manufacturer | ATEN Technology, Inc |
| Product Name | VE805R HDMI HDBaseT-Lite Receiver with Scaler |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | VE805R |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>VE805R HDMI HDBaseT-Lite Receiver with Scaler</li> <li>1 x Power Adapter</li> <li>1 x IR Transmitter</li> <li>1 x IR Receiver</li> <li>1 x Terminal Block</li> <li>1 x User Instructions</li> </ul> |
| Transmitter Depth | 7.20" |
| Transmitter Width | 6.70" |
Show all 24 specsShow fewer
| Transmitter Height | 1.70" |
|---|---|
| Media Type Supported | Twisted Pair |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | VE805R |
| Maximum Operating Distance | 196.85 ft |
| Twisted Pair Cable Standard | Category 6a |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Network (RJ-45) Ports | 1 |
| Transmitter Weight (Approximate) | 1.85 lb |
| Number of Output Devices Supported | 1 |
