ATEN TECHNOLOGIES
HDMI HDBASET LITE EXTENDER UP TO 230FT
SKU: ZM1998VPN: VE801
HDMI HDBASET LITE EXTENDER UP TO 230FT
Key Features
- Video Extender Transmitter/Receiver is a reliable audio/video transmission extending solution
- 4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- The VE801 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 1 input devices supported for maximum productive usability
- 1 output devices supported to better accommodate your specific requirements
- 70.87" maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for an immersive and sharp viewing experience
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

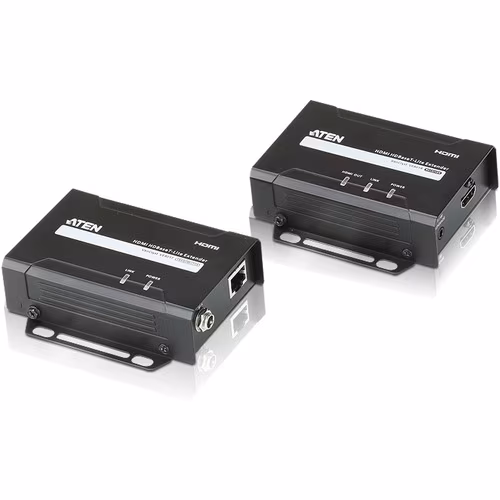

The VE801 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | ATEN |
| Form Factor | Rack-mountable |
| Manufacturer | ATEN Technology, Inc |
| Product Line | VanCryst |
| Product Name | HDMI HDBaseT-Lite Extender (HDBaseT Class B) |
| Product Type | Video Extender Transmitter/Receiver |
| Input Voltage | 5 V DC |
| Product Model | VE801 |
| Graphics Modes | 4K |
| Product Family | VanCryst |
Show all 33 specsShow fewer
| Network (RJ-45) | Yes |
|---|---|
| Package Contents | <ul><li>1 x VE801T HDMI HDBaseT-Lite Extender</li><li>1 x VE801R HDMI HDBaseT-Lite Extender</li><li>2 x Power Adapters</li><li>1 x User Instructions</li></ul> |
| Product Material | Metal |
| Country of Origin | Taiwan |
| Transmitter Depth | 4.06" |
| Transmitter Width | 3.43" |
| Transmitter Height | 1.18" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | VE801 |
| Maximum Video Resolution | 4096 x 2160 |
| Maximum Operating Distance | 70.87" |
| Twisted Pair Cable Standard | Category 6a |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 1.08 lb |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
