HDMI HDBASET EXTENDER W/ POH/BI-DIRECTIONAL RS232/IR 330FT.

SKU: 2GF566VPN: VE1812

In Stock

$592.00$424.85

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Supports HDBaseT Long Reach Mode - Up to a maximum range of 150 meters @ 1080p
4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
HDBaseT Anti-jamming - resists signal interference during high - quality video transmission using HDBaseT technology
POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel - Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

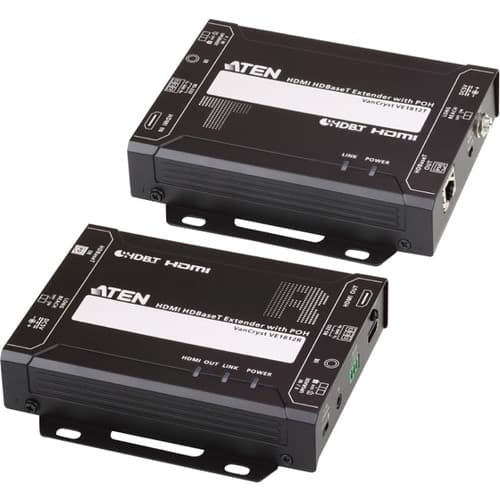

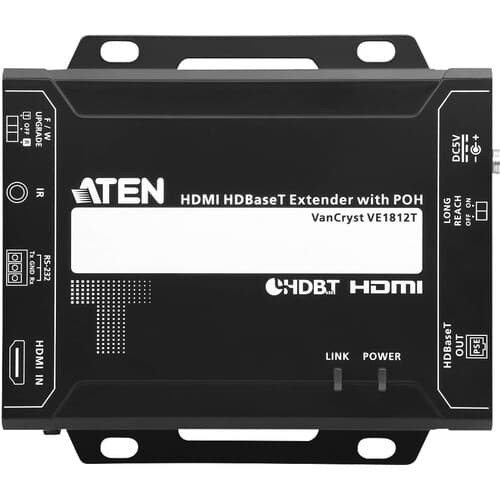

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

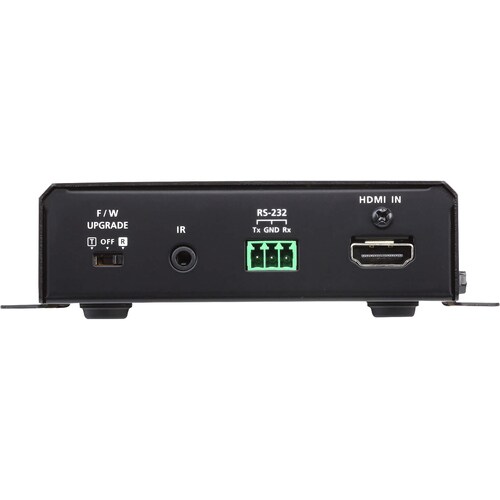

The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Tech Specs

HDMI HDBASET EXTENDER W/ POH/BI-DIRECTIONAL RS232/IR 330FT. specifications
HDMI In	Yes
HDMI Out	Yes
Brand Name	ATEN
Form Factor	Rack-mountable
Serial Port	Yes
Manufacturer	ATEN Technology, Inc
Product Line	VanCryst
Product Name	HDMI HDBaseT Extender with POH (4K@100m) (HDBaseT Class A)
Product Type	Video Extender Transmitter/Receiver
Product Model	VE1812
Graphics Modes	4K
Product Family	VanCryst

Show all 34 specs

Receiver Depth	5.53"
Network (RJ-45)	Yes
Package Contents	<ul> <li>1 x VE1812 HDMI HDBaseT Transmitter with POH</li> <li>1 x VE1812 HDMI HDBaseT Receiver with POH</li> <li>1 x Power Adapter</li> <li>1 x IR Transmitter</li> <li>1 x IR Receiver</li> <li>2 x RS-232 Terminal Blocks</li> <li>1 x User Instructions</li> </ul>
Country of Origin	Taiwan
Transmitter Depth	5.53"
Transmitter Width	4.84"
Transmitter Height	1.18"
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Connectivity Technology	Wired
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	VE1812
Maximum Video Resolution	3840 x 2160
Maximum Operating Distance	492.13 ft
Twisted Pair Cable Standard	Category 6a
Manufacturer Website Address	http://www.aten.com/us/en/
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	2.03 lb
Number of Input Devices Supported	1
Number of Output Devices Supported	1
