ATEN TECHNOLOGIES

HDBASET LITE VE802 TRANSMITTER

SKU: 3F1605VPN: VE802T

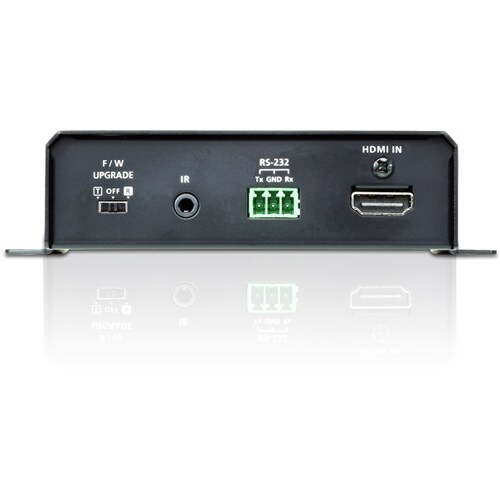

HDBASET LITE VE802 TRANSMITTER

Key Features

  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time
  • Rack- Mountable
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.

Tech Specs

HDBASET LITE VE802 TRANSMITTER specifications
HDMI InYes
Brand NameATEN
Form FactorRack-mountable
Serial PortYes
ManufacturerATEN Technology, Inc
Product LineVanCryst
Product NameHDMI HDBaseT-Lite Transmitter with POH (HDBaseT Class B)
Product TypeVideo Extender Transmitter
Product ModelVE802T
Graphics Modes4K
Product FamilyVanCryst
Network (RJ-45)Yes
Show all 28 specs
Package Contents<ul> <li>HDMI HDBaseT-Lite Transmitter with POH (HDBaseT Class B)</li> <li>1 x Power Adapter</li> <li>1 x IR Transmitter</li> <li>1 x Terminal Block</li> <li>1 x User Instructions</li> </ul>
Transmitter Depth5.35"
Transmitter Width3.98"
Transmitter Height1.14"
Media Type SupportedTwisted Pair
Number of HDMI Inputs1
Connectivity TechnologyWired
Environmentally FriendlyYes
Manufacturer Part NumberVE802T
Maximum Video Resolution4096 x 2160
Maximum Operating Distance229.66 ft
Twisted Pair Cable StandardCategory 6a
Manufacturer Website Addresshttp://www.aten.com/us/en/
Number of Network (RJ-45) Ports1
Transmitter Weight (Approximate)15.52 oz
Number of Input Devices Supported1
