ETHERNET TO TO 4 ANALOG I/O SELECT CURRENT/VOLTAGE -22 +176F

SKU: 8C8753VPN: ED-560

Limited Stock

$467.97

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

4 Analogue Outputs - individually selectable as Current or Voltage
Precision 0-10V and 4-20mA outputs
Control instantly from any web-browser
-40°F to +176°F Operating temperature range
Use with Modbus or ASCII commands

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

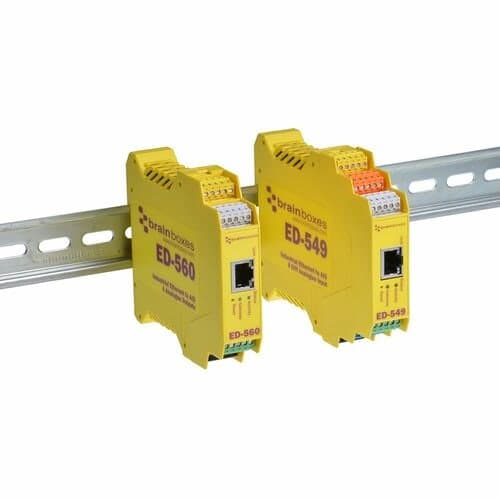

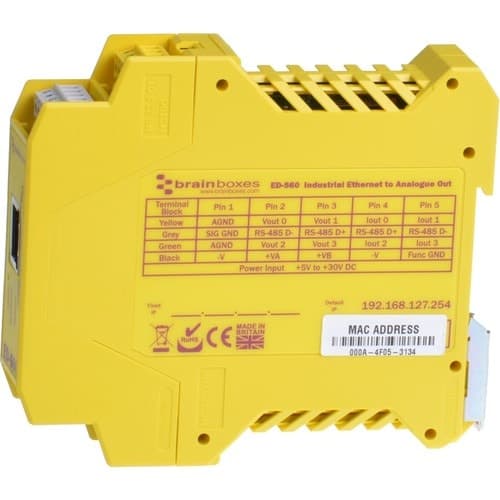

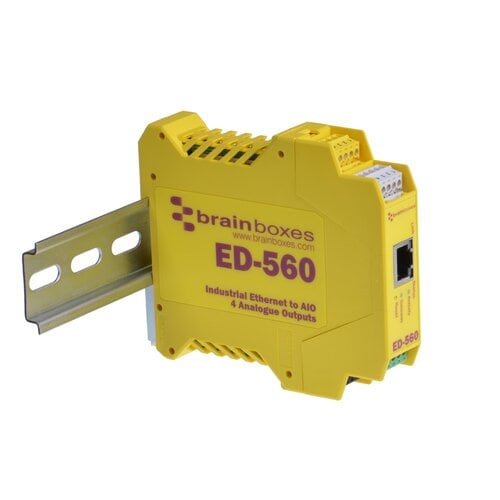

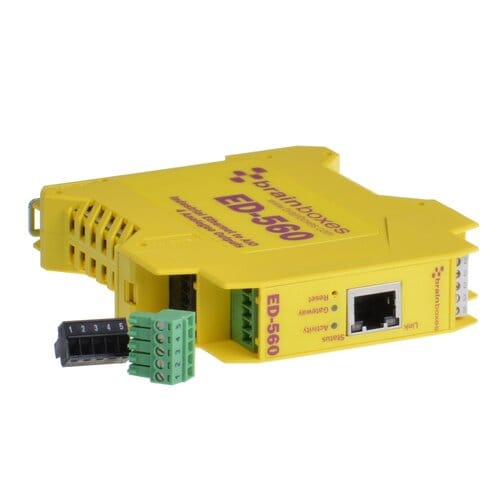

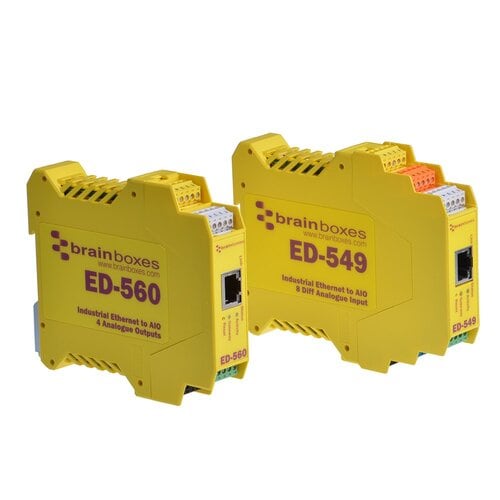

Overview

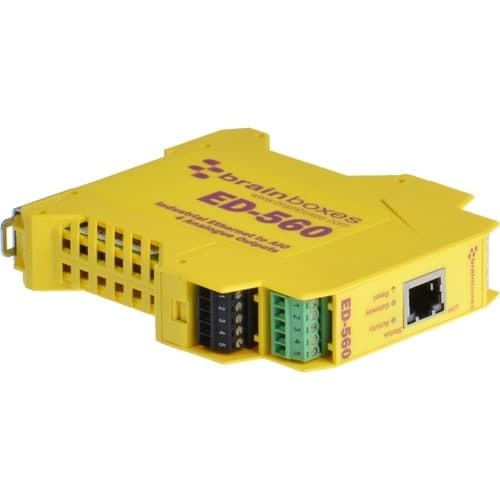

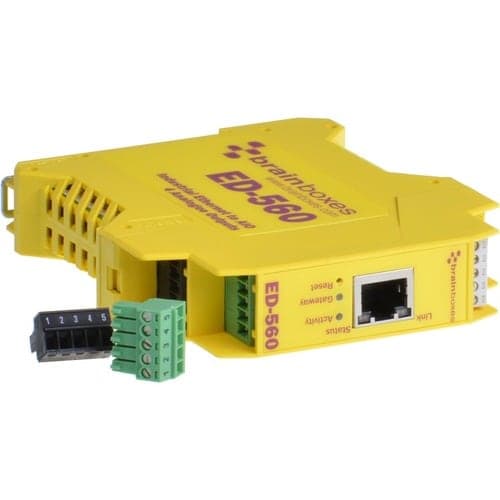

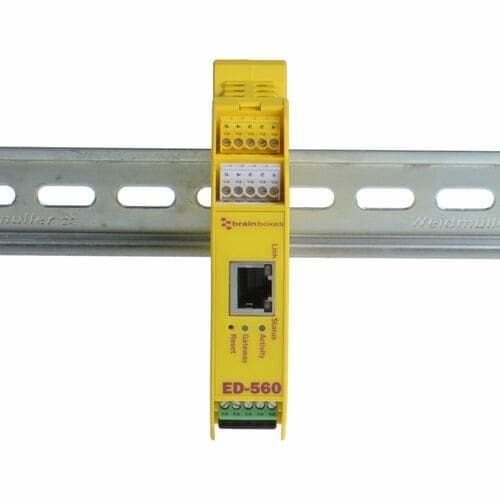

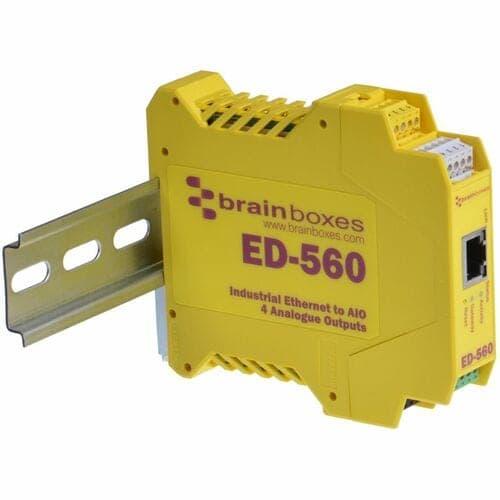

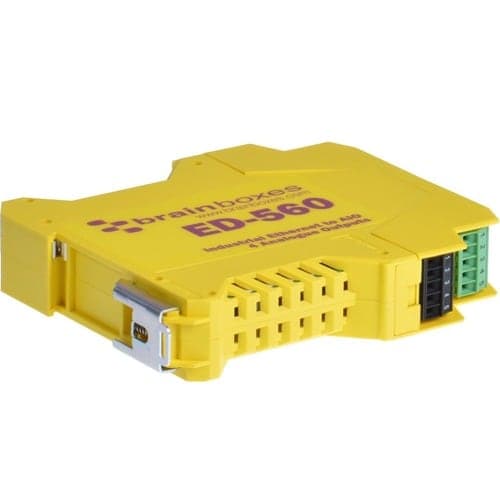

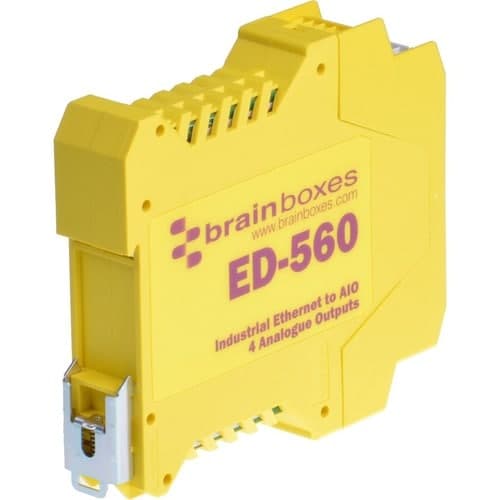

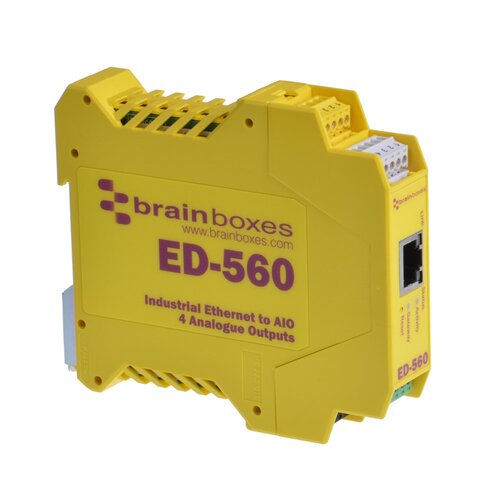

The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents.

Tech Specs

ETHERNET TO TO 4 ANALOG I/O SELECT CURRENT/VOLTAGE -22 +176F specifications
Depth	3.9"
Width	4.5"
Height	0.9"
Brand Name	Brainboxes
Manufacturer	Brainboxes Limited
Product Name	Ethernet to 4 Analogue Outputs + RS485 Gateway
Product Type	Ethernet To Digital IO Module
Product Model	ED-560
Package Contents	<ul> <li>Ethernet to 4 Analogue Outputs + RS485 Gateway</li> <li>Installation CD Including Manual, Microsoft Signed Drivers & Utilities</li> <li>Quick Start Guide</li> </ul>
Country of Origin	United Kingdom
Weight (Approximate)	4.37 oz
Additional Information	<p><b>IO Channels </b></p> <ul> <li>IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) </li> <li>Description 4 Analogue Outputs </li> <li>Digital Inputs 0 </li> <li>Digital Outputs 0 </li> <li>Analog Inputs 0 </li> <li>Analog Outputs 4 </li> <li>Watchdog When device comms is lost, outputs can be set to predetermined state </li> <li>Power On Values Outputs can be set to predetermined values on power on</li> </ul> <p><b>Analog IO</b></p> <ul> <li>Output Voltage Ranges 0-10V </li> <li>Output Current Ranges 0-20mA or 4-20mA </li> <li>Output Current Type Sink (requires external current source) </li> <li>Output Measurement Resolution 12 Bit </li> <li>Max Output Load Current (voltage mode) ±5mA </li> <li>Max Output Load Voltage (current mode) 30V </li> <li>Output Accuracy 0.1% of FSR @ 25°C / 77 °F </li> <li>Output Voltage Drift (Voltage Mode) Zero drift less than 30µV/°C, span drift less than 25ppm/°C </li> <li>Output Current Drift (Current Mode) Zero drift less than 0.2µA/°C, span drift less than 25ppm/°C </li> <li>Output Slew Rate Voltage Mode: 170 kV/s, Current Mode: 4.3A/s </li> <li>Output Settling Time Voltage Mode: 350µs, Current Mode: 4 µs</li> </ul> <p><b>Serial Port </b></p> <ul> <li>Serial Gateway RS485 NuDam/ADAM compatible expansion port </li> </ul> <p><b>Network </b></p> <ul> <li>Number of Ports 1 </li> <li>Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) </li> <li>Network Protocols ICMP, IP, TCP, DHCP, HTTP </li> <li>Protection 1500V Magnetic Isolation between ports and network </li> </ul> <p><b>Power </b></p> <ul> <li>Power Input 5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected </li> <li>Power Supply 1 Description Global Power Supply - PW-600 </li> <li>Power Supply 2 Description Power supply PW-650 </li> <li>Max Input 35 Volts </li> <li>Power Consumption 2.5 Watt Max </li> </ul> <p><b>General </b></p> <ul> <li>Operating Temperature Range -30 °C to +80 °C / -22 °F to +176 °F </li> <li>Industrial Standard Yes </li> <li>Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F </li> <li>Ambient Relative Humidity 5-95% (Non-condensing) </li> <li>Power Consumption Input +5V to +30V DC 100mA@24V 2.5W max</li> </ul> <p><b>Operating Systems</b></p> <ul> <li>Microsoft Windows 10</li> <li>Suitable for any device with a Web Browser</li> <li>Microsoft Windows 8 32 bit & 64 bit Editions</li> <li>Windows Server 2012</li> <li>Raspberry Pi</li> <li>Android</li> <li>Windows Server 2008 R2</li> <li>Microsoft Windows 7 32 bit & 64 bit Editions</li> <li>iOS</li> <li>Windows Server 2008 32 bit & 64 bit Editions</li> <li>Windows Vista 32 bit & 64 bit Editions</li> <li>Mac OS X</li> <li>Windows XP 32 bit & 64 bit Editions</li> <li>Microsoft Windows 2000</li> <li>Linux</li> </ul>

Show all 16 specs

Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	ED-560
Manufacturer Website Address	http://www.brainboxes.com
