ATEN TECHNOLOGIES
DVI DUAL VIEW KVM EXTENDER
SKU: UN5059VPN: CE604

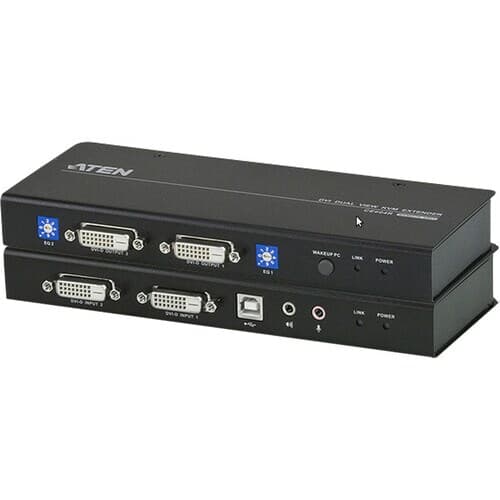

DVI DUAL VIEW KVM EXTENDER
Key Features
- Local and Remote Units connect at distances up to 60 m using two Cat 5e cables
- Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable
- Supports Dual View video source transmission (one PC with two video output ports)
- Audio Enabled - supports stereo speakers and microphone
- Supports Real DDC bypass and ATEN default EDID technology - set up various configurations via hotkeys
- Supports PC wakeup function via one pushbutton or hotkey
- RS-232 serial channel - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps)
- Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A
- Superior video quality - up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m
- Manual compensation control to adjust video signal quality in order to compensate for distance
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC Wake Up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, making it an effi cient and flexible solution.
Tech Specs
| DVI | Yes |
|---|---|
| USB | Yes |
| Headphone | Yes |
| Brand Name | ATEN |
| Microphone | Yes |
| Graphic Mode | WUXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Name | DVI Dual View KVM Extender |
| Product Type | KVM Console/Extender |
| Input Voltage | 5.3 V DC |
| Receiver Depth | 7.95" |
| Receiver Width | 3.43" |
Show all 32 specsShow fewer
| Network (RJ-45) | Yes |
|---|---|
| Receiver Height | 0.98" |
| Package Contents | <ul><li>DVI Dual View KVM Extender</li><li>1 x USB DVI KVM Cable Set</li><li>1 x DVI Cable</li><li>2 x Power Adapters</li><li>1 x Mounting Kit</li><li>1 x User Instructions</li></ul> |
| Country of Origin | Taiwan |
| Transmitter Depth | 7.95" |
| Transmitter Width | 3.36" |
| Transmitter Height | 0.98" |
| Number of DVI Ports | 4 |
| Number of USB Ports | 3 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE604 |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 196.85 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 1 |
| Receiver Weight (Approximate) | 1.06 lb |
| Number of Network (RJ-45) Ports | 4 |
| Number of Remote Users Supported | 1 |
| Transmitter Weight (Approximate) | 1.06 lb |
