ATEN TECHNOLOGIES
CAT5 USB CONSOLE EXTENDER UP TO 650FT
SKU: 7U0887VPN: CE750A
CAT5 USB CONSOLE EXTENDER UP TO 650FT
Key Features
- Local and Remote units connect at distances up to 200 meters using Cat 5e cable
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- USB keyboard and USB mouse ports
- RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
- Supports stereo speakers and stereo microphone
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes
- Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
- Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

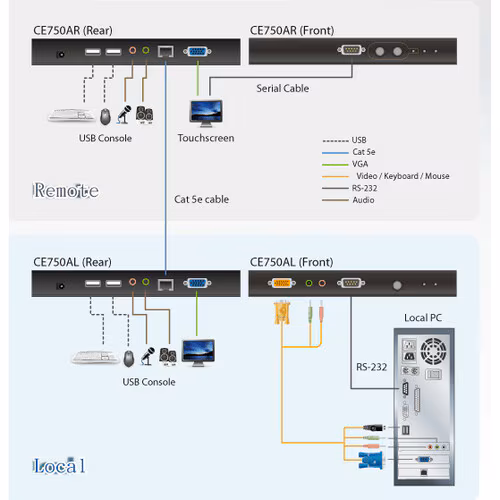

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.
The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
Tech Specs
| USB | Yes |
|---|---|
| VGA | Yes |
| Brand Name | ATEN |
| Graphic Mode | WUXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Name | USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m) |
| Product Type | KVM Console/Extender |
| Input Voltage | 5.3 V DC |
| Product Model | CE750A |
| Receiver Depth | 7.95" |
| Receiver Width | 3.35" |
| Network (RJ-45) | Yes |
Show all 32 specsShow fewer
| Receiver Height | 0.98" |
|---|---|
| Package Contents | <ul> <li>1 x CE750AL USB KVM Extender (Local Unit)</li> <li>1 x CE750AR USB KVM Extender (Remote Unit)</li> <li>1 x Custom KVM Cable Set</li> <li>2 x Power Adapters</li> <li>1 x Mounting Kit</li> <li>1 x User Instructions</li> </ul> |
| Country of Origin | Taiwan |
| Transmitter Depth | 7.95" |
| Transmitter Width | 3.40" |
| Transmitter Height | 0.98" |
| Number of USB Ports | 4 |
| Number of VGA Ports | 2 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE750A |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 656.17 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 1 |
| Receiver Weight (Approximate) | 1.04 lb |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Remote Users Supported | 1 |
| Transmitter Weight (Approximate) | 1.04 lb |
