CYBERPOWER

BATTERY CABINET MODULAR 3 LAYER FOR 10-20KVA 3-PHASE UPS

SKU: 9MF433VPN: BCT3L9N125

Out of Stock

$4,372.00$3,017.45

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Battery Type: VRLA
Warranty: 1 year

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

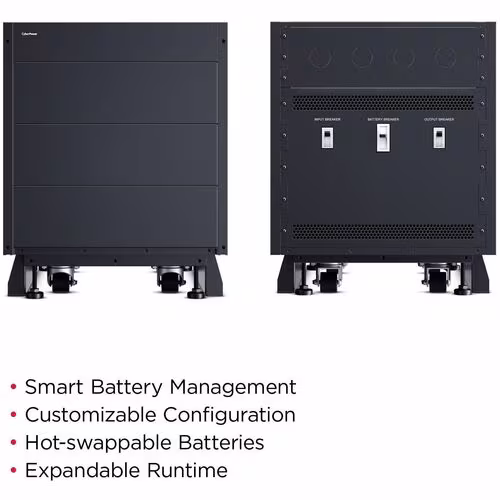

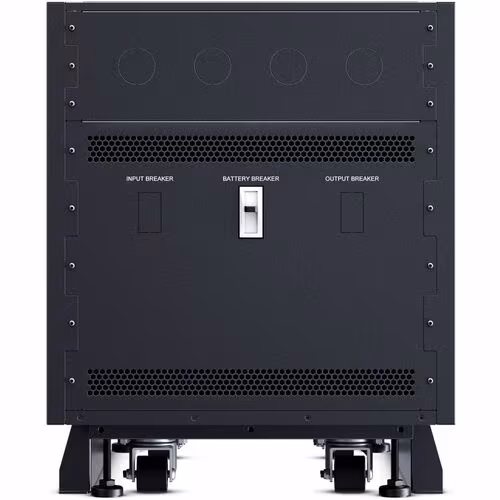

The CyberPower BCT3L9N125 3-Phase Modular UPS Battery Cabinet can hold up to 6 battery modules (BM120V30ATY). These 3-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.

Tech Specs

BATTERY CABINET MODULAR 3 LAYER FOR 10-20KVA 3-PHASE UPS specifications
Depth	30.5"
Width	19.1"
Height	23.9"
Brand Name	CyberPower
Form Factor	Rack/Tower/Stack
Rack Height	11U
Color Family	Black
Manufacturer	CyberPower Systems, Inc
Product Name	BCT3L9N125 Battery Cabinet
Product Type	Battery Cabinet
Hot Swappable	Yes
Product Color	Black

Show all 24 specs

Product Model	BCT3L9N125
Output Voltage	240 V DC
Weight (Approximate)	134.70 lb
Additional Information	<li>Battery Module Capacity Maximum : 6</li><li>Physical Dimensions - (WxHxD) (cm) : 48.51 x 60.71 x 77.47 (cm)</li><li>Physical Dimensions - (WxHxD) (in) : 19.1 x 23.9 x 30.5 (in)</li><li>Physical Dimensions - (WxHxD) (mm) : 485 x 607 x 775 (mm)</li><li>Weight (kg) : 61.1</li><li>Weight (lb) : 134.7</li><li>Shipping Dimensions - (WxHxD) (cm) : 63.2 x 78.74 x 101.6 (cm)</li><li>Shipping - Dimensions (WxHxD, in) : 24.88 x 31 x 40 (in)</li><li>Shipping - Dimensions (WxHxD, mm) : 631.95 x 787.4 x 1016.0 (mm)</li><li>Shipping - Weight (kg) : 101.15</li><li>Shipping - Weight (lb) : 223</li><li>Power Module - Rack Units : 11U</li><li>Nominal Output Voltage : 240 VAC</li><li>Color : Black</li><li>Form Factor : Modular</li><li>Material of Construction : Metal</li><li>Mounting Hardware : Yes</li><li>Rack Height : 11U</li><li>Operating Elevation : 0 - 10000 ft (0 - 3048 m)</li><li>Operating Elevation Note : At ?1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m</li><li>Operating Relative Humidity : 0 - 95 % (non-condensing)</li><li>Operating Temperature : 32 - 104 °F (0 - 40 °C)</li><li>Operating Temperature Note : Battery life is halved for every 10°C increase above 20°C</li><li>Storage Battery Temperature Note : Optimum battery storage between -15°C and 20°C</li><li>Storage Relative Humidity : 0 - 95% (non-condensing)</li><li>Storage Temperature : 5 - 104 °F (-15 - 40 °C)</li><li>Environmental : RoHS Compliant</li><li>Safety : cTUVus</li><li>Product Warranty : 1 Year Limited Warranty</li>
Battery Characteristics	Valve Regulated Lead Acid (VRLA)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	BCT3L9N125
Certifications & Standards	Safety: cTUVus
Manufacturer Website Address	https://www.cyberpowersystems.com/
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
