ATEN TECHNOLOGIES
8PORT USB KVM CL5708 KVM SWITCH 1U RM
SKU: T24198VPN: CL5708M
8PORT USB KVM CL5708 KVM SWITCH 1U RM
Key Features

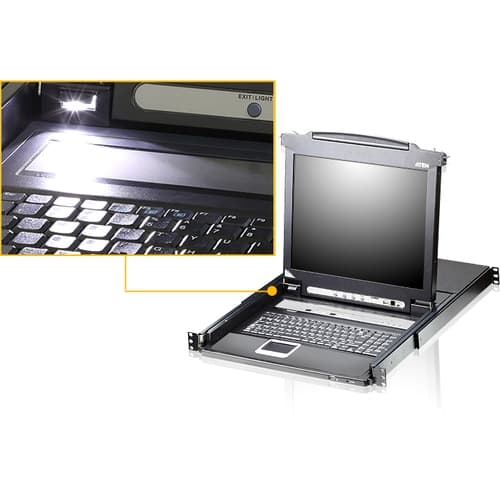

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

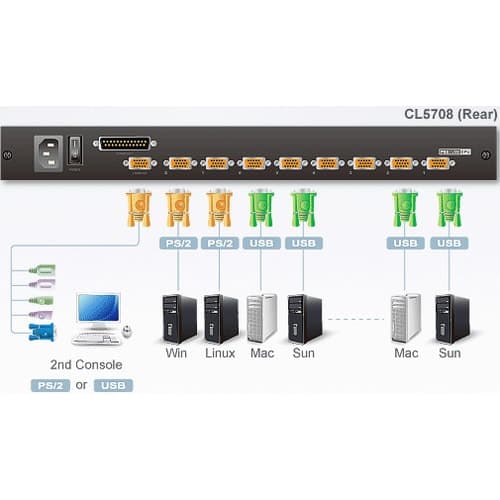

The CL5708M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console.

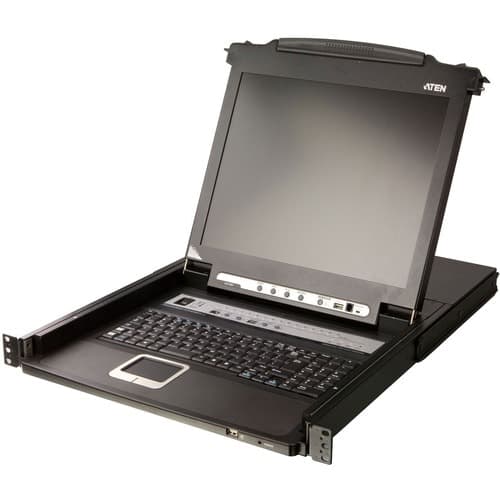

The CL5708M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 24.9" |
| Width | 18.9" |
| Height | 1.7" |
| Keyboard | Yes |
| Brand Name | ATEN |
| KVM Switch | Yes |
| Daisy Chain | Yes |
| Device Type | LCD Rack Console |
| Screen Mode | SXGA |
| Screen Size | 17" |
| Manufacturer | ATEN Technology, Inc |
Show all 28 specsShow fewer
| Product Line | Slideaway |
|---|---|
| Product Name | 8-Port 17in. Slideaway LCD KVM Switch |
| Product Type | LCD Rack Console |
| Product Model | CL5708M |
| Product Family | Slideaway |
| Package Contents | <ul><li>Slideaway CL5708 17" LCD Console 8-Port Combo KVM with Peripheral Sharing Technology</li><li>2 x Custom KVM Cable Sets (1 x PS/2, 1 x USB KVM cable, 1.8m long)</li><li>1 x 5-in-1 console cable</li><li>1 x Firmware Upgrade Cable</li><li>1 x Power Cord</li><li>1 x Grounding Wire</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li></ul> |
| Country of Origin | Taiwan |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LCD |
| Number of USB Ports | 2 |
| Pointing Device Type | TouchPad |
| Weight (Approximate) | 30.30 lb |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CL5708M |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 8 |
