ATEN TECHNOLOGIES

8PORT USB DP SINGLE DISPLAY PP4.0 SECURE KVM W/ CAC SUPPORT

SKU: 00HQ95VPN: CS1188DP4C

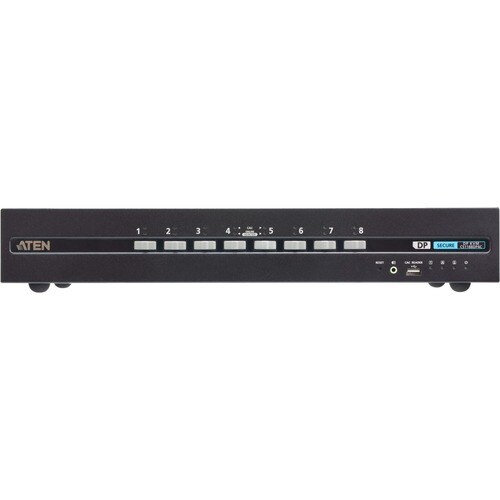

8PORT USB DP SINGLE DISPLAY PP4.0 SECURE KVM W/ CAC SUPPORT

Key Features

  • With this KVM Switchbox, avoid the constant switching of cables between sources
  • Switch between 8 computers and 1 local users
  • Up to 3840 x 2160 video resolution
  • The Built-in USB port enables easy connection with USB-compatible devices
  • Designed to be used as a desktop device
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS). With multi-layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Tech Specs

8PORT USB DP SINGLE DISPLAY PP4.0 SECURE KVM W/ CAC SUPPORT specifications
USBYes
Depth17"
Width8.1"
Height2.6"
Frequency60 Hz
Brand NameATEN
DisplayPortYes
Form FactorDesktop
ManufacturerATEN Technology, Inc
Product LineSecure
Product Name8-Port USB DisplayPort Secure KVM Switch with CAC (PSD PP v4.0 Compliant)
Product TypeKVM Switchbox
Show all 25 specs
Product ModelCS1188DP4C
Product FamilySecure
Package Contents<ul> <li>8-Port USB DisplayPort Secure KVM Switch with CAC (PSD PP v4.0 Compliant)</li> <li>1 x Power Cord</li> <li>1 x User Instructions</li> </ul>
Packaged Quantity1
Input Voltage Range100-240V
Number of USB Ports19
Weight (Approximate)6.61 lb
Number of DisplayPorts9
Manufacturer Part NumberCS1188DP4C
Maximum Video Resolution3840 x 2160
Manufacturer Website Addresshttp://www.aten.com/us/en/
Number of Computers Supported8
Number of Local Users Supported1
