ATEN TECHNOLOGIES

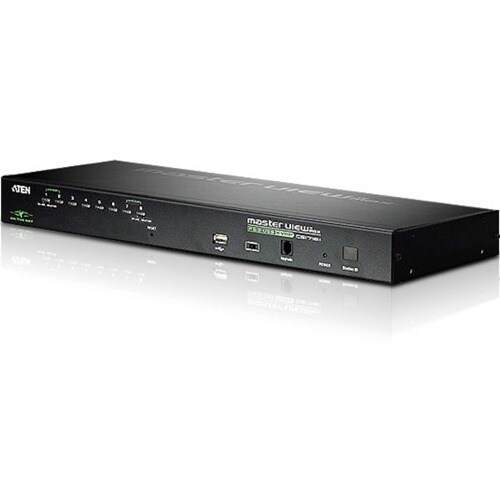

8PORT 1U USB-PS/2 KVM OVER IP
SKU: CT2209VPN: CS1708I
8PORT 1U USB-PS/2 KVM OVER IP
Key Features
- Up to 64 user accounts
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode - operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
- Firmware upgradable
- Backup and restore configuration and user account settings
- Event logging
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

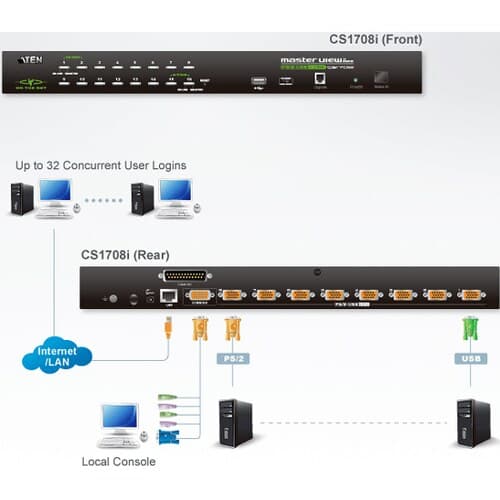

The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the message board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 17" |
| Width | 6.3" |
| Height | 1.7" |
| Brand Name | ATEN |
| Rack Height | 1U |
| Manufacturer | ATEN Technology, Inc |
| Product Name | CS1708i KVM Switchbox |
| Product Type | KVM Switchbox |
| Product Model | CS1708i |
| KVM Technology | Digital |
| Network (RJ-45) | Yes |
Show all 26 specsShow fewer
| Package Contents | <ul> <li>CS1708I KVM Switchbox</li> <li>2 x Custom KVM Cable Cables</li> <li>1 x Console Cable</li> <li>1 x Firmware Upgrade Cable</li> <li>1 x Grounding Wire</li> <li>1 x Rack Mount Kit</li> <li>1 x Power Adapter</li> <li>1 x User Manual</li> <li>1 x Quick Start Guide</li> <li>1 x Software CD</li> <li>1 x Foot Pad Set</li> </ul> |
|---|---|
| Country of Origin | Taiwan |
| Packaged Quantity | 1 |
| Number of USB Ports | 1 |
| Weight (Approximate) | 6.19 lb |
| Daisy Chain Supported | Yes |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CS1708I |
| Maximum Video Resolution | 2048 x 1536 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Remote Users Supported | 32 |
