ATEN TECHNOLOGIES
8PORT 1CONSOLE USB VGA DVI CS1768 KVM SWITCH W/ AUDIO
SKU: LB3848VPN: CS1768
8PORT 1CONSOLE USB VGA DVI CS1768 KVM SWITCH W/ AUDIO
Key Features
- One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
- KVM console supports a digital (DVI-D) or an analog (VGA) video output
- Computer ports support digital (DVI) and analog (VGA) video inputs* - mixed operation possible
- Cascadable to three levels - control up to 512 computers
- Multiview mode - stack up to four CS1768 units and display video from up to four monitors (dual view / triple view / quad view)
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- OSD Backup/Restore function - enables the administrator to back up the switch´s configuration and user profile information
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Two-level (Administrator/User) password authorization for enhanced security protection
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

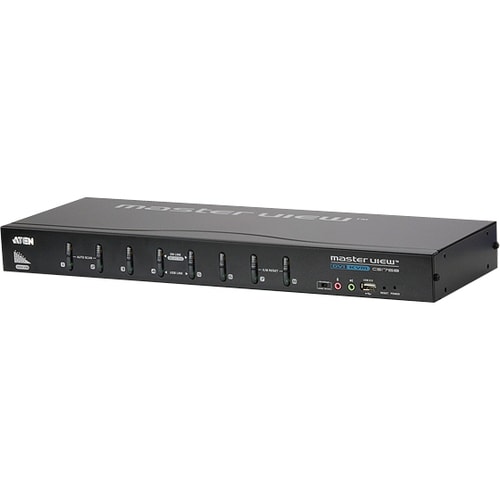

The CS1768 8-port USB DVI KVM Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels allowing up to 73 CS1768s to control up to 512 computers all from the original single console. In addition, the CS1768 comes with ATEN's new Video DynaSync technology, which optimizes display resolution.
Tech Specs
| DVI | Yes |
|---|---|
| VGA | Yes |
| Depth | 6.3" |
| Width | 17.2" |
| Height | 1.7" |
| Brand Name | ATEN |
| Microphone | Yes |
| Graphic Mode | QXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Name | KVM Switch |
| Product Type | KVM Switchbox |
| Input Voltage | 5.3 V DC |
Show all 23 specsShow fewer
| Product Model | CS1768 |
|---|---|
| Package Contents | <ul><li>KVM Switch</li><li>1 x F/W Upgrade Cable</li><li>1 x Power Cord</li><li>1 x Rack Mount Kit</li><li>1 x Grounding Wire</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li></ul> |
| Packaged Quantity | 1 |
| Number of DVI Ports | 9 |
| Number of VGA Ports | 1 |
| Weight (Approximate) | 6.20 lb |
| Daisy Chain Supported | Yes |
| Manufacturer Part Number | CS1768 |
| Maximum Video Resolution | 2048 x 1536 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 8 |
