8K HDMI SIGNAL BOOSTER/EXT F/F 8K60HZ 4K120HZ 4:4:4 HDR10+ 10M
8K HDMI SIGNAL BOOSTER/EXT F/F 8K60HZ 4K120HZ 4:4:4 HDR10+ 10M
Key Features
- Plug-and-play solution extends UHD HDMI video beyond standard cable limits
- Supports UHD resolutions up to 8K @ 60 Hz or 4K @ 120 Hz 10 meters from the source
- Supports advanced video formats including HDR10+, Dolby Vision, VRR, ALLM and QFT
- Verified with major 8K/4K TVs and displays from Samsung, LG, TCL, Hisense and Sony
- Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Extend 8K HDMI Signals Up to 10 Meters with Zero Loss
The B122-000-8K6 boosts HDMI 2.1 signals, including 8K/60 Hz, 4K/120 Hz and 1080p/240 Hz, over long distances using standard HDMI cables. The booster preserves signal integrity by maintaining full resolution, HDR and surround sound with no dropouts or degradation. It is recommended for digital signage or video presentations in schools, conference rooms, retail displays, trade show booths and anywhere else you need to display 8K video. It has been verified to work with major 8K/4K televisions and displays from Samsung, LG, TCL, Hisense and Sony. It also supports advanced formats such as VRR, ALLM and QFT.
Transmits 8K Video with HDR and 4:4:4 Color
The B122-000-8K6 supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz, along with 36-bit Deep Color (12 bits per channel) and DTS-HD Master Audio, Dolby TrueHD and 7.1-channel surround sound. It supports Dynamic HDR, including HDR10, HDR10+ and Dolby Vision, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream protected 8K content with no loss in resolution. This HDMI signal booster also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Note : The B122-000-8K6 supports key HDMI 2.1 features including 8K/60 Hz, 4K/120 Hz, HDR formats and VRR. Not all HDMI 2.1 features are supported.
Ready to Use Right from the Package, So You Can Plug and Play Immediately

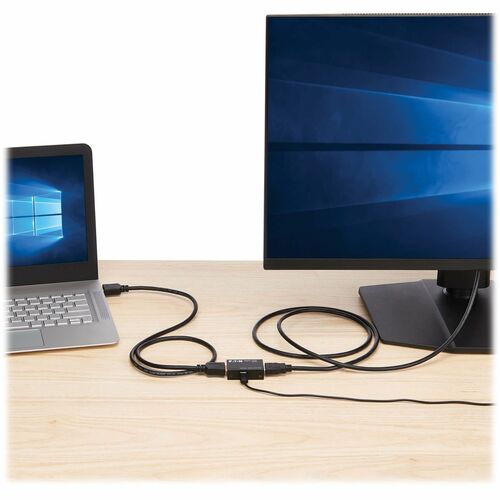

The plug-and-play unit requires no software to install. HDMI 2.1 cables capable of 8K (sold separately) for connecting the in-line signal booster between the source and display must be no longer than five meters (16.4 feet). The included USB-A to USB-C cable is required for powering the booster from a 5V USB source such as a USB port or power adapter (USB wall charger sold separately). The low-profile design allows the unit to fit comfortably inside a laptop bag for video presentations in large conference rooms, convention floors and lecture halls.
Tech Specs
| USB | Yes |
|---|---|
| HDMI In | Yes |
| HDMI Out | Yes |
| Brand Name | Tripp Lite series |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Name | 8K HDMI Signal Booster/Extender (F/F) - 8K 60 Hz, 4K 120 Hz, 4:4:4, HDR10+, Up to 10 m (32.8 ft.) |
| Product Type | Video Extender Transmitter |
| Product Color | Black |
| Product Model | B122-000-8K6 |
| Graphics Modes | 8K |
| Package Contents | <ul><li>B122-000-8K6 HDMI Signal Booster/Extender</li><li>USB-A to USB-C power cable</li><li>Installation instructions</li></ul> |
Show all 28 specsShow fewer
| Application/Usage | Notebook |
|---|---|
| Transmitter Depth | 1.90" |
| Transmitter Width | 1.20" |
| Transmitter Height | 0.60" |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Supported Video Modes | 1080p |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Manufacturer Part Number | B122-000-8K6 |
| Maximum Video Resolution | 7680 x 4320 |
| Maximum Operating Distance | 65.62 ft |
| Manufacturer Website Address | http://www.eaton.com |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
