EATON TRIPP LITE SERIES CONNECTIVIT

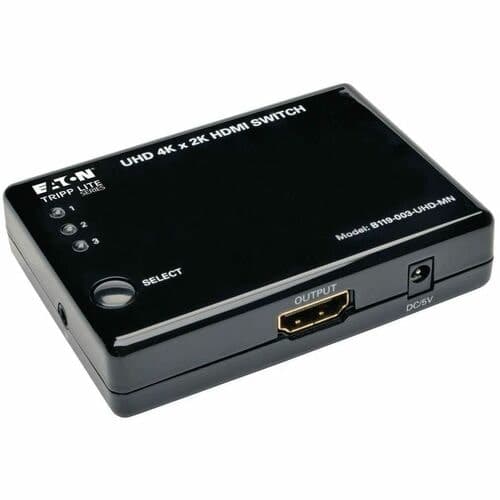

3PORT HDMI MINI VIDEO SWITCH AUDIO 4K X 2K UHD 24/30 HZ

SKU: 1R1858VPN: B119-003-UHD-MN

3PORT HDMI MINI VIDEO SWITCH AUDIO 4K X 2K UHD 24/30 HZ

Key Features

  • Switch source devices using buttons or included remote control
  • Switches to next port when current device is powered off
  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
  • Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
  • No software, drivers or external power supply required
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

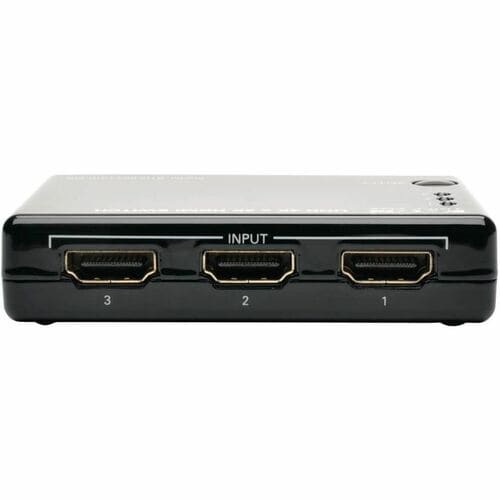

3-Port HDMI switch connects three HDMI source devices to one port on an HDMI monitor while allowing you to switch back and forth between each one. Three separate ports allow you to connect your Blu-ray player, video game system and cable/satellite DVR to one HDMI port on your high-definition TV. Or you can connect three computers or media centers to a monitor for displaying digital signage or presentations. IR extender receiver lets you hide the switch out of sight while still being able to switch devices using the remote. Energy-efficient design automatically switches to the next powered-on device when it's powered off. Hassle-free functionality requires no software, drivers or external power supply for immediate use. Switch supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz and 48-bit True Color, as well as DTS-HD, Dolby True-HD and 7.1-channel surround sound audio.

Tech Specs

3PORT HDMI MINI VIDEO SWITCH AUDIO 4K X 2K UHD 24/30 HZ specifications
Depth2.3"
Width3.2"
Height0.7"
HDMI InYes
HDMI OutYes
Brand NameTripp Lite series
ManufacturerEaton Corporation
Product Name3-Port HDMI Switch
Product TypeAudio/Video Switchbox
Product ModelB119-003-UHD-MN
Graphics Modes4K
Device SupportedTV
Show all 25 specs

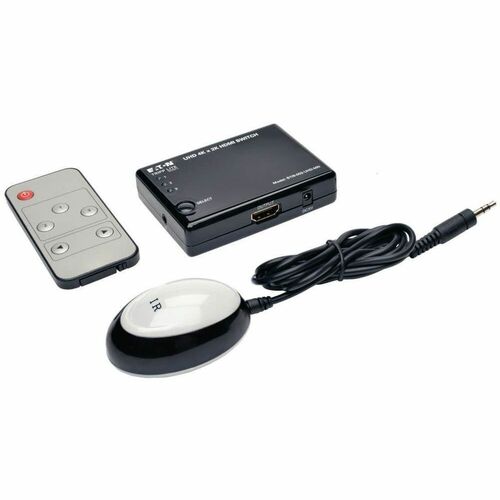

Package Contents<ul> <li>B119-003-UHD-MN 3-Port Mini HDMI Switch</li> <li>Remote control</li> <li>IR extender receiver</li> <li>Owner's manual</li> </ul>
Country of OriginVietnam
Packaged Quantity1
Weight (Approximate)1.92 oz
Number of HDMI Inputs3
Number of HDMI Outputs1
Connectivity TechnologyCable
Environmentally FriendlyYes
Manufacturer Part NumberB119-003-UHD-MN
Maximum Video Resolution3840 × 2160
Manufacturer Website Addresshttp://www.eaton.com
Number of Displays Supported1
Number of Input Devices Supported3
