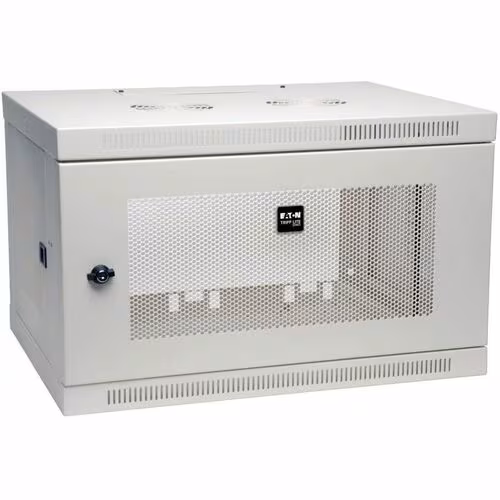

6U WALL MOUNT RACK ENCLOSURE SERVER CABINET WALLMOUNT WHITE

SKU: RA2819VPN: SRW6UW

In Stock

$396.50$235.47

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Maximum load capacity of 200 lb.
Locking steel cabinet vented at sides, front, top and bottom
Flow-through ventilation keeps equipment cool
Secures 6U of 19 in. rack equipment up to 16.5 in. deep
Mounts to wall or rolls on floor (with optional SRCASTER)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. The SRW6UW comes with a 5-year product warranty.

Tech Specs

6U WALL MOUNT RACK ENCLOSURE SERVER CABINET WALLMOUNT WHITE specifications
Depth	17.5"
Width	23.5"
Height	14.5"
Features	Cable Management
Brand Name	Tripp Lite series
Front Rail	Yes
Rack Depth	16.50"
Rack Width	19"
Form Factor	Wall Mountable
Rack Height	6U
Color Family	White
Manufacturer	Eaton Corporation

Show all 28 specs

Product Line	SmartRack
Product Name	White SmartRack 6U Wall-Mount Rack Enclosure Cabinet
Product Type	Rack Cabinet
Product Color	White
Product Model	SRW6UW
Product Family	SmartRack
Package Contents	<ul><li>White SmartRack 6U Wall-Mount Rack Enclosure Cabinet</li><li>12 x M6 Screws</li><li>12 x M6 Cage Nuts</li><li>12 x M6 Washers</li><li>2 x Keys</li><li>Owner's Manual</li></ul>
Assembly Required	No
Country of Origin	China
Additional Information	<ul><li>Designed for VoIP closets and education environments where equipment needs to be secure and out of the way</li><li>Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance</li><li>Dual threaded rails</li><li>Ventilated front door and side panels for increased airflow</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	SRW6UW
Certifications & Standards	<ul> <li>UL/CSA 60950-1</li> <li>EIA-310-E</li> </ul>
Manufacturer Website Address	http://www.eaton.com
Static/Stationary Weight Capacity	200 lb
