4PORT USB HDMI SINGLE DISPLAY PP4.0 SECURE KVM
4PORT USB HDMI SINGLE DISPLAY PP4.0 SECURE KVM
Key Features
- Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
- Always-on chassis intrusion detection - renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
- Tamper-evident labels - provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch's internal components
- Non-reprogrammable firmware - prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch's firmware
- Restricted peripheral connectivity - non-authorized HIDs (Human Interface Devices), and video are rejected
- Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
- LED indicators for peripheral filtering and KVM security status
- Strict audio filtration protects against audio leakage.
- Rugged metal enclosure
- True data path isolation - data cannot be transferred between computers
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

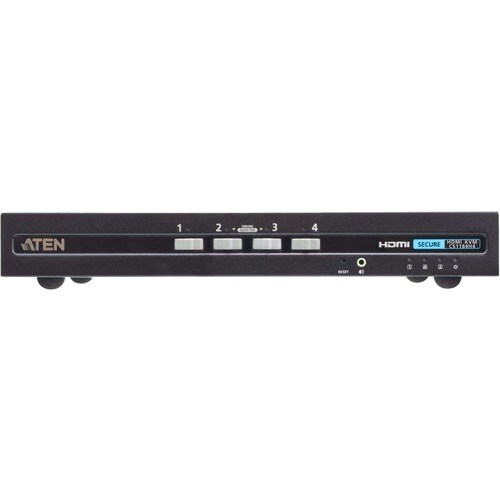

ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS). With multi - layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Tech Specs
| USB | Yes |
|---|---|
| HDMI | Yes |
| Depth | 13.2" |
| Width | 6.5" |
| Height | 1.7" |
| Features | LED Indicator |
| Frequency | 60 Hz |
| Brand Name | ATEN |
| Form Factor | Rack-mountable |
| Manufacturer | ATEN Technology, Inc |
| Product Line | Secure |
| Product Name | 4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant) |
Show all 28 specsShow fewer
| Product Type | KVM Switchbox |
|---|---|
| Input Current | 1 A |
| Product Family | Secure |
| Package Contents | <ul> <li>4-Port USB HDMI Secure KVM Switch (PSD PP v4.0 Compliant)</li> <li>1 x Power Cord</li> <li>1 x User Instructions</li> </ul> |
| Packaged Quantity | 1 |
| Input Voltage Range | 100-240 V |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 5 |
| Weight (Approximate) | 3.88 lb |
| Manufacturer Part Number | CS1184H4 |
| Maximum Video Resolution | 3840 x 2160 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
