ATEN TECHNOLOGIES

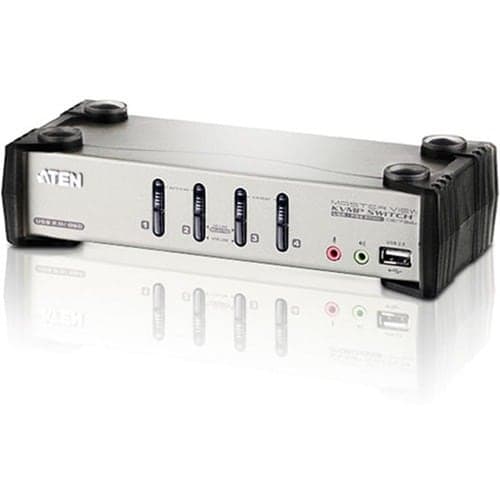

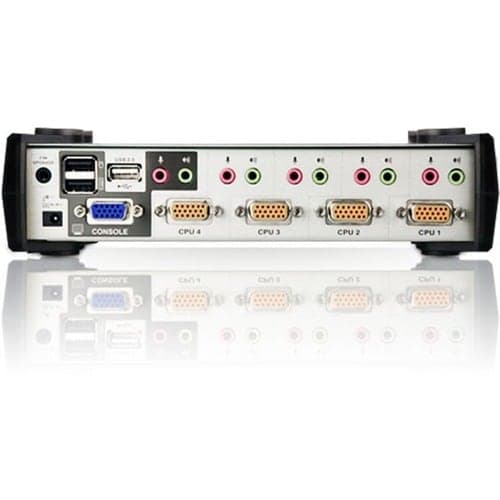

4PORT USB CS1734B KVMP SWITCH (DOES NOT INCLUDE RACK MOUNT)
SKU: T21420VPN: CS1734B
4PORT USB CS1734B KVMP SWITCH (DOES NOT INCLUDE RACK MOUNT)
Key Features
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The CS1734B is a four port KVMP switch combined with a two-port USB 2.0 hub. As a KVM switch, It allow users to access four computers from a single keyboard, monitor, and mouse console. The CS1734B improves the previous design by given the user a choice of either transferring keyboard and mouse data to computer via a usb connection. If usb connection is used integrated two port usb hub is is available for each computer to access any peripherals connected to the hub on a one at a time.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 3.4" |
| Width | 8.3" |
| Height | 2.2" |
| Brand Name | ATEN |
| Graphic Mode | QXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Name | CS1734B 4-Port USB KVMP Switch |
| Product Type | KVM Switchbox |
| Input Voltage | 5.3 V DC |
| Product Model | CS1734B |
| Package Contents | <ul><li>CS1734B 4-Port USB KVMP Switch</li><li>4 x Custom USB KVM Cables</li><li>USB-to-PS/2 keyboard and Mouse Converter</li><li>Firmware Upgrade Cable</li><li>Power Adapter</li><li>User Manual</li><li>Quick Start Guide</li><li>2 x OSD/Hotkey Sticker</li></ul> |
Show all 20 specsShow fewer
| Country of Origin | China |
|---|---|
| Number of USB Ports | 4 |
| Weight (Approximate) | 1.72 lb |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CS1734B |
| Maximum Video Resolution | 2048 x 1536 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 4 |
