ATEN TECHNOLOGIES
4PORT USB 3.0 4K HDMI DUAL DISPLAY KVMP SWITCH
SKU: 8CL180VPN: CS1842
4PORT USB 3.0 4K HDMI DUAL DISPLAY KVMP SWITCH
Key Features
- One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands2
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio focus
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

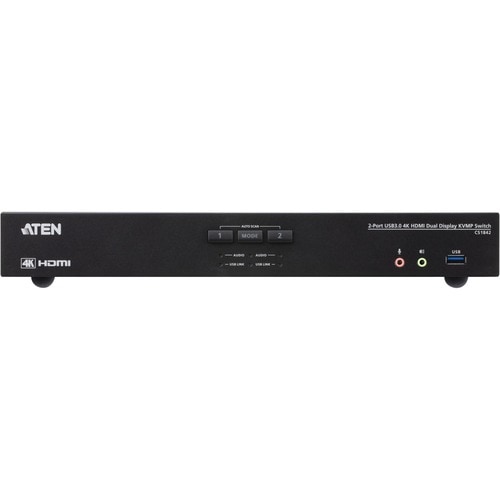

The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology - Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.
Tech Specs
| USB | Yes |
|---|---|
| HDMI | Yes |
| Depth | 6.3" |
| Width | 13.2" |
| Height | 1.7" |
| Brand Name | ATEN |
| Manufacturer | ATEN Technology, Inc |
| Product Name | 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch |
| Product Type | KVM Switchbox |
| Product Model | CS1842 |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>2-Port USB 3.0 4K HDMI Dual Display KVMP Switch</li> <li>4 x HDMI 2.0 Cables</li> <li>2 x USB 3.0 Cables</li> <li>2 x Speaker Cables</li> <li>2 x Microphone Cables</li> <li>1 x Power Adapter</li> <li>1 x Remote Port Selector</li> <li>1 x User Instructions</li> </ul> |
Show all 23 specsShow fewer
| Country of Origin | Taiwan |
|---|---|
| Packaged Quantity | 1 |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 6 |
| Weight (Approximate) | 3.53 lb |
| Manufacturer Part Number | CS1842 |
| Maximum Video Resolution | 4096 x 2160 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 2 |
| Number of Network (RJ-45) Ports | 1 |
