45U RACK ENCLOSURE CABINET NETWORK SERVER DOORS SIDES 3000LBS

SKU: PG0454VPN: SR45UB

In Stock

$2,872.32$1,677.96

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

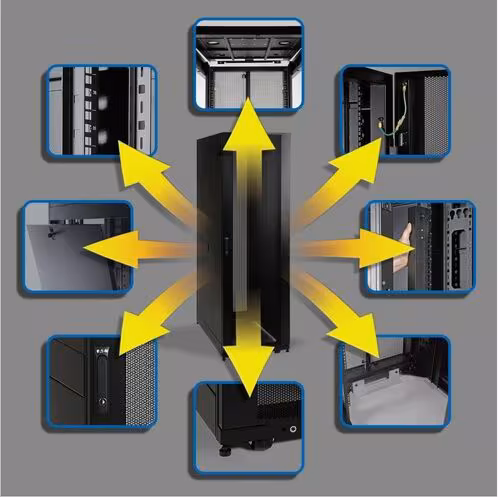

45U SmartRack enclosure with doors and side panels
4 interior vertical posts with unthreaded square hole openings
Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
Ships fully assembled
Massive front to rear ventilation capacity
3000 lb stationary / 2250 lb rolling load capacity
Locking, removable, reversible front and rear doors
Locking, removable side panels keyed alike with doors

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SR45UB features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR45UB houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR45UB provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UB meets all requirements toward PCI DSS compliance.

The top panel of the SR45UB is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR45UB is open-bottom.

All components of the SR45UB are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

To simplify deployment, the SR45UB comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

As part of the SmartRack® family, the SR45UB is compatible with an extensive range of rack-mount accessories, enabling you to customize your solution to meet any requirement.

Tech Specs

45U RACK ENCLOSURE CABINET NETWORK SERVER DOORS SIDES 3000LBS specifications
Depth	43"
Width	23.6"
Height	83.8"
Brand Name	Tripp Lite series
Rack Width	19"
Rack Height	45U
Color Family	Black
Manufacturer	Eaton Corporation
Product Line	SmartRack
Product Name	45U SmartRack Premium Enclosure (Includes Doors and Side Panels)
Product Type	Rack Cabinet
Product Color	Black

Show all 26 specs

Product Model	SR45UB
Product Family	SmartRack
Package Contents	<ul><li>45U SmartRack Premium Enclosure (Includes Doors and Side Panels)</li><li>4 x Side Panels</li><li>4 x Side Panel Locks</li><li>50 x M6 Screws</li><li>50 x M6 Cage Nuts</li><li>50 x M6 Washers</li><li>2 x Door and Side Panel Keys</li><li>Owner's Manual</li><li>Stabilizer Plate</li><li>Mounting Hardware Kit</li><li>Baying Hardware Kit</li></ul>
Units Per Pallet	1
Assembly Required	No
Country of Origin	China
Weight (Approximate)	307 lb
Additional Information	<ul><li>UL60950 Approval</li><li>EIA-310-E Certification</li><li>Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters</li><li>Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient</li><li>Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable</li><li>Compact design allows the enclosure to roll through standard height commercial doorways</li><li>Open bottom for cable access</li><li>Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first</li><li>Pre-installed casters and leveling feet</li><li>Massive front to rear ventilation capacity</li><li>Standard 24" width for optimizing floor space</li><li>4 Interior vertical posts with unthreaded square hole openings</li><li>Top - 4 grommetted holes for cable entry/exit</li><li>Back - 3-in grommetted hole in the panel below the door</li><li>Heavy-duty casters provide stable rolling base for setup or relocation</li><li>Levelers to maintain stability on uneven floors</li><li>Quick release side panels for expansion or maintenance</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	SR45UB
Manufacturer Website Address	http://www.eaton.com
Dynamic/Rolling Weight Capacity	2250 lb
Static/Stationary Weight Capacity	3000 lb
