4-POST RM UPS INSTALLATION KIT SIDE MOUNT DEPTH 16.5-21.5 250LBS

SKU: 3F8604VPN: 4POSTRAILSM

In Stock

$118.44$73.54

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Supports UPS systems in EIA-standard 4-post racks
Supports up to 250 lb.
Compatible with mounting depths of 16.5-21.5 in.
Leaves front and rear mounting holes free for equipment
Includes rack-attachment hardware for square-hole mounting

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

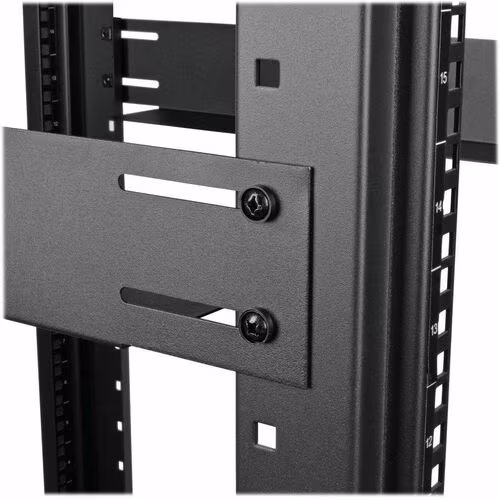

The 4POSTRAILSM 4-Post Rack-Mount Installation Kit supports heavy UPS systems in your EIA-standard four-post rack. The two L brackets mount to the outside edges of the rack's vertical mounting rails - the edges facing the side panels - using the rails' square mounting holes. Attaching the 4POSTRAILSM to the side leaves your front and rear mounting holes free for equipment.

The brackets support up to 250 pounds and are compatible with four-post racks with a mounting depth of 16.5 to 21.5 inches. In addition to UPS systems, the 4POSTRAILSM is compatible with other heavy networking or power protection equipment with a rectangular chassis of 17.5 inches in width. Rack-attachment hardware for square-hole mounting is included.

Tech Specs

4-POST RM UPS INSTALLATION KIT SIDE MOUNT DEPTH 16.5-21.5 250LBS specifications
Brand Name	Tripp Lite series
Manufacturer	Eaton Corporation
Product Name	4-Post Rack-Mount Installation Kit for Select Rack-Mount UPS Systems, Side Mount
Product Type	Rack Mount
Product Model	4POSTRAILSM
Device Supported	UPS
Package Contents	<ul> <li>2 x L Brackets</li> <li>8 x M6 Screws</li> <li>8 x M6 Cup Washers</li> <li>8 x M6 Cage Nuts</li> </ul>
Country of Origin	China
Maximum Load Capacity	250 lb
Manufacturer Part Number	4POSTRAILSM
Manufacturer Website Address	http://www.eaton.com
