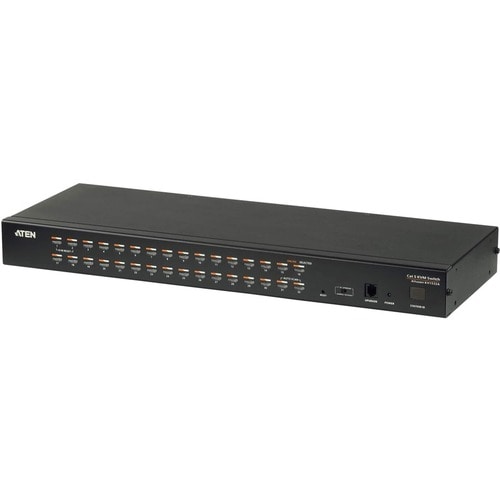

32PORT CAT5 KVM SWITCH

SKU: 2PB550VPN: KH1532A

In Stock

$1,082.00$834.96

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

One KVM console controls up to 32 directly connected computers
Space-Saving RJ-45 connectors and Cat 5e/6 cabling
By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console
Console conversion - any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides
Superior video quality - supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
Configure port access rights for users on a port-by-port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support - PC, Mac, Sun, and serial
Multiple user accounts - supports up to 10 user and 1 administrator accounts
Two-Level password security - supports one administrator and ten user profiles. Password protection prevents unauthorized access to the installation

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console.

These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

ID, port name, OS, keyboard language, and more. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advantages found with these switches includes Full HD video quality and the ability to extend the distance to the servers to up to 50 m* at a resolution of 1280 x 1024.

A KH1532A installation provides one of the best and most economical solutions ATEN has to offer the SMB market. There is no better way to save a data center time, space, and money than with a KH1532A KVM switch.

Tech Specs

32PORT CAT5 KVM SWITCH specifications
USB	Yes
VGA	Yes
Depth	17.2"
Width	6.4"
Height	1.7"
PS/2 Port	Yes
Brand Name	ATEN
Form Factor	Rack-mountable
Rack Height	1U
Manufacturer	ATEN Technology, Inc
Product Line	ALTUSEN
Product Name	32-Port Cat 5 KVM Switch

Show all 33 specs

Product Type	KVM Switchbox
Input Voltage	230 V AC
Product Model	KH1532A
Product Family	ALTUSEN
Network (RJ-45)	Yes
Country of Origin	Taiwan
Packaged Quantity	1
Input Voltage Range	120V AC to 230V AC
Number of USB Ports	2
Number of VGA Ports	1
Number of PS/2 Ports	2
Weight (Approximate)	6.19 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	KH1532A
Maximum Video Resolution	1900 x 1200
Maximum Operating Distance	164.04 ft
Manufacturer Website Address	http://www.aten.com/us/en/
Number of Computers Supported	32
Number of Local Users Supported	1
Number of Network (RJ-45) Ports	32
